ASCOM IP-DECT Base Station Installation Guide

Description
INSTALLATION GUIDE
IP-DECT Base Station and IP-DECT Gateway
Deployment: Bad sync 400 ms blue, 600 ms off,
400 ms blue, 600 ms off,
400 ms yellow.
The IPBS2/IPBS3 is in deployment mode and
does not have adequate air sync coverage.
Deployment: No sync 2000 ms red, 400 ms
yellow.
The IPBS2/IPBS3 is in deployment mode and
has no air sync coverage.
2.2.2 IPBS2/IPBS3 with External Antennas
This section contains the differences between the IPBS2/IPBS3 with internal antenna and the IPBS2/IPBS3
with external antennas. For all other information see 2.2.1 IPBS2/IPBS3 with Internal Antenna, page 5.

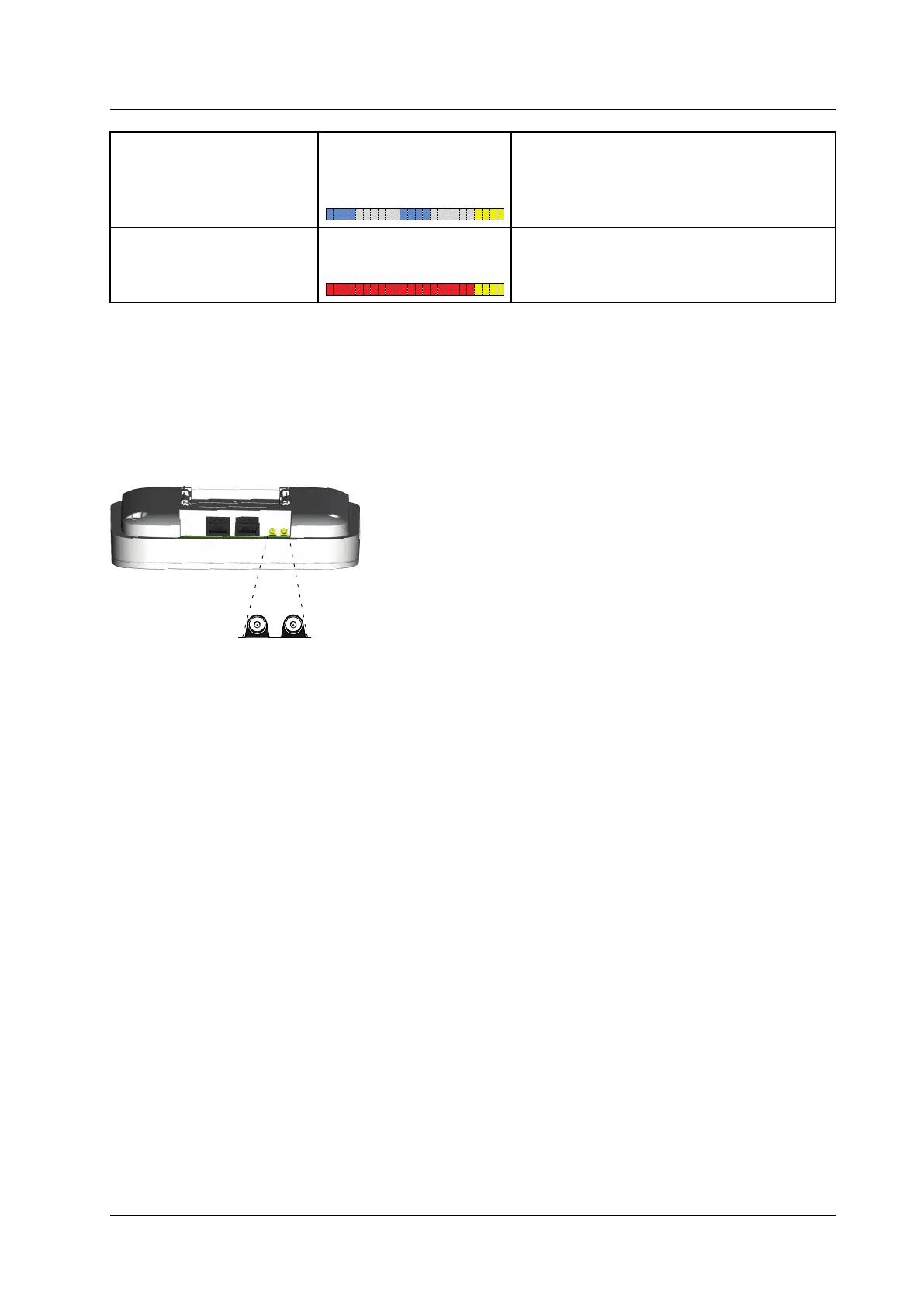

Figure 3. IPBS2/IPBS3 with MCX connectors for external antennas.
Back view while lying down
MCX connectors
Contents of the Box
The box in which the IPBS2/IPBS3 is packed contains:
• An IPBS2/IPBS3 with external antennas
• A mounting bracket
• An antenna bracket
• Two antenna coaxial cables
• Two antennas.
• Four screws with wall plugs
2.3 IPBL
The following versions of the IPBL are available:
• IPBL IP-DECT Gateway VAC/VDC (for 110/230 VAC or 48 VDC)
• IPBL IP-DECT Gateway VDC (for 48 VDC)
7
TD 92989EN / 25 January 2021 / Ver. E
