ASCOM IP-DECT Base Station Installation Guide

INSTALLATION GUIDE
IP-DECT Base Station and IP-DECT Gateway Description
2.4 BS3x0
The following versions are available:
• BS330 with Internal antenna
• BS340 with External antennas

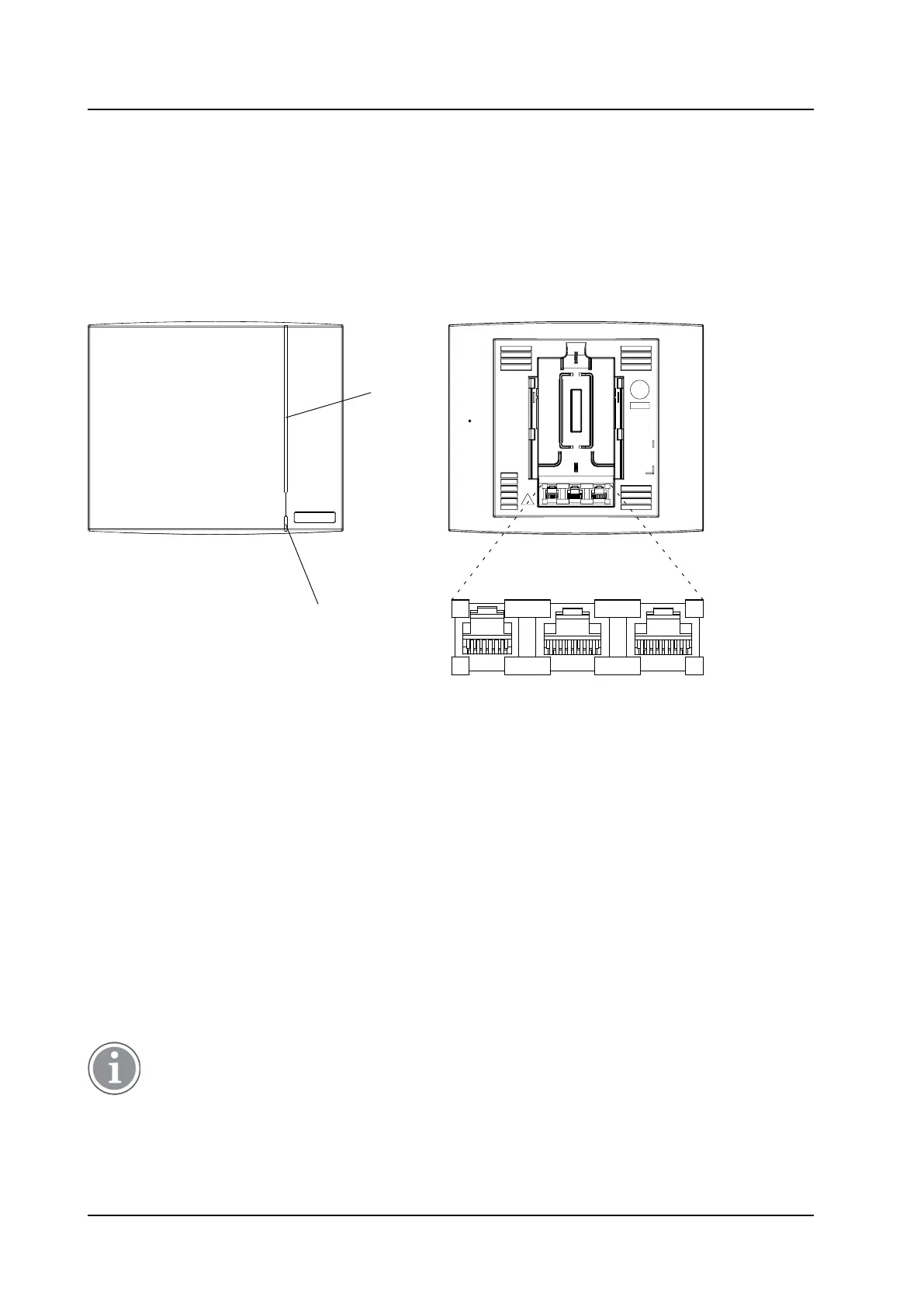

Figure 5. BS3x0 Overview
Test
(RJ12)
Data/Power
(RJ45)
Data/Power
(RJ45)
Front view Back view
LED1
LED2
007
Contents of the Box
The box in which the base station is packed contains:
• A base station
• Two antennas (only base station with external antenna)
• A mounting bracket
• Two screws with wall plugs
Power Distribution
The base station can be powered using the following methods:
• From the IPBL via the Express Powering Pair (EPP) and data pairs
• With a local AC-adapter
For more information about power distribution, see 3.3 Power the Base Station, page 23.
TD 92989EN / 25 January 2021 / Ver. E
10
