Description
INSTALLATION GUIDE
IP-DECT Base Station and IP-DECT Gateway
Software
The software in the DB1 can be updated by downloading new software without disconnecting the
equipment.The new software is stored in flash memory. For information on how to update the software in
the DB1, see the applicable Installation and Operation Manual for the DB1.
Connectors
Two 8-pin RJ45 modular jacks for data and powering
LEDs

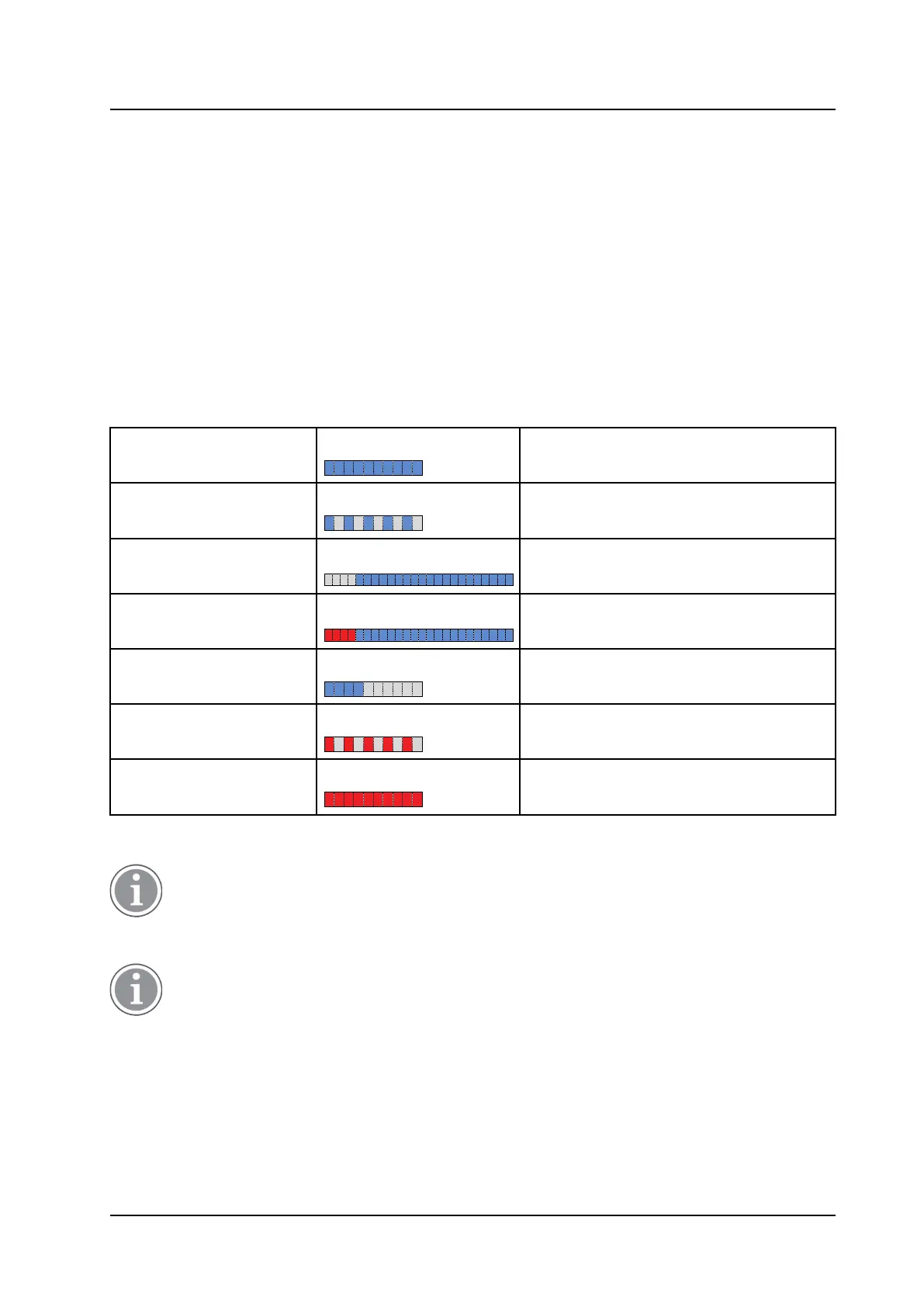

The DB1 has one RGB LED to indicate status. This section describes the different indications and when they
shall be used. In the illustrations below: Each blink pattern is represented by a number of blocks where
each block is 100 ms. Light grey blocks means that the LED is off. Whenever the indication is changed the
new pattern always starts from the first block.
Idle/OK Solid blue.
DB1 operational and no traffic on the DB1.
Starting up 100 ms blue, 100 ms off.
The DB1 is in start-up phase, i.e. waiting to
be initialized by the IPBL.
Active traffic 400 ms off, 2000 ms blue.
DB1 operational and traffic on the DB1.
Fully occupied for speech
traffic
400 ms red, 2000 ms blue.
Fully occupied with traffic.
Software download 400 ms blue, 600 ms off.
Download of firmware in progress.
Error 100 ms red, 100 ms off.
U
PN
layer 1 communication error.
Fatal error Solid red.
Fatal hardware error.
DIP Switches
When connected to IPBL, frequency settings are defined by IP-DECT system and DIP switches are
ignored.
The DIP switches can be found on the back of the DB1, see Figure 6. DB1 Overview, page 12.
DIP switch 3 and 4 shall be set to ON.
Set DIP switch 1 and 2 to ON or OFF as follows:
13
TD 92989EN / 25 January 2021 / Ver. E
