4 - Operations
4 OPERATIONS

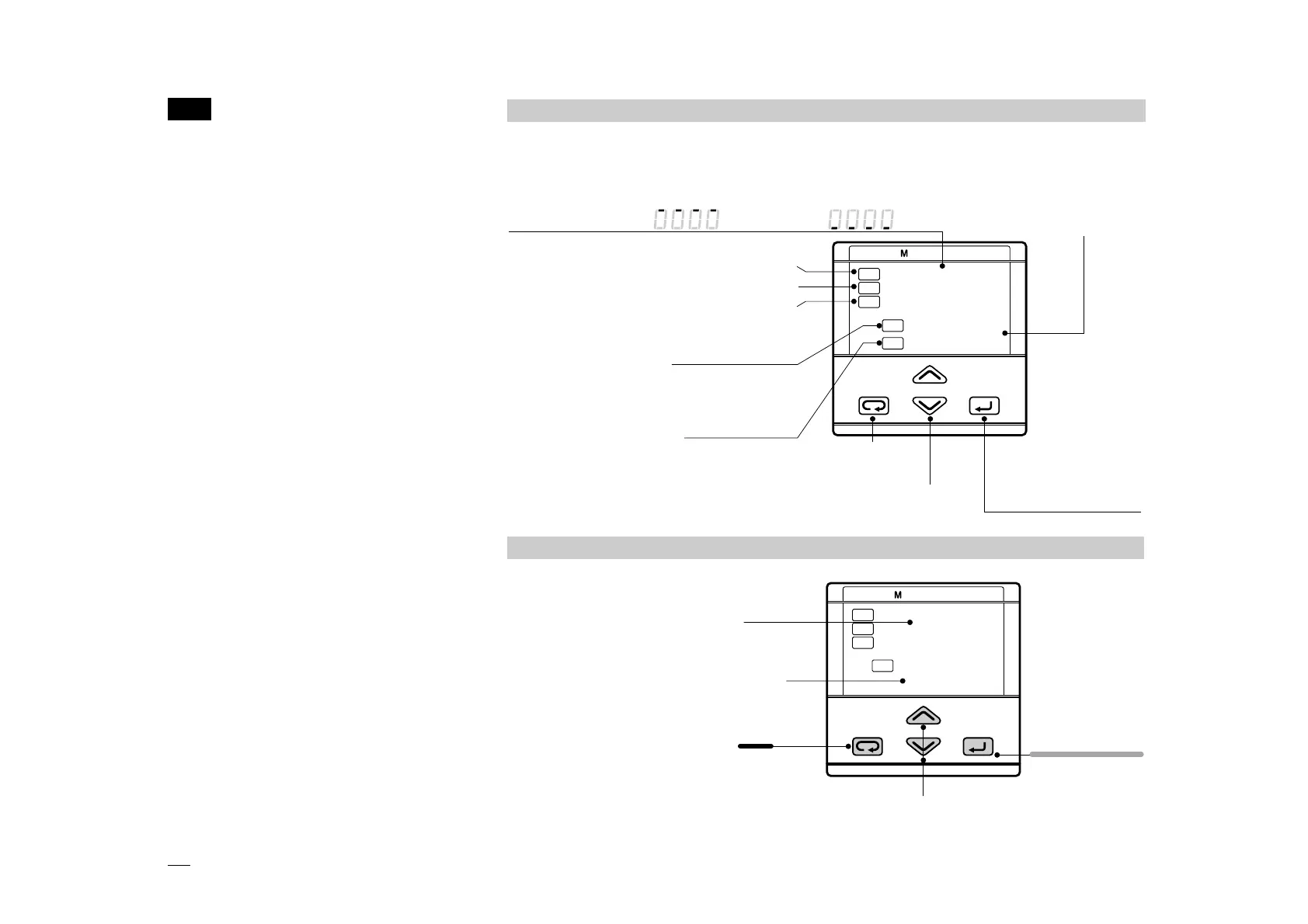

4.1.A KEYS FUNCTIONS AND DISPLAY IN OPERATOR MODE
274.8
275.0
1
2
3
MAN
Setpoint
setting
OP1 output ON
OP2 output ON
OP3 output ON
Menu
access
Enter key for
selection and
value setting
confirmation
PV control input
in engineering
units
Operating
Setpoint
Tune running
(green):
blinking
Output status
LEDs
(red):
When the measured
value is greater than
sensor high range
3
When the measured
value is less than the
sensor low range
RUN
Start-up/Timer
running (green)
Values
modification
Enter key for
selection and
value setting
confirmation
Access to the
menu for:
- configuration
- parameter setting
Parameter value
Parameter mnemonic
35.0
p.b.
1
2
3
A / M
3
4.1.B KEYS FUNCTIONS AND DISPLAY IN PROGRAMMING MODE
