ascon M3 Series User Manual

7
1 - Installation

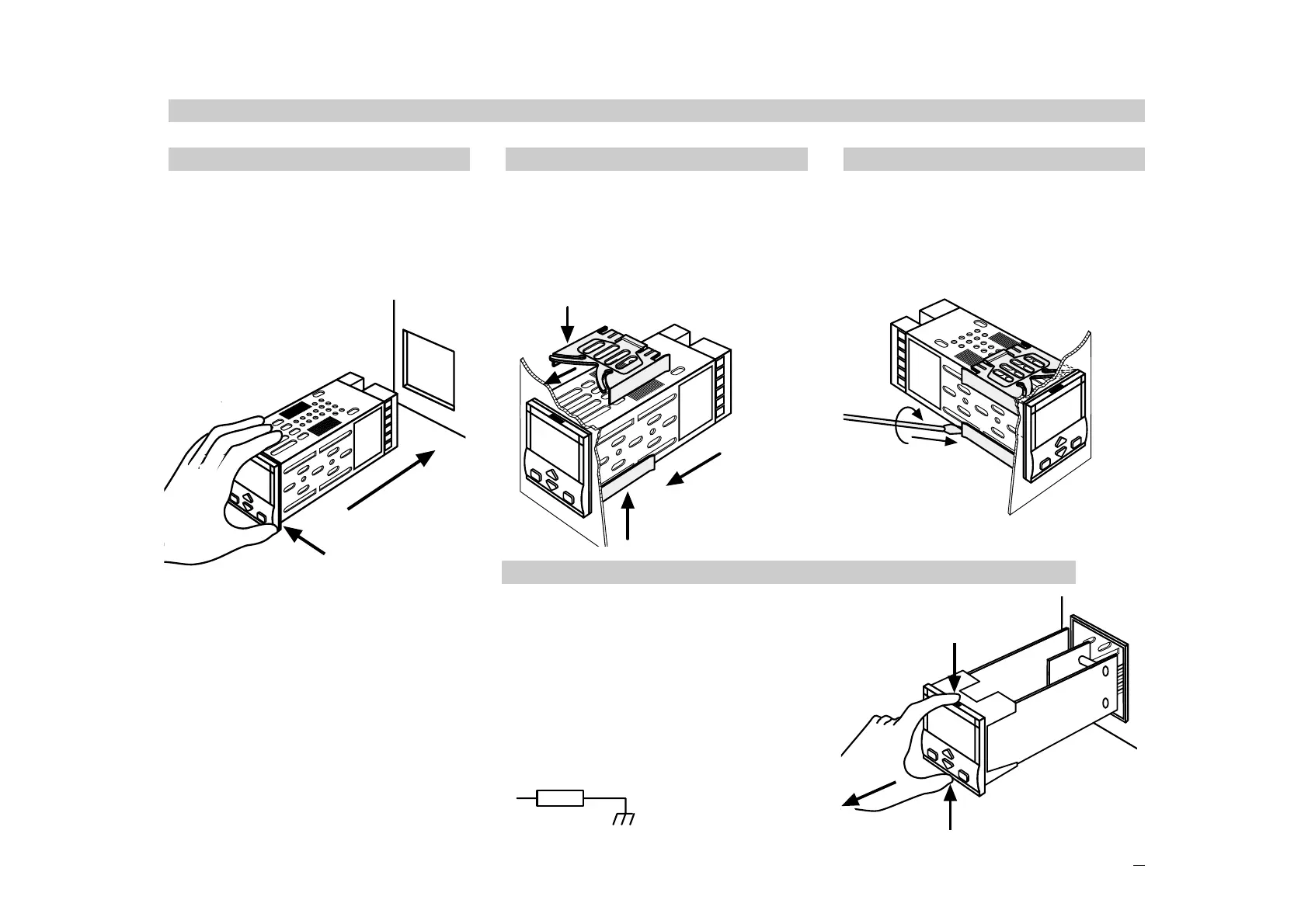

1.5.1 INSERT THE INSTRUMENT
1 Prepare panel cut-out
2 Check front panel gasket posi-
tion
3 Insert the instrument through
the cut-out
UL note
[1] For Use on a Flat Surface of
a Type 2 and Type 3 ‘raintight’
Enclosure.
1.5.2 INSTALLATION SECURING
1 Fit the mounting clamps
2 Push the mounting clamps
towards the panel surface to
secure the instrument
1
3
2
1.5.3 CLAMPS REMOVING
1 Insert the screwdriver in the clips
of the clamps
2 Rotate the screwdriver
1
2
1.5.4 INSTRUMENT UNPLUGGING
B
1 Push and
2 pull to remove the instrument
Electrostatic discharges can dam-
age the instrument
Before removing the instrument the
operator must
discharge himself
to ground
1
2
1
1MΩ
1.5 PANEL MOUNTING [1]
1
1
1
2
