4 - Operations

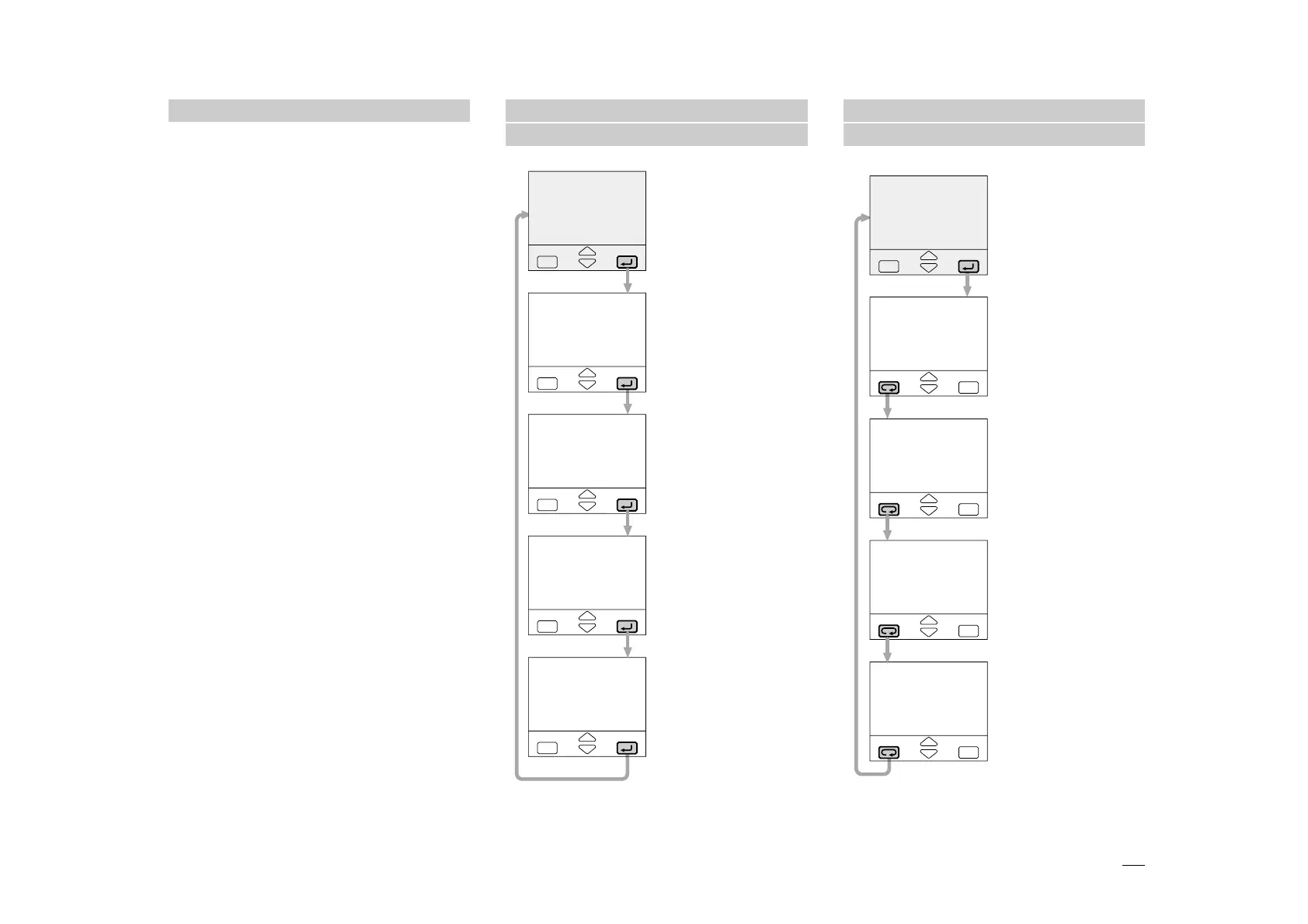

4.2 DISPLAY
During the operation, the para-
meters values cannot be modi-
fied by the user
4.2.1 OF THE
PROCESS VARIABLES
4.2.2 OF THE CONFIGURATION
CODES
°C
275..0
274.8
°C
274.8
Out
63.4
t.Cur
47
tM.r.
33
Operator mode
Engineering
units [1]
OP1
output [2]
Load
current [3]
Timer
remaining
time [4]
Note
[1] See table page 37
[2] This display is not presented if the
instrument has been configured as
an On - Off controller
[3] Value in Ampere. Only with CT
option (see page 34)
[4] Only with Timer option selected
(see page 41)
°C
274.8
275..0
274.8
Hard
3150
Conf
2002
rel.
00A
Operator
mode
Engineering
units [1]
Basic
product code
(see page 16)
Configuration
code
(see page 18)
Software
release
Example:
M3 - 3150 - 2002 / Release 00A
