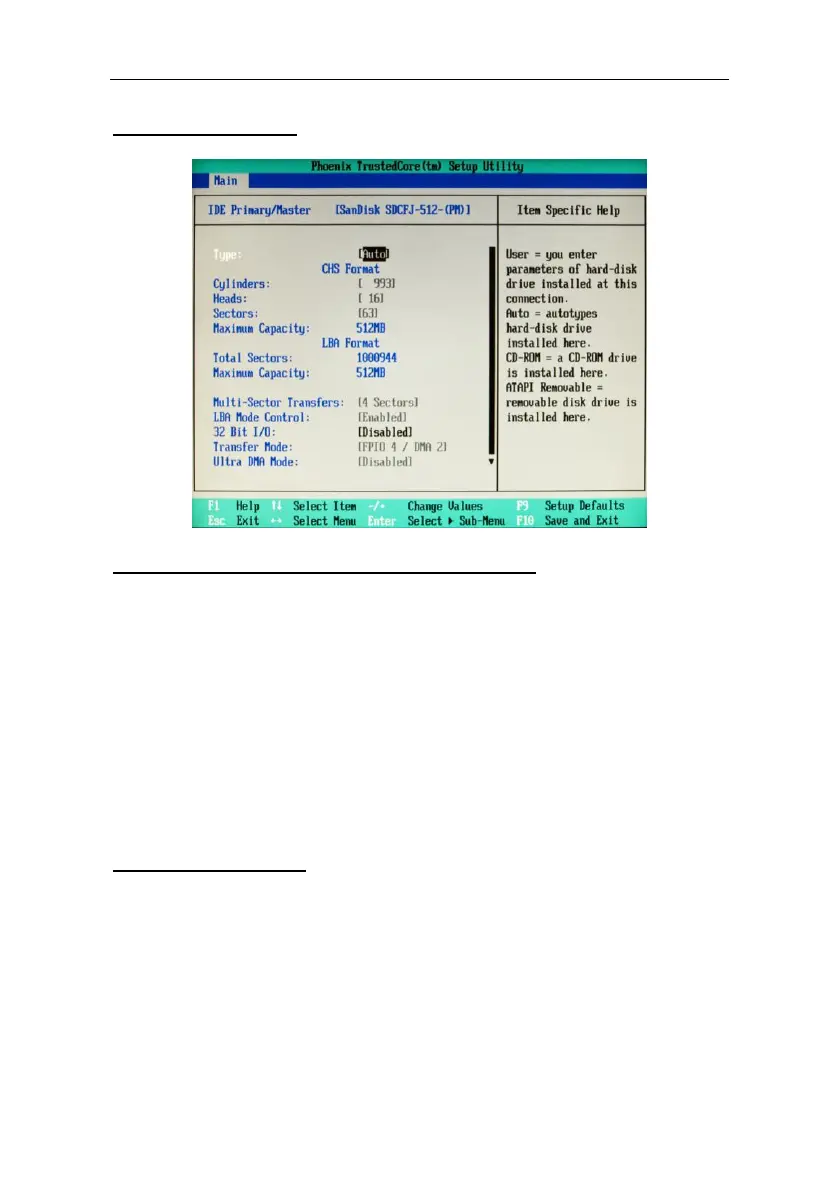

IDE Primary/Master
IDE Channel 0 Master [recommended AUTO]
Multi-Sector Transfers
• Determines the number of sectors that the disk can access at the
same time
LBA Mode Control
• LBA (Logical Block Addressing) must be activated for disks with a
capacity of more than 528MB.
32 Bit I/O
• This setting enables or disables 32 bit IDE data transfer .
Transfer Mode
• Determines method of data transfer from or to drive.
Ultra DMA Mode
• Determines the Ultra DMA data transfer mode.
IDE Channel 0 Slave
Multi-Sector Transfers
• Sets the number of sectors that the disk can access at the same
time
LBA Mode Control
• LBA (Logical Block Addressing) must be activated for disks with a
capacity of more than 528MB.
32 Bit I/O
• This setting enables or disables 32 bit IDE data transfer .
