ASEM CPU 1021/A - External Connectors Overview

Connectors
Asem S.p.A. 25
J31
Connector parallel interface
J32
Connector LPC (testing)
J33
Connector for power supply for mass memory units
J34
Connector for power supply for mass memory units
J35
Connector for power supply for mass memory units
J36
reserved
J37
Connector power supply ATX
J38
Connector power button solder side
J39
Connector power button
J40
Connector aux. +12V Power supply

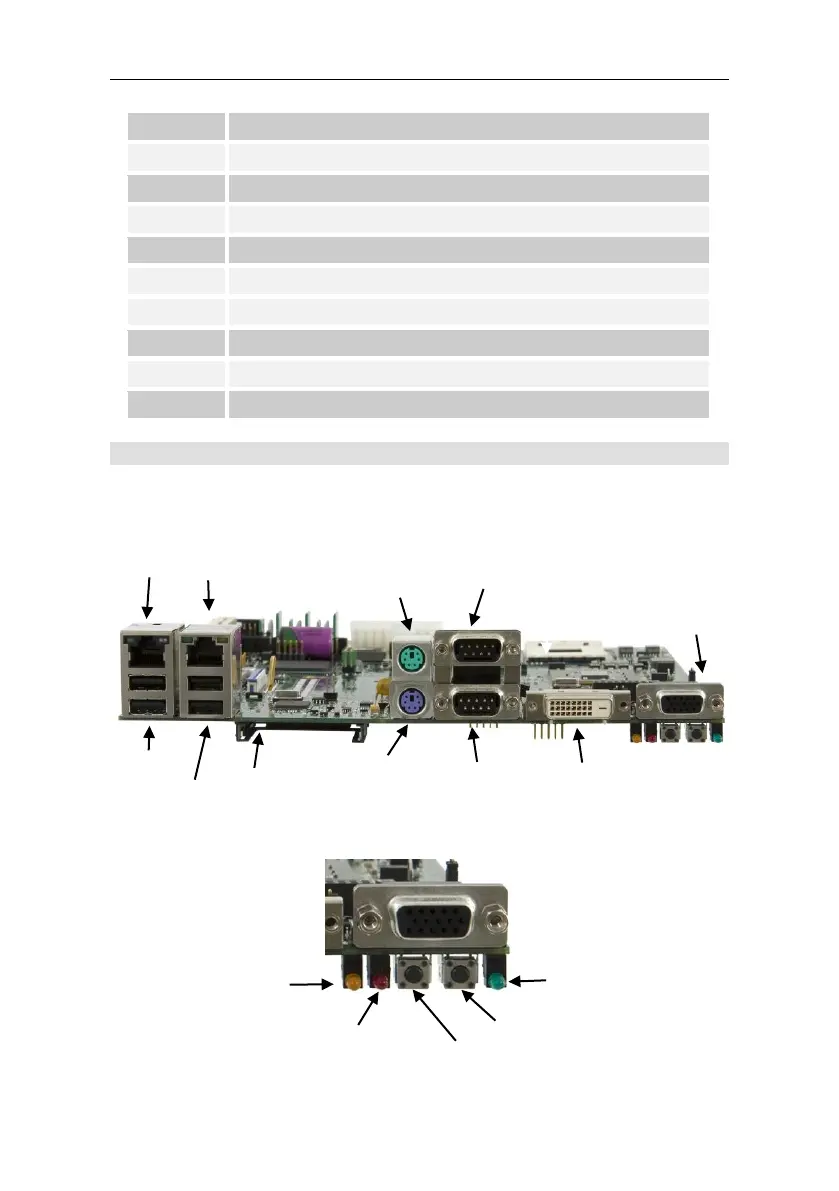

External connectors
The CPU 1021/A is equipped with the following connectors / external
controls:
VGA
reset CPU
reset Watch-dog
Keyboard
HD activity LED
LED power supply present
Mouse PS/2
LAN2
LAN1
COM1
COM2
USB0-1
USB2-3
Housing for
Fieldbus
modules
Watch-dog activity LED
DVI-D
