ASG, Division of Jergens, Inc.

Page 12 of 23

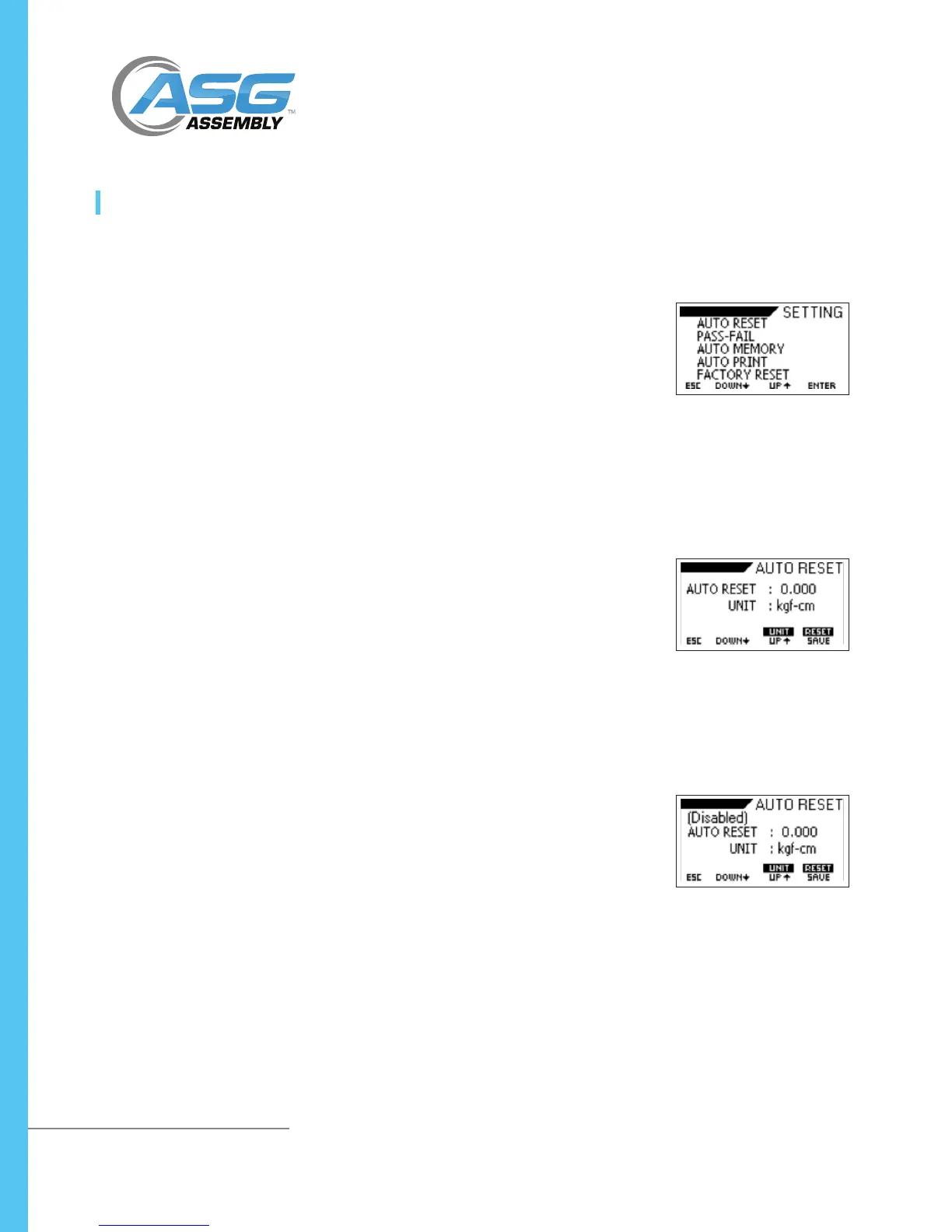

• Press and hold the MENU key to access the main menu. Use the UP or DOWN

arrow keys to move the cursor to SETTING and press ENTER.

• To move between the options listed on the setting page, use the UP or DOWN

arrow keys to move the cursor. The options on the setting page are auto reset,

pass-fail, auto memory, auto print and factory rest.

• Press ENTER to select the sub-menus, activate feature and enter values. Within

sub-menus the UP and DOWN arrow keys will also change numerical values.

• Press MENU/ESC to return to the setting menu page

The Auto Reset feature is used to automatically reset the reading value in peak

mode. This mode works when the reading value is higher than the setting value,

causing the peak value to change to a new held value. The user does not need

to press the RESET key, since the peak value will automatically reset. This feature

works in peak mode only. If this feature is activated, the icon “AR” will display on

main display.

• To access the Auto Reset menu, press and hold the MENU key to access the main

menu. Use the UP or DOWN arrow keys to move the cursor to SETTING and press

ENTER. Use the UP or DOWN arrow keys to move the cursor to AUTO RESET and

press ENTER.

• The display will show the set auto-reset menu page. Press the MESU/ESC key

to return the settings page.

• Use UP and DOWN keys to change the value. Press and hold UP key to

change units. Press SAVE to set new value and return to setting menu. Press

and hold SAVE key to reset value to zero to set a new value. Press ESC to

return to setting menu.

• Select a reset value 10% of the expected torque reading on the tool being

tested to avoid erroneous readings

• Auto Reset feature will automatically be disabled if you set AUTO RESET = 0

or Auto Memory feature is on

• Press and hold the RESET/SAVE key to reset to zero

• Function of button will change depending on the menu

Setting

Auto Reset

Main Menu (Continued)

DTT Series Digital Torque Testers

User Manual
