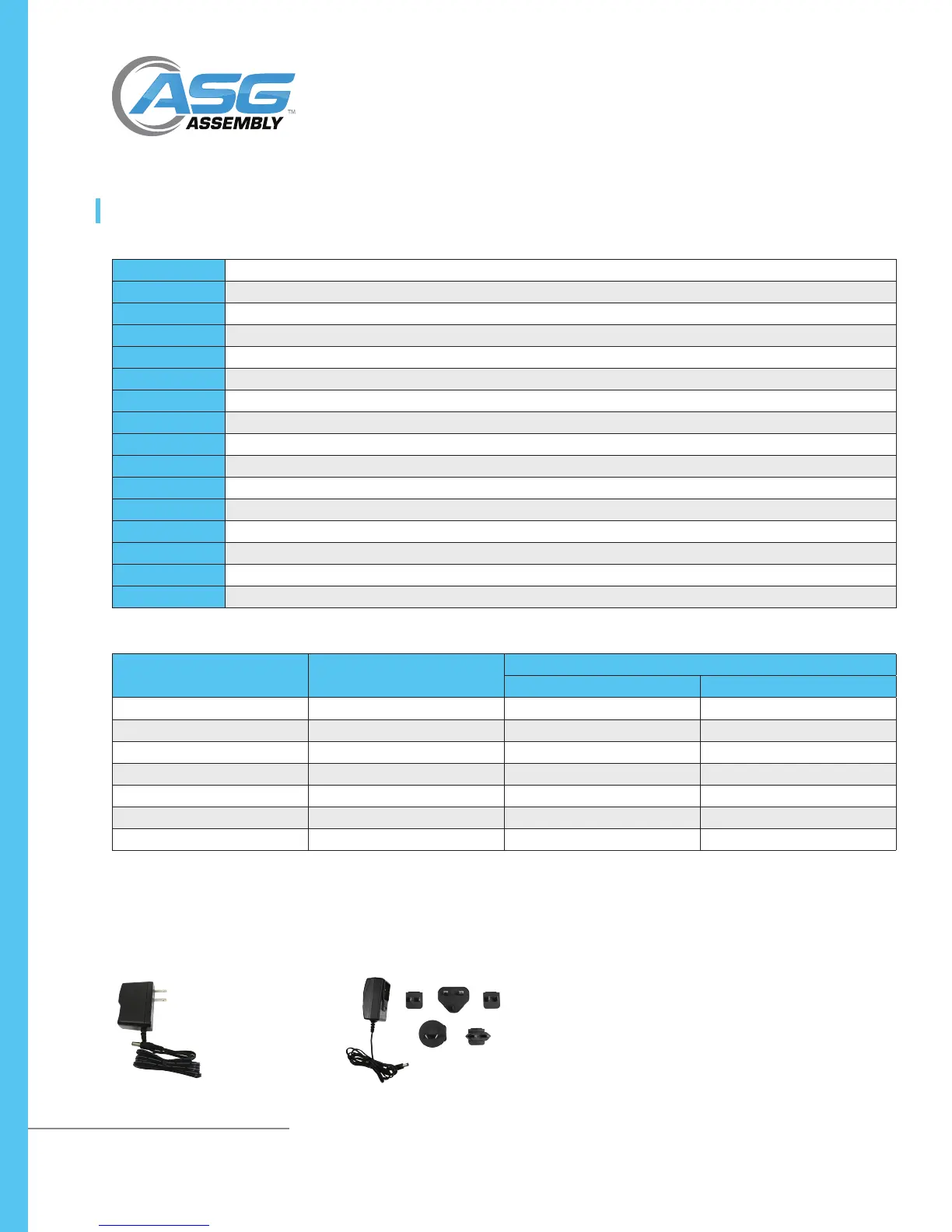

System Overview (Continued)
Model DTT-5, DTT-10, DTT-30, DTT-50, DTT-100, DTT-200, DTT-500
Size 7.12” x 4.4” x 2.0” (180mm x 111mm x 50mm); Size with Mounting Plate*: 8.625” x 4.4” x 2.19” (219mm x 111mm x 56mm)
Weight 5 lb (2.3 kg) Weight with Mounting Plate*: 6.8 lb (3.1 kg)
Display Graphics LCD Display Size 128x64 dots
Battery 17 hour battery life (NiMH 7.2/v Rechargeable)
Battery Charger 110-120 VAC 60 Hz 12W input, 12 VDC 500ma output (Optional International Charger Available: 220-240 VAC input, ASG # 915966)
ADC 16 Bit
CPU 8 Bit
Communication Mini USB to USB, RS-232
Key Button 4 Buttons
Unit of Measure 6-7 User Selectable Torque Units (Depending on Model)
Mode of Measure 3 Modes: Track, Peak, and First Peak
Display Digits 6 Digits Maximum
Special Function Auto Reset, Auto Memory, Auto Zero, Real Time Clock, Pass/Fail, Statistics, Torque Bar, Battery Indicator and Charging Status, Transducer State
Memory 500 Readings with Alarm when Full
Accuracy ± 0.2% of Full Scale
DTT Series Digital Torque Testers
User Manual
Model Number ASG Number
Torque Range
lbf.in N.m
DTT-5 66700 0.5 - 5.0 0.06 - 0.56
DTT-10 66701 1.0 - 10.0 0.11 - 1.13
DTT-30 66702 3.0 - 30.0 0.33 - 3.4
DTT-50 66703 5.0 - 50.0 0.56 - 5.6
DTT-100 66704 10.0 - 100.0 1.13 - 11.3
DTT-200 66705 20.0 - 200.0 2.3 - 22.6
DTT-500 66706 50.0 - 500.0 5.6 - 56.5
* DTT-200 and DTT-500 come with mounting plate
Battery Charger
110-120V US Power Adapter
(Supplied) ASG #66608
220-240V International Power Adapter
(Optional, Must Order Separately)
