Page 9 of 23

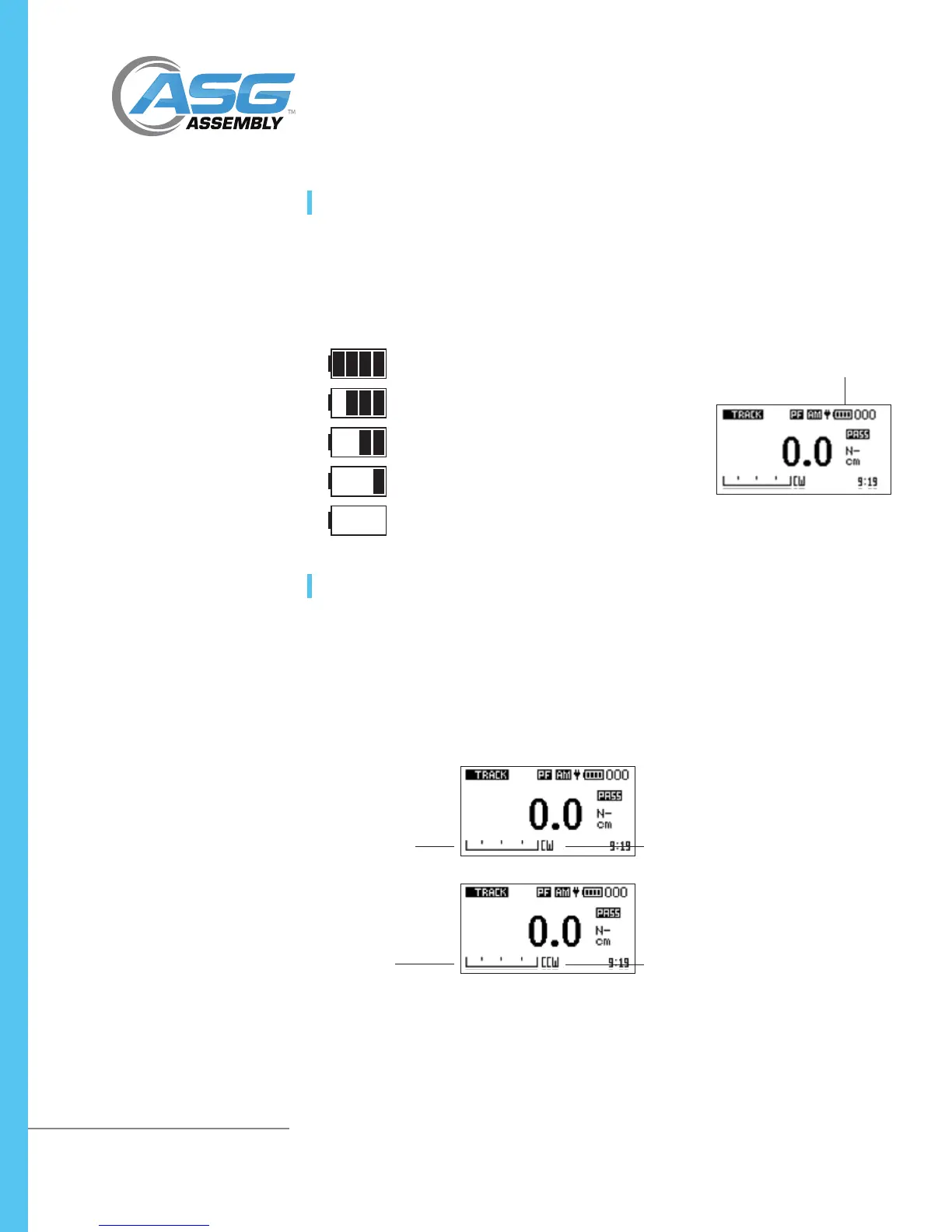

Battery Indicator
Basic Function
Display of Clockwise/Counter-Clockwise
Battery Basic Function
TRACK
0.003
kgf.cm
CW
005
TRACK
0.003
kgf.cm
CCW
005
F-PEAK
0.003
kgf.cm
CCW
005
PEAK
0.003
kgf.cm
CCW
005
Battery Level > 8.00V
7.99V > Battery Level > 7.60V
7.59V > Battery Level > 7.30V
7.29V > Battery Level > 7.00V
Battery Level < 7.00V
If the battery level is less than 6.9 V, the “Battery Empty” message will be displayed and the tester
will power down automatically. When battery charger is connected and battery is charging, the
plug icon will blink. Charging time is about 2.3 hours for full charge. NOTE: Only use the 12V
power adapter/charger supplied.
Clockwise torque is displayed on the DTT and recognized by the symbol “CW.” Counter-clockwise
torque is displayed on the DTT and recognized by the symbol “CCW.”
Clockwise symbol
Charging symbol
Load indicator bar
for clockwise
Load indicator
bar for counter-
clockwise
Counter-clockwise symbol
A load indicator bar alerts the operator as to how much torque load is being applied to the
transducer as related to its full scale rating.
