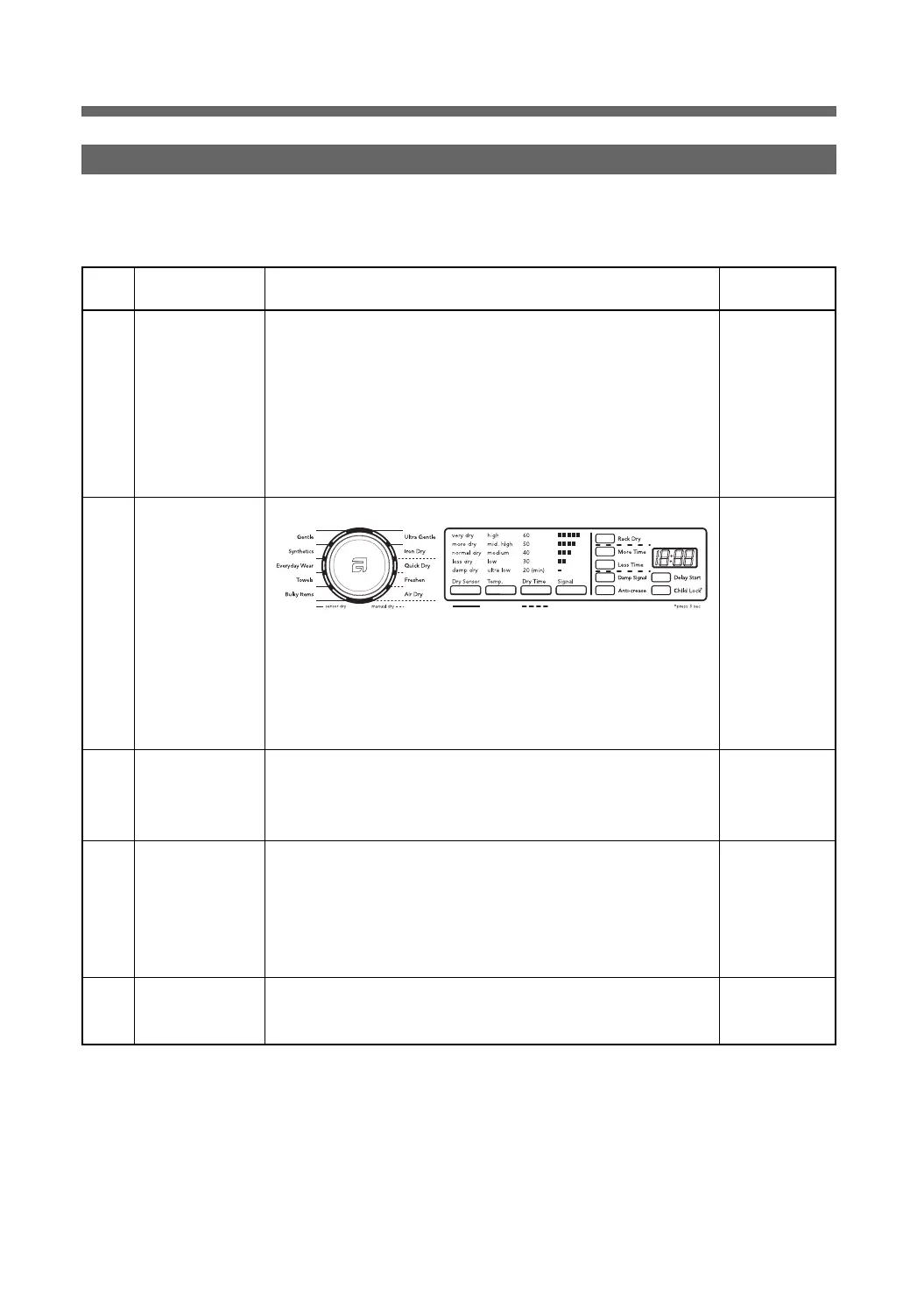

PCB Function Specification
No.
1
2
3
4
5
Index
Features of the
dryer
Course and
Operation
Adopted sensors
Load control
Display
Descriptions
1. Applied model: dryer for use in U.S. & CANADA.
2. Power source: ELECTRIC / LNG / LPG
3. Heating type: HEATER / GAS
4. Voltage: PCB & MOTOR 120V 60Hz / HEATER 240V 60Hz
5. PCB type: Front PCB (shared with other models)
Main PCB (3 types) : ELECTRIC, GAS ON/OFF CONTROL,
GAS PROPORTIONAL CONTROL
1. Sensor drying courses - 7
Manual drying courses ā 3
2. Setting - 7
1. Humidity sensor
2. Temperature sensor: at the duct outlet
1. Motor
2. ELECTRIC HEATING : HEATER 2.5KW 2UNIT
3. GAS VALVE : ON/OFF CONTROL / PROPORTIONAL CONTROL
1. Course and operation display : Lamp LED + 18:88
Miscellaneous
Comprehensive function specification of the unit including operation of a 27-inch dryer by drying courses and drying
functions, control of electronic devices by PCB, operation by S/W, test function, error mode, and so on.
1. Front PCB Function Specification
