78
3. Door lock ass'y: Separate door lock ass'y after removing 2 screws.

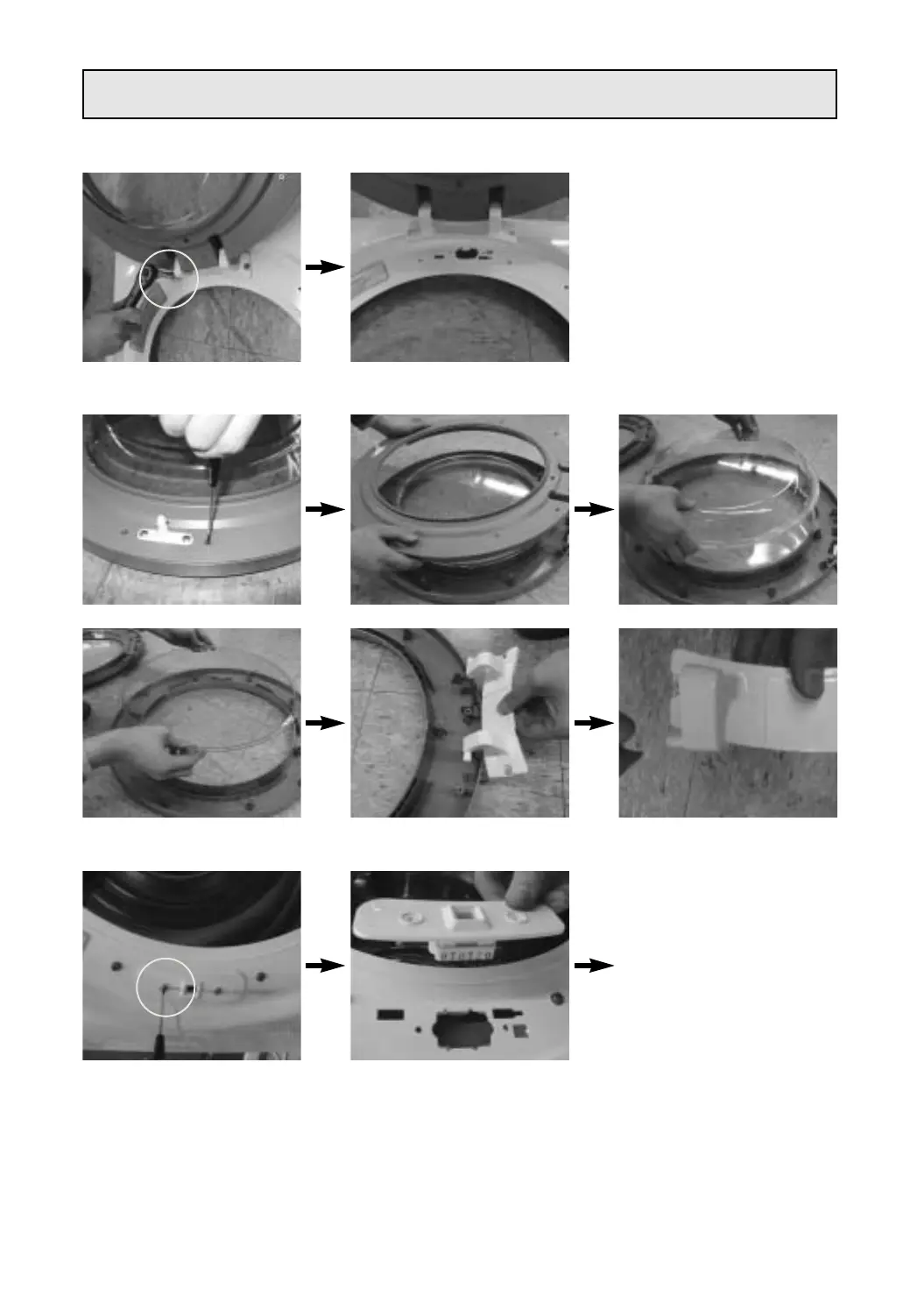

DOOR ASS'Y
1. Separation of hinge and support drum front: Remove 2 screws.
2. Remove 13 screws.
