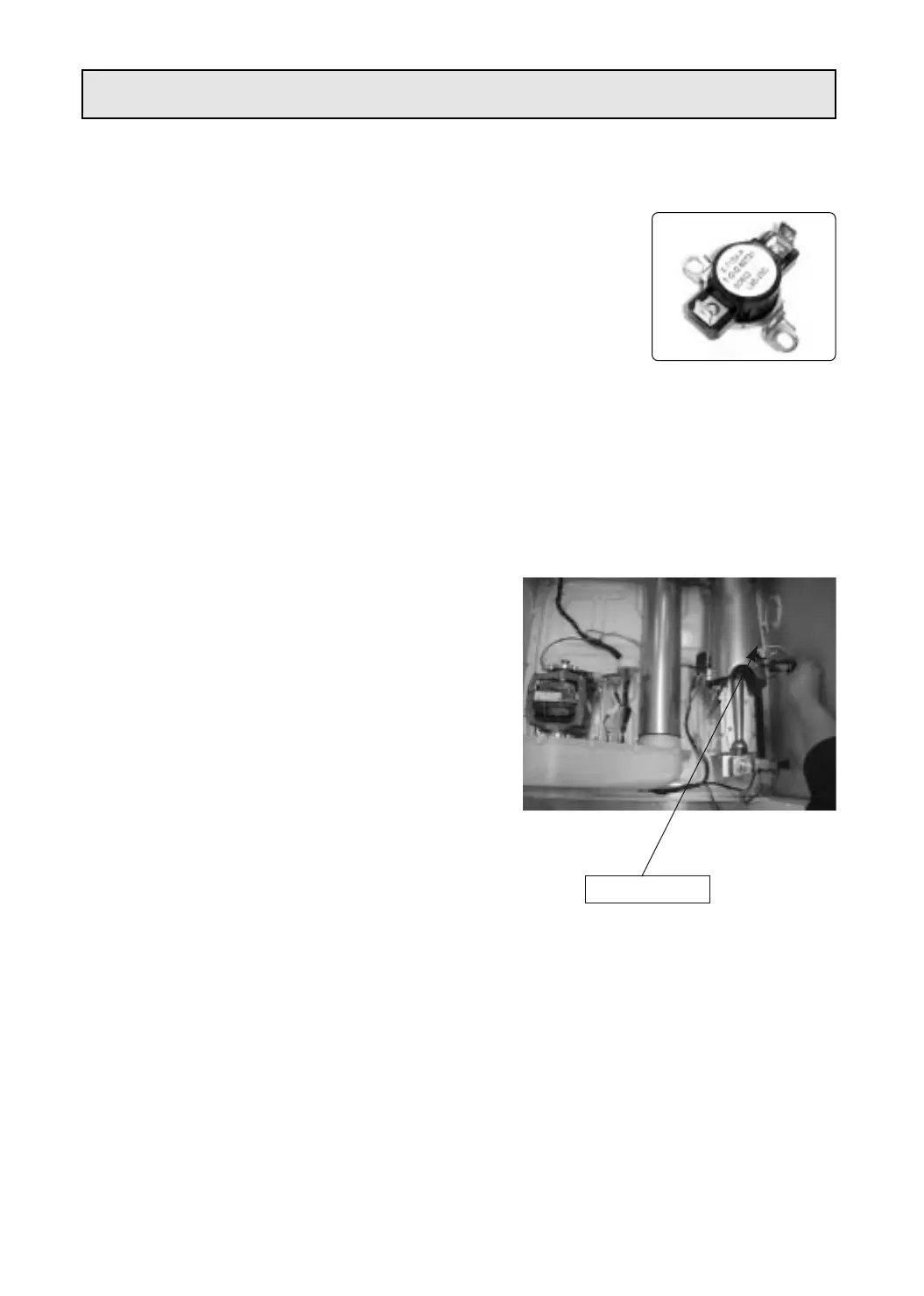

Thermostat Hi-Limit
1. Function
• This is a bimetal-type switch which stops the burner overheating.
• If the burner is too hot, this thermostat shuts off the gas valves and after the
burner is cooled down, it allows the gas valves to operate.
2. Specification
• A bimetal thermostat with the terminals normally connected
• Electric rating : 25A at 125V
• Opening temperature : 95°C, Closing temperature : 70°C
• Type name : 60T21
3. Checking method of mal-function
• After operating air dry program for 5 minutes or longer, the terminal status of this part must be short.
• Part is defective and to be replaced if resistance between terminals measured after separating cables
connected to sensor flame is 1
Ω
or more.
4. Procedure of replacement
1 Remove plate top.
2 Remove panel F ass'y.
3 Remove cabinet front ass'y.
4 Remove frame upper.
5 Remove drum ass'y.
6 Check attachment position.
7 Separate the connected cable and unfasten 2
screws to separate parts.
8 Assemble part in reverse order of the above
procedures.
Part Code : 3619047610
Thermostat-Limit
