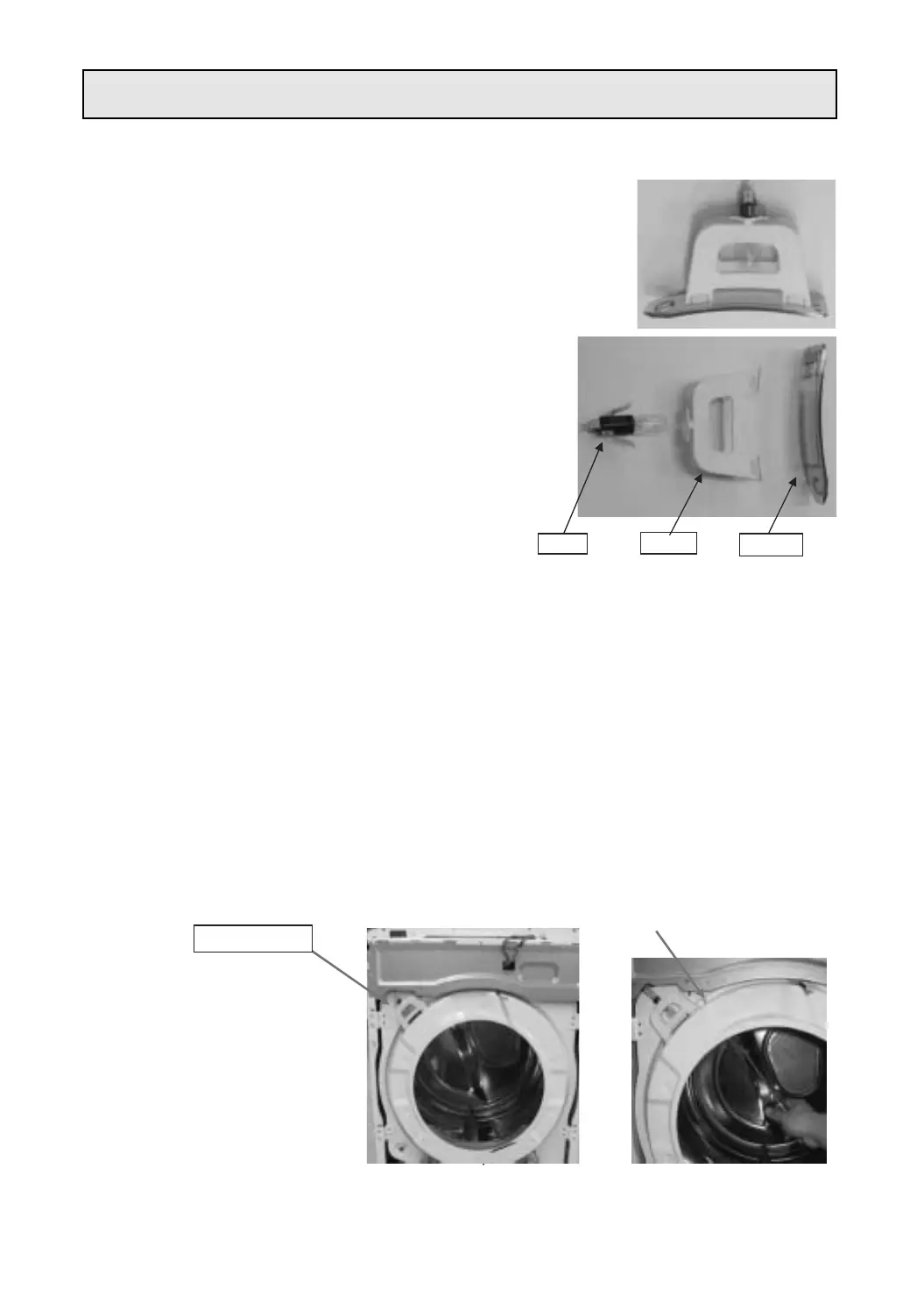

Lamp Assembly
1. Function
• This is a lamp assembled with its bracket and window.
• If the user opens the door, the door switch gives electric power to this
lamp and it turns on.
2. Specification
• An assembly of an electric lamp, bracket and window.
• Power consumption : 15W at 120V
• Type name : TGE-12015L
3. Checking method of mal-function
• The lamp is turned on when the door is opened.
• Run the dryer by pressing the power and start buttons.
• As the drum begins rotating, check if the lamp is turned on after opening the door.
Cf) If the drum does not rotate, check the door switch, belt switch, and thermostat fan.
• If the lamp is still off, remove panel f ass’y and check if 120v voltage is applied to the lamp.
• If the lamp is off even though the 120v voltage is being applied, replace the lamp.
Cf) If 120v voltage is not applied to the lamp, replace the door switch.
4. Procedure of replacement
1 Plate Top remove
2 Panel F Ass'y remove
3 Cabinet Front Ass'y remove
4 Remove the wires and screws to disassemble the part.
5 Assemble the parts in reverse order.
7 Remove the wires and screws to disassemble the part.
8 Assemble the parts in reverse order.
Part Code : 3612625300
Lamp Braket
Window
Lamp Ass'y
