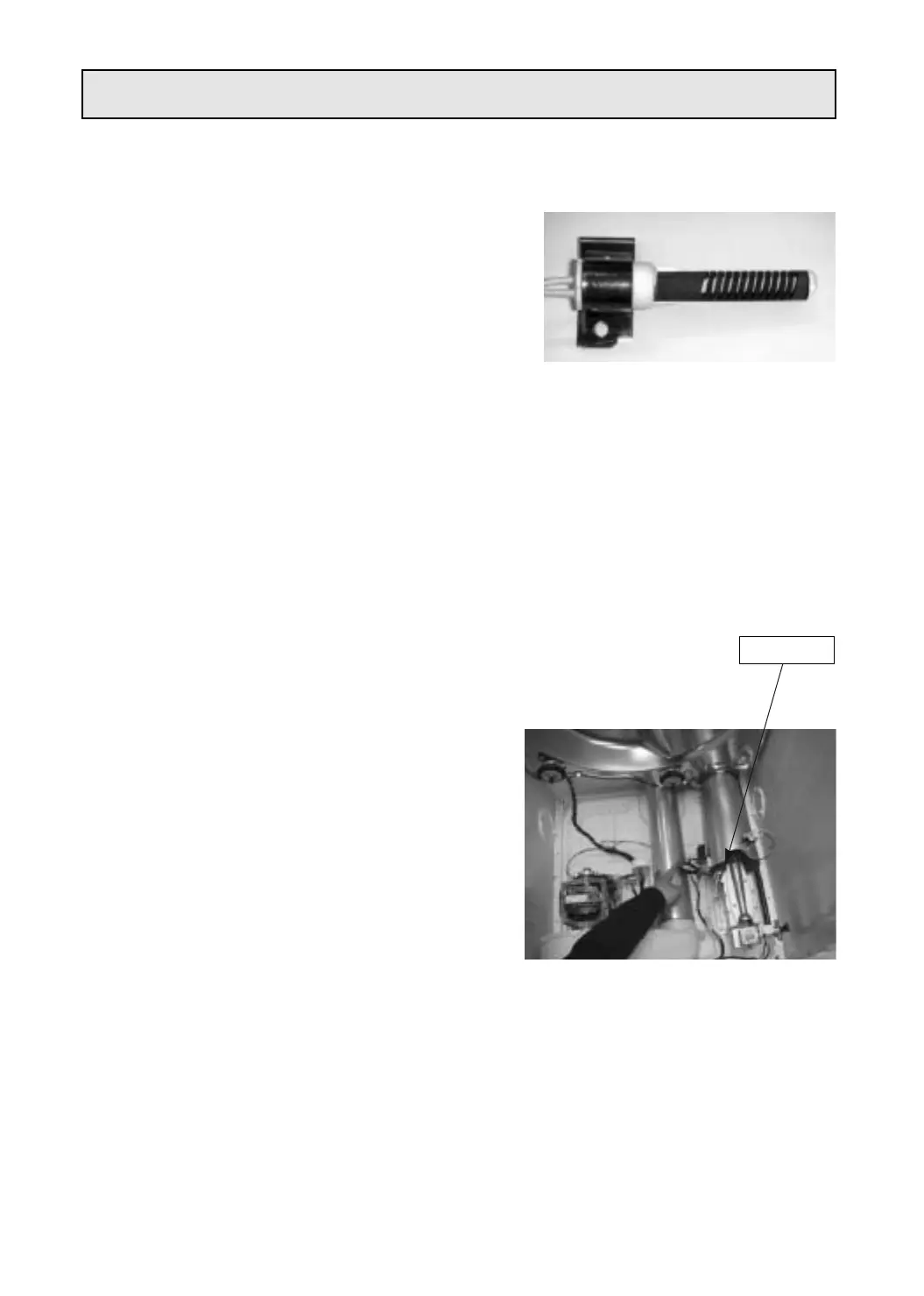

Igniter As
1. Function
• Igniter for fuel gas ignition.
• Igniter heats up quickly when power is supplied. If fuel gas is
injected to the surrounding area of igniter, gas is ignited by
the heat of igniter.
2. Specification
•
A heating element made by Silicon Carbide
•
Electric rating : 120V 4.0A (steady-state current)
•
Temperature rating : reaches 1800"within 30 seconds
•
Type name : DC033
3. Checking method of mal-function
• Igniter is heated up to very high temperature. Therefore, extreme caution is required in handling to
prevent burn.
• At room temperature, resistance between two terminals of this part is generally between 300~400
Ω
• Part is defective if resistance between terminals measured after separating cable connected to igniter is
250
Ω
or less.
• Part is defective if cracks are found when separating igniter and closely observing the surface.
• In two of the above conditions, igniter is defective, therefore needs to be replaced.
4. Procedure of replacement
1 Plate Top Remove
2 Panel F Ass'y Remove
3 Cabinet Front Ass'y Remove
4 Frame Upper Remove
5 Drum Ass'y Remove
6 Cover Fan Remove
7 Separate the connected cable and unfasten 1 screw
to separate parts.
8 Assemble part in reverse order of the above
procedures.
Part Code : 36189L5800
Laniter As
