Asko TL751 - Page 61

60

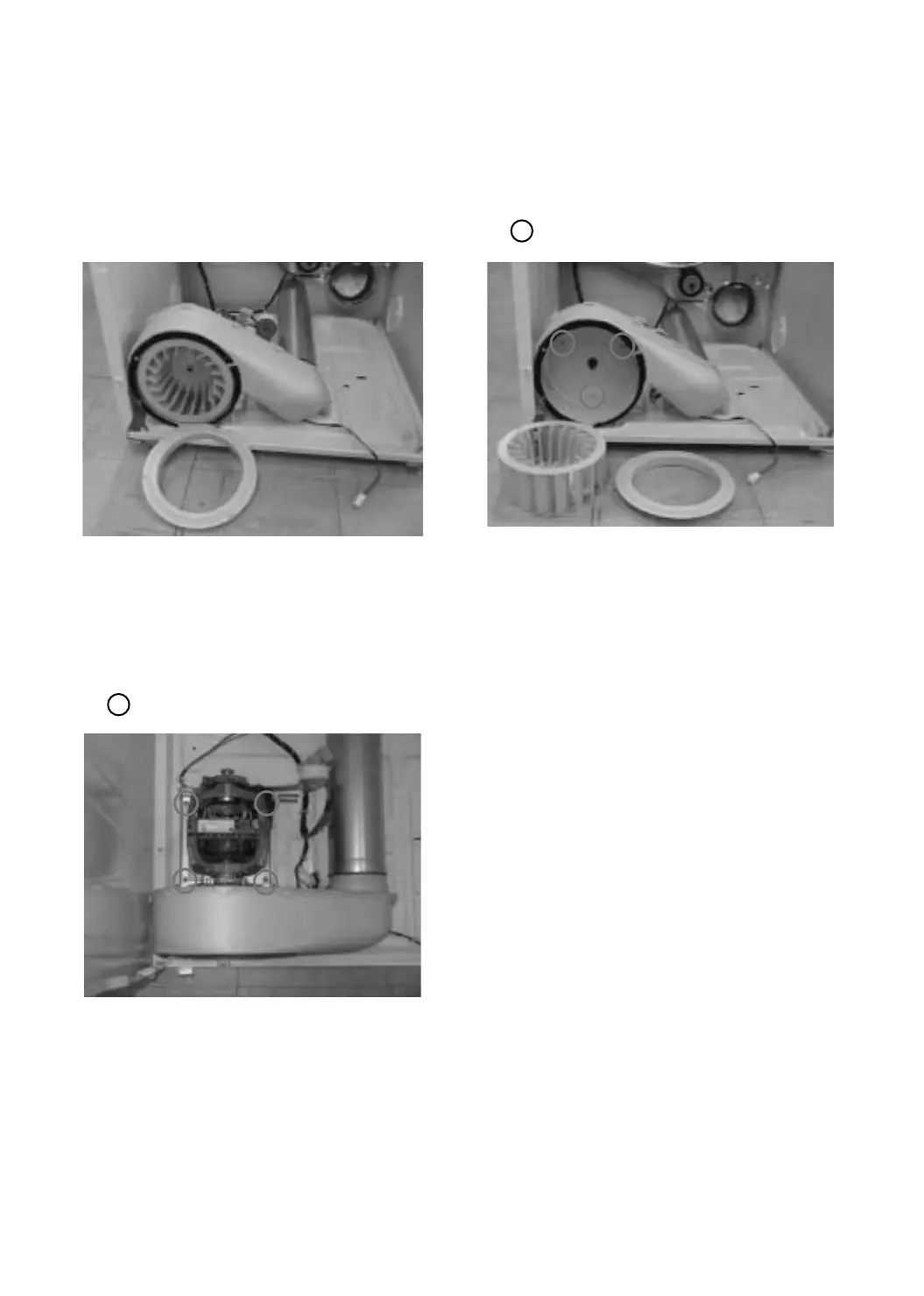

5 Drum Ass'y remove
6 Cover Fan remove
8 Remove the 4 screws and the motor ass’y.
7 Remove the cover fan and 3 screws.
9 Remove wires and 2 clamps that fix the motor bearing to detach the motor.
0 Assemble the parts in reverse order.
Loosen the 3 screws as indicated
with a circle.
Loosen the 3 screws as
indicated with a circle.
