Asko WM70 - WM70.1 UM Wiring Diagram

Service manual WM70
45

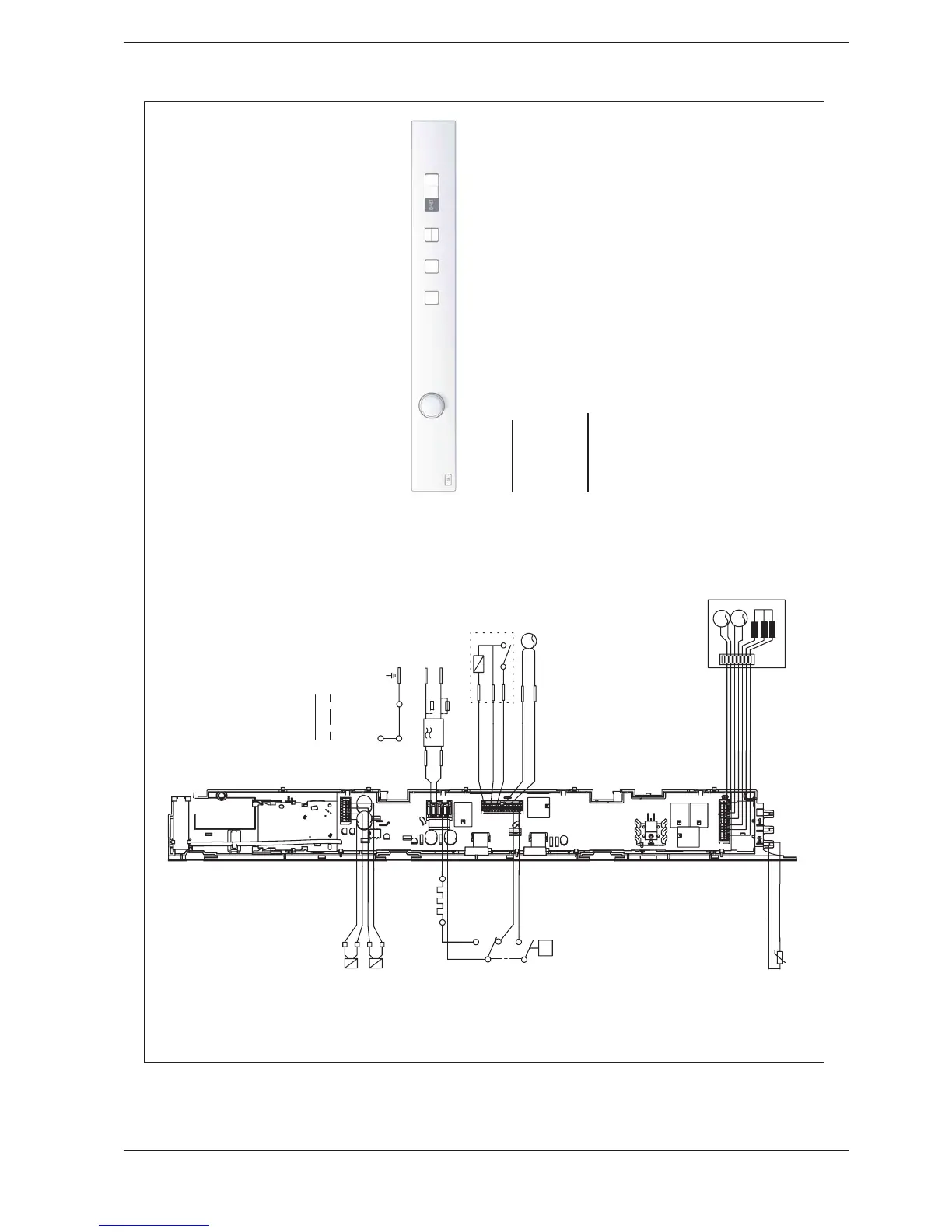

Wiring diagram WM70.1 UM
This document must not be copied without our written pemission, and the contents thereof must not be imparted to a third party nor be used for any unauthorized purpose. Contravention will be prosecuted. Asko Appliances AB
CIRCUIT DIAGRAM WM70.1
80 886 21-02
RESISTANCES AT ROOM TEMPERATURE (CA. 20°C/68°F) VALUES WITHIN +/-10% ARE REGARDED AS NORMAL COMPONENT F: RADIO INTERFERENCE SUPPRESSION FILTER 680K Ohm
EL: HEATING ELEMENT 25 Ohm
AP: DRAIN PUMP 50 Hz 144 Ohm
AP: DRAIN PUMP 60 Hz 76 Ohm
LL: DOOR LOCK, 1-2 122 Ohm
NTC: THERMISTOR 6.1 - 3.8 K Ohm
IV 1: INLET VALVE 1 3.7 K Ohm
IV 2: INLET VALVE 2 3.7 K Ohm
MO: MOTOR, 1-3 3,7±7% Ohm 1-2 3,6±7% Ohm
2-3 3,6±7% Ohm
MCU: MOTOR CONTROL UNIT N: PRESSURE SWITCH
TS: PRESSURE SENSOR
TG: TACHO GENERATOR
BA: CONTAINER INKB: INCOMING GROUND
WIRES IN ALL MACHINES INTERNAL CONNECTION
*A FUSE CONNECTION USA & CANADA
EL
IV2
IV1
<N
N14
N12
N16
N11
NTC
EL
F
INKB
BA
AP
LL
MO
3 2
1
L
N
3
1
2
TG
*A
*A
TOTAL RESET TURN OFF POWER (S1) WAIT FOR AT LEAST 5 SEC
HOLD DOOR OPENING (S11) TURN ON POWER (S1)
CABLE POSITIONS 2: THERMISTOR
3: INLET VALVES 4: DOOR LOCK, DRAIN PUMP, PREASSURE SWITCH 8: POWER 9: HEATING ELEMENT, PREASSURE SWITCH 10:
MOTOR COMMUNICATION, MOTOR POWER
S4
S10
S11
S1
S3
S7
S9
2010-10-27
SERVICE MENU TURN OFF POWER (S1)
WAIT FOR AT LEAST 5 SEC
HOLD START/STOP (S10) TURN ON POWER (S1) PRESS START/STOP (S10) 5 TIMES TO ENTER SERVICE MENU
PRESS DOOR OPENING (S11) TO CHANGE MENU STEP ROTATE DIAL TO CHANGE IN STEP PRESSING START/STOP (S10) STORES AND EXITS SERVICE MENU
RO
