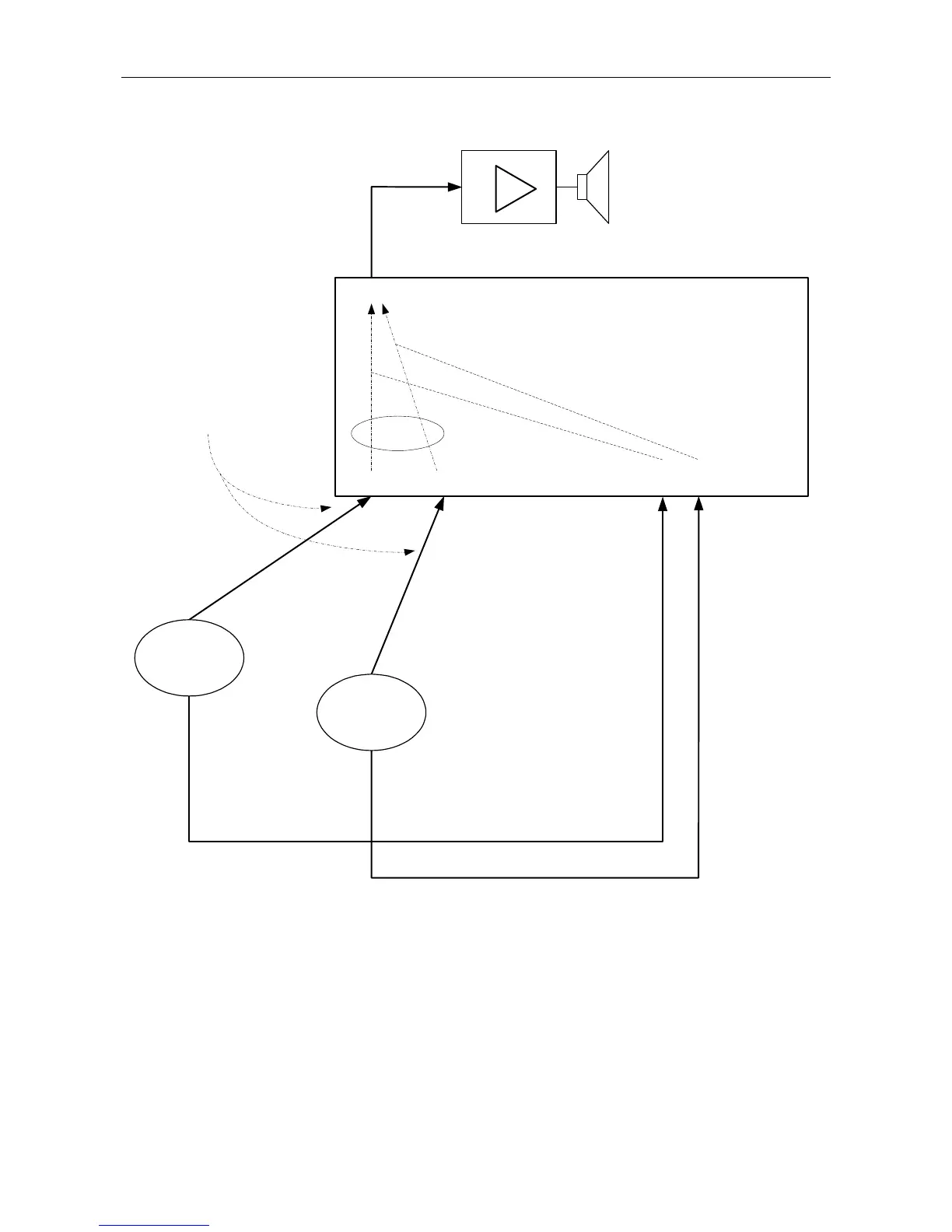

Figure 17 Two RRM02 Units on One Zone Group without Chime
ROUTER
Input 1 Input 2
Contact Inputs
12
Output 1
PTT
Relay
Contact
PTT
Relay
Contact
Contact Input 1
makes a route from
Audio Input 1 to
Audio Output 1
Contact Input 2
makes a route from
Audio Input 2 to
Audio Output 1
Router Inputs are configured as :
y 'Miscellaneous Input'
y No chimes.
Connections:
y Audio lines only.
y No serial data connection.
Busy LED will not operate on the RRM02 units.
L
RRM02
Unit 1
RRM02
Unit 2
