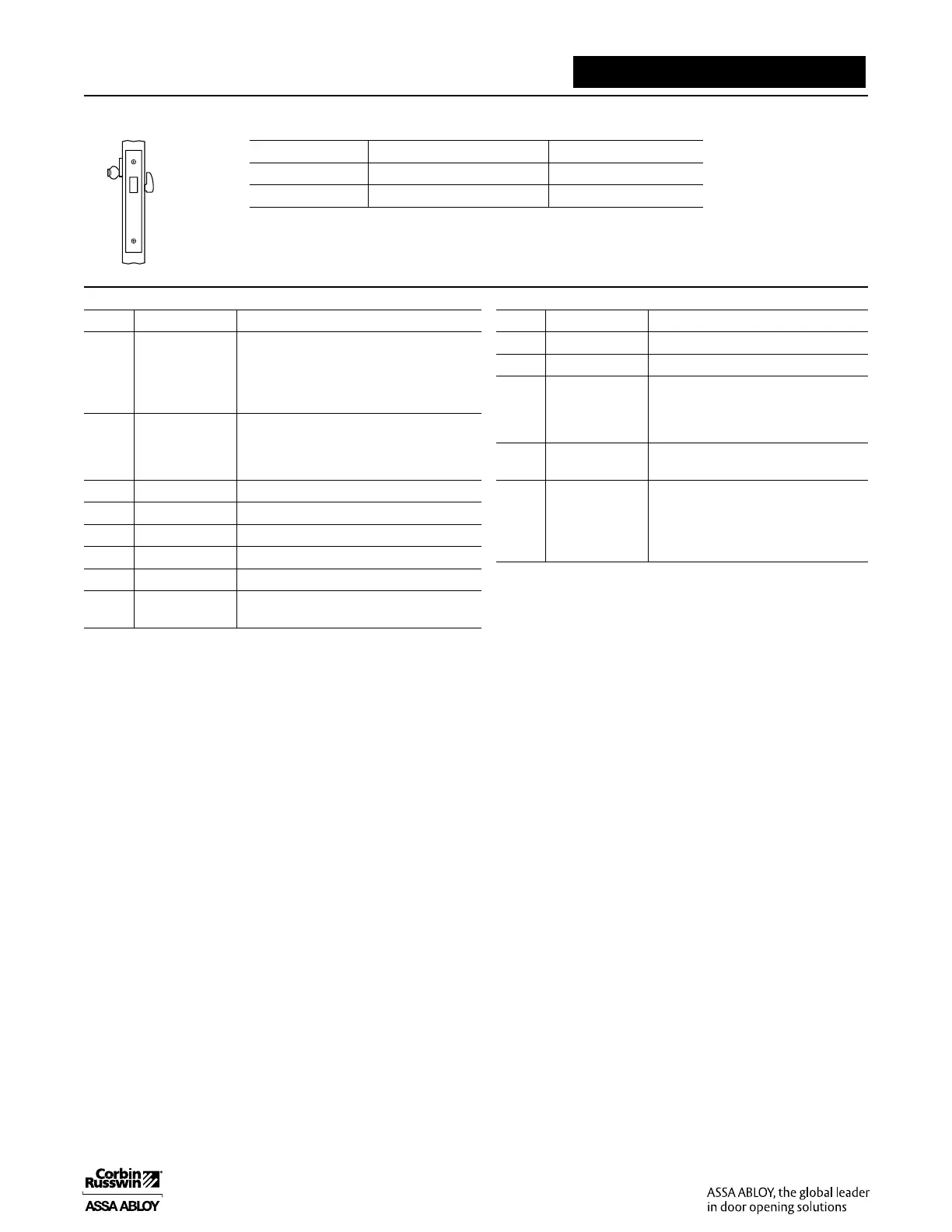

Deadlock Functions - ML2017
ML2000 Parts Manual
For 1-3/4" Min. Doors For 1-3/8" Doors
Type
Standard Master Ring 1" Front
Function
ML2017 -------------- D138 Option
Item Part No. Description
S/A
Deadlock Body
No Cylinder or Thumbturn for
701F26-8* Standard
701F36-8 D138 Option
1 Case & Front Sub Assembly for
687F53-8* Standard
687F54-8 D138 Option
2 700F27-8* Cap, Case
9 700F23-5 Hub, Turnpiece
11 702F98-7 Deadbolt
12 701F22-8** Spring Deadbolt
31 402F73-8* Bracket, Cylinder Set Screw
35 684F18-8*
Screw, FHUM-PH-TITE
#8-32 x 3/8"
Item Part No. Description
48 403F56-8* Deadlock Body
49 403F66-8 Lever, Locking
50 Specialty Finish Armored Front for
079F00 Standard
079F02 D138 Option
51 236L74018
Std. Strike
(See pg. 76 for options)
52 Specialty Finish Mortise Lock Mounting Packet for
429F41 Standard
465F57
M04 (See page 109 for packet
descriptions)
*For M26 Option, replace suffix “-8” with “-2”.
**For M26 Option, replace suffix “-8” with “-7”.
