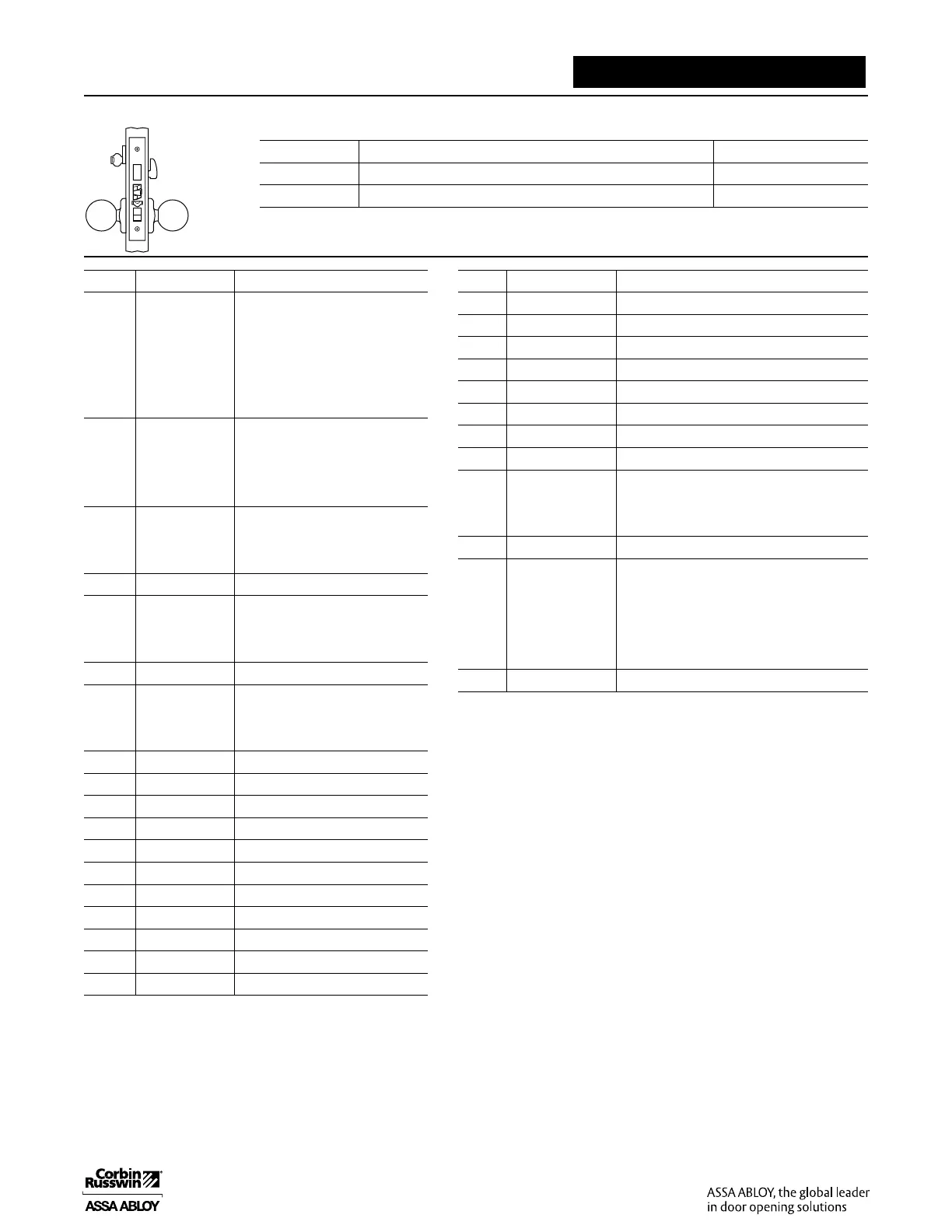

Knob Version - ML2067
ML2000 Parts Manual
For 1-3/4" Min. Doors For 1-3/8" Doors
Type
Standard Master Ring High Security 1" Front
Function
ML2067 MR Option ML2067HS D138 Option
Apartment or Dormitory
*For M26 Option, replace suffix “-8” with “-2”.
**For M26 Option, replace suffix “-8” with “-7”.
Item Part No. Description
S/A
Knob Lock Body
(No Cylinder or Trim) for
701F01-8* Standard
701F11-8* D138 Option
711F01-8 MR Option
792F01-8 High Security
1 Case & Front Sub Assembly for
687F53-8* Standard
687F54-8* D138 Option
687F58-8 MR Option
2 Cap, Case for
700F27-8* Standard
700F57-8* MR Option
3 682F01-8* Lever, Sub Assembly, Stop
4 Hub, Knob
684F14-7 Standard
683F33-7 High Security
7 684F05-5 Stop
9 Hub, Turnpiece for
813F505 Standard
700F31-5 MR Option
10 688F17-7 Latchbolt Sub Assembly
11 702F98-7 Deadbolt
12 701F22-8** Spring, Deadbolt
13 602F19-8* Lever, Deadlocking
14 700F90-7 Spring, Deadlocking Lever
15 403F67-7 Latch, Auxiliary
16 678F54-8* Lever, Auxiliary
17 678F67-7 Spring, Auxiliary Lever
18 681F37-8* Lever, Hub
19 688F03-8** Retractor
21 565F04-8** Spring, Hub Lever
Item Part No. Description
22 701F748 Lever, Cylinder Latch
24 436F17-7 Ring, Retaining
26 461F01-2 Toggle Sub Assembly
27 402F63-7 Spring, Toggle
28 402F61-7 Spring, Seat
31 402F73-8 Bracket, Cylinder Set Screw
35 684F18-8** Screw, FHUM-PH-TITE #8-32 x 3/8”
38 684F06-7 Screw, Stop
50 Specify Finish Armored Front for
402F29 Standard
402F33 D138 Option
51 236L73 018 Std. Strike (See page 76 for options)
52 Specify Finish Mortise Lock Mounting Packet for
429F41 Standard
488F09 High Security (M04)
465F57 MR x M04
616F12 (See page 109 for packet descriptions)
53 700F95-7 Spring, Latch Lever
