Options and Accessories

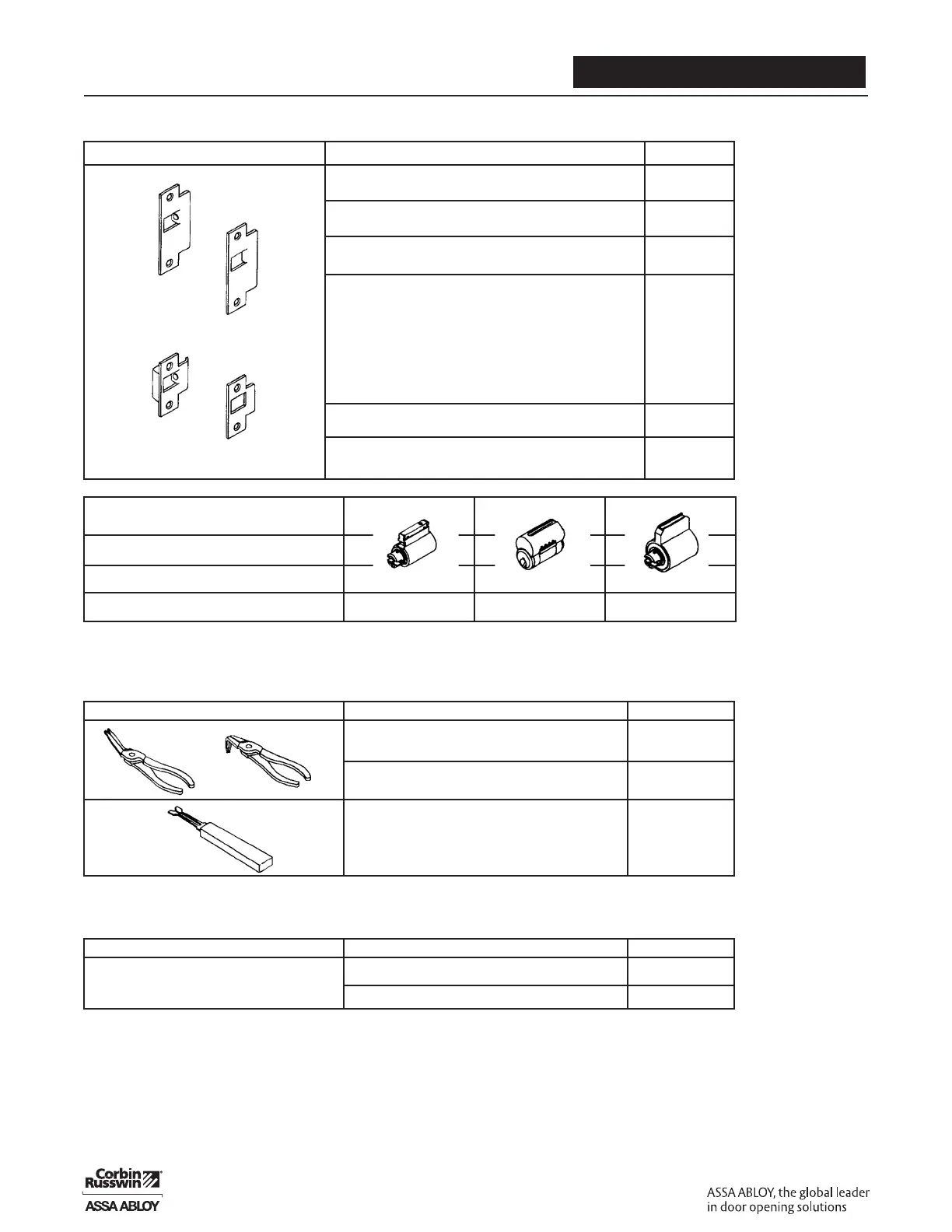

UT5200 Parts Manual
Cylinders (Specify Finish)
Standard Interchangeable Core Master Ring
Conventional 6-Pin 2000-052 8000 2060-052
Conventional 7-Pin N/A 8000-7 N/A
High Security 2010-052 8010 N/A
Strikes (Specify Finish)
Description Part Number
ANSI Curved Lip Strike (Standard), 1 1/4" lip to center 236L75M020
ANSI Straight Lip Strike for Extended Lip Escutcheon,
15/16" lip to center
610L43
ANSI Straight Lip for Pairs of Doors 610L44
Curved Lip Box Strike (lip length measured from back to
strike to edge of lip) Lip Lengths: 2"
2 1/8" (std)
2 1/4"
2 1/2"
2 3/4"
3"
083L96M032
083L96M034
083L96M036
083L96M040
083L96M044
083L96M048
Straight Lip Box Strike
for extended Lip Escutcheon, 15/16" lip to center
293L14
Strike for Pairs of Doors 082L67
Miscellaneous
Description Part Number
Delrin Insert (black) – Option M01 493F999
Spanner Head Screws (specify finish) – Option M02 223F29-3 (fin)
ANSI Curved
Lip Strike
ANSI Straight
Lip Strike for
Pairs of Doors
Curved Up
Box Strike
Strike for
Pairs of Doors
CT-25
CT-27
Waldes Tru-Arc Pliers
Description Part Number
For removing and installing large shank retaining
ring to gain access to cylinder of knob locksets
CT-25
For removing and installing the shank retaining
ring of lever locksets
CT-27
For installing small retainer on spindle of UT5282
(Waldes applicator #E-015)
301F59-8
