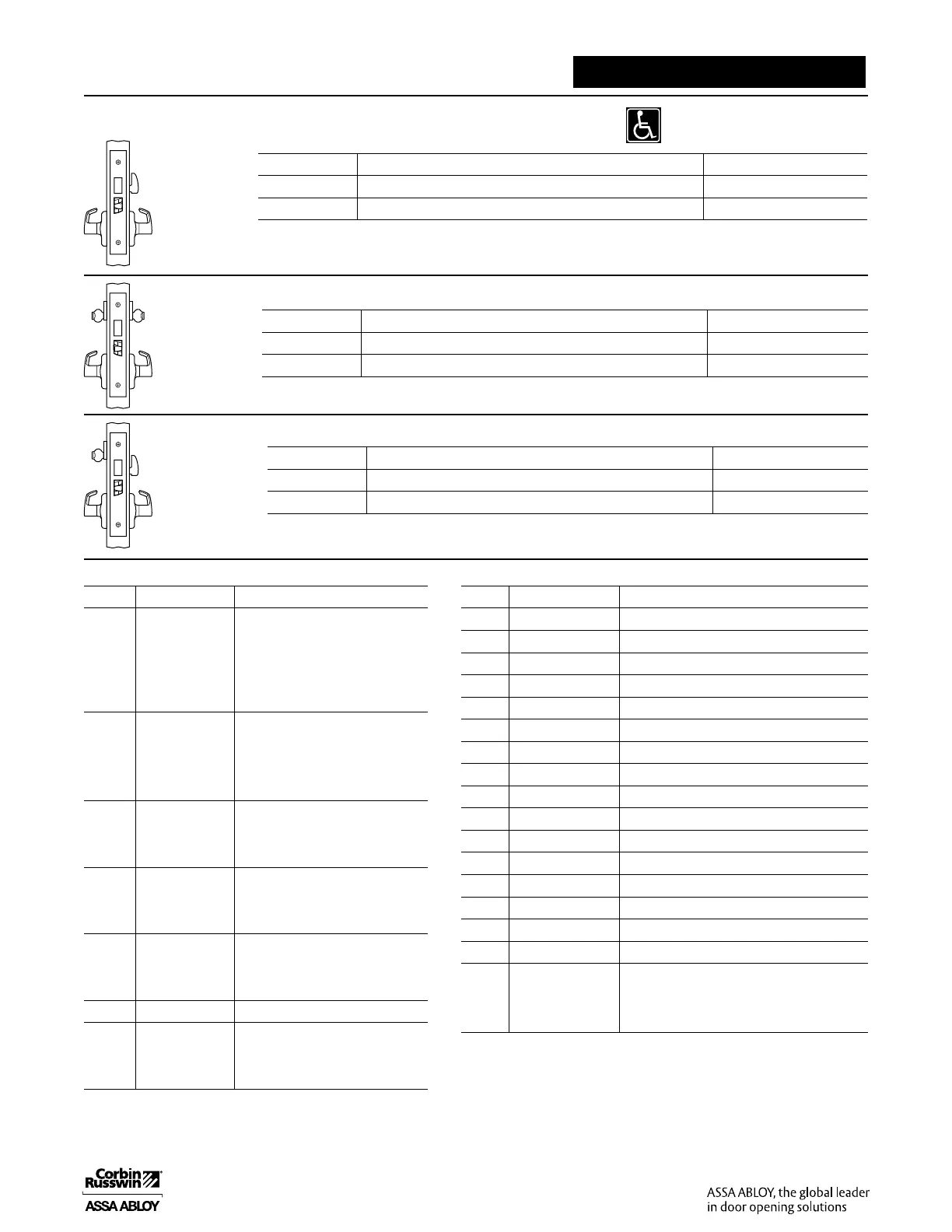

Assa Abloy Corbin Russwin Access 3 - Entrance or Storeroom

46
Lever Version - ML2020, ML2022, ML2024
ML2000 Parts Manual
For 1-3/4" Min. Doors For 1-3/8" Doors
Type
Standard Master Ring Vandal Resistant 1" Front
Function
ML2020 -------------- ML2020VR D138 Option
Privacy, Bedroom or Bathroom, Store Door, Entrance or Storeroom
*For M26 Option, replace suffix “-8” with “-2”.
**For M26 Option, replace suffix “-8” with “-7”.
Item Part No. Description
S/A
Lever Lock Body
(No Cylinder or Trim) for
700F05-8* Standard & Vandal Resistant
700F15-8* D138 Option
710F05-8* MR Option
1 Case & Front Sub Assembly for
687F53-8* Standard
687F54-8* D138 Option
687F58-8* MR Option
2 Cap, Case for
700F27-8* Standard
700F57-8* MR Option
5 Hub (Case Side)
684F10-8** Standard
684F10-7 Vandal Resistant
6 Hub (Case Side)
684F09-8** Standard
684F09-7 Vandal Resistant
7 684F05-5 Stop
9 Hub, Turnpiece for
813F505 Standard
700F31-5 MR Option
Item Part No. Description
10 688F17-7 Latchbolt Sub Assembly
11 702F98-7 Deadbolt
12 701F22-8** Spring, Deadbolt
18 681F36-8* Lever, Hub
19 688F03-8** Retractor
20 690F82-7 Spring, Retractor
21 565F04-8** Spring, Hub Lever
22 701F748 Lever Sub Assembly, Cylinder Latch
29 466F22-9 Spacer
30 404F85-8** Spring, Lever Return
31 402F73-8* Bracket, Cylinder Set Screw
32 404F86-8* Bracket, Align
35 684F18-8** Screw, FHUM-PH-TITE #8-32 x 3/8”
36 684F11-9 Spacer, Hub
37 684F12-9 Spacer, Spring
38 684F067 Stop Screw
50 Specify Finish Armored Front for
423F54 Standard
423F57 D138 Option
For 1-3/4" Min. Doors For 1-3/8" Doors
Type
Standard Master Ring Vandal Resistant 1" Front
Function
ML2022 MR Option ML2022VR D138 Option
For 1-3/4" Min. Doors For 1-3/8" Doors
Type
Standard Master Ring Vandal Resistant 1" Front
Function
ML2024 MR Option ML2024VR D138 Option
