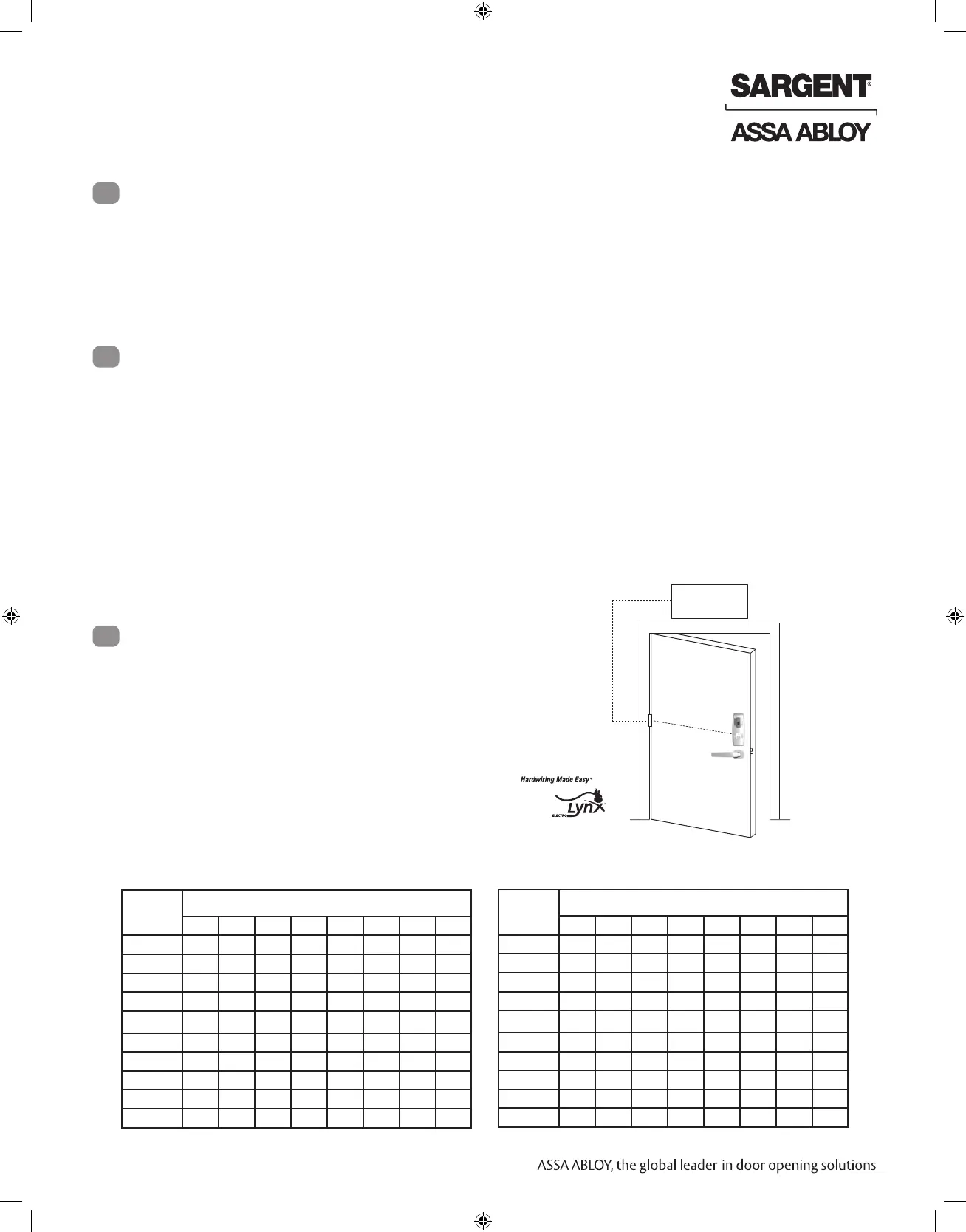

Harmony Series H1 Mortise Lock
A7877F • 800-810-WIRE (9473) • www.sargentlock.com
3
The SARGENT Harmony Series H1 Mortise Lock is designed to interface with existing Wiegand Electronic
Access Control (EAC) panels. The reader requires 12VDC for power and features 125 kHz HID proximity
technology. The H1 technology is backed by SARGENT’s Grade 1 hardware.
The mortise lock includes Request to Exit and door position monitoring within the lock body and operates
from 12 - 24VDC. Weather seal gaskets are also included for outside use on exterior door applications only.
The Harmony H1 reader provides visual (LED) and audible indication of lock state (locked/unlocked).
Total
One-Way
Length of
Wire Run (ft)
Load Current @ 12VDC
1/4A 1/2A 3/4A 1A 1-1/4A 1-1/2A 2A 3A
100 20 18 16 14 14 12 12 10
150 18 16 14 12 12 12 10 —
200 16 14 12 12 10 10 — —
250 16 14 12 10 10 10 — —
300 16 12 12 10 10 — — —
400 14 12 10 — — — — —
500 14 10 10 — — — — —
750 12 10 — — — — — —
1,000 10 — — — — — — —
1,500 10 — — — — — — —
Total
One-Way
Length of
Wire Run (ft)
Load Current @ 24VDC
1/4A 1/2A 3/4A 1A 1-1/4A 1-1/2A 2A 3A
100 24 20 18 18 16 16 14 12
150 22 18 16 16 14 14 12 10
200 20 18 16 14 14 12 12 10
250 18 16 14 14 12 12 12 10
300 18 16 14 12 12 12 10 —
400 18 14 12 12 10 10 — —
500 16 14 12 10 10 — — —
750 14 12 10 10 — — — —
1,000 14 10 10 — — — — —
1,500 12 10 — — — — — —
• Latch - Stainless steel 3⁄4” projection one-piece
• Deadbolt - One-piece hardened stainless steel
• Guardbolt - Stainless steel, non-handed
• Handed - Easily field reversible without opening case
• Case - 12 gauge heavy duty wrought steel
• Outside lever controlled by any 125kHz HID
proximity credential
• Field-selectable to Fail Safe or Fail Secure
• Inside lever provides RX signal and retracts latch
and deadbolt
• Door position switch within lock body
• Locks furnished for 1-3/4” doors. Other door
thicknesses require confirmation with factory.
• UL and CUL listed for use on Fire Doors
• Listed to UL 294 (Access Control System Units)
within the U.S. only
• Wire from EAC Panel to door must be shielded
with drain terminated at EAC Panel controller
Wire Gauge Charts
General Description
2
Technical Specifications
3
Electrical Specifications
4
McKinney
Electric
Hinge
Harmony
Series H1 Patented
Wiegand Access
Control System
12/24VDC System
• Reader Draw = 140mA @12VDC
• Actuator Draw = 15mA continuous
• Maximum (2) locks per 1 Amp power supply
(1/2 Amp peak current draw)
The H1 reader requires 12VDC for power.
As the lock accepts either 12 or 24V, a 12V power
supply is recommended to support both the lock
and reader with a single power supply.
