Copyright © 2015, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved.
Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
05/15/15

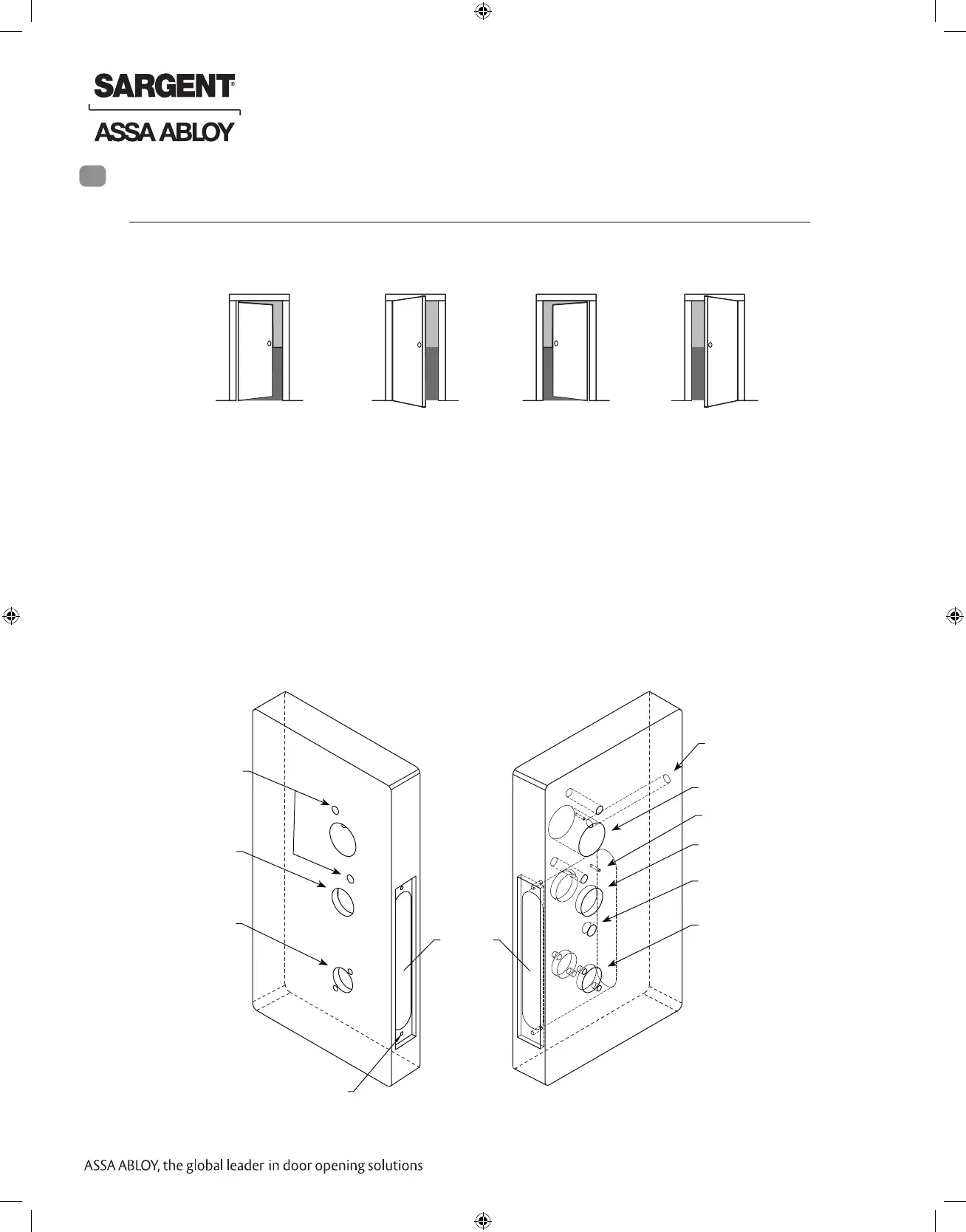

Harmony Series H1 Mortise Lock
A7877F • 800-810-WIRE (9473) • www.sargentlock.com
6
Left Hand
Hinges Left.
Open Inward.
“LH”
Left Hand
Reverse Bevel
Hinges Left.
Open Outward
“LHRB”
Right Hand
Hinges Right.
Open Inward.
“RH”
Right Hand
Reverse Bevel
Hinges Right.
Open Outward
“RHRB”
Stand on outside of locked door when determining door hand.
Prepare door according to appropriate template.
If necessary, refer to website: www.intelligentopenings.com
• Prior to installation, make sure all holes are free of burrs, debris and sharp edges.
• If doors are not properly reinforced per ANSI 115.2, commercially available reinforcements
should be installed.
• Templates:
o Field: A7944 template ships with product.
o Manufacturer: 4590 metal and wood door.
Fig. 1A
Outside of Door Inside of Door
Raceway for 12 Conductor
Network/Power Cable
(ElectroLynx) from McKinney
Hole for Cable from
Reader to Controller Board
Pre-drilled and/or
Tapped Holes (2 places)
Inside Cylinder Hole
Through-bolt Holes
(2 places)
Outside Cylinder Hole
(70/71, 80/81
functions only)
Lever Hole
Thumb Turn Hole
Lever Hole
Mortise
Area
Pre-drilled and/or
Tapped Holes (2 Places)
Fig. 1B Wood Door
Installation Instructions
6
1 Door Preparation
A. Verify Hand and Bevel of Door
B. Door Preparation
