1.1 Orion EMS devices
The devices used together with Orion EMS are:
digital thermostat Orion High Voltage Thermostat; from now on in this document
simply called 'thermostat'
Note: The thermostat has a built-in motion sensor, but in some cases (depending
on the location of the thermostat in the room)
it can be necessary to use an external motion sensor in addition.
door monitoring device; lock, RF door switch
Note: It is also possible to use a wired door switch without radio, but this
manual mainly describes the RF door switch. For more information about wired
door switches, see Installation manual Orion High Voltage Thermostat.
gateway (the same as is used for online doors; requires the Online option)
Note: The gateway is not used in offline scenarios.

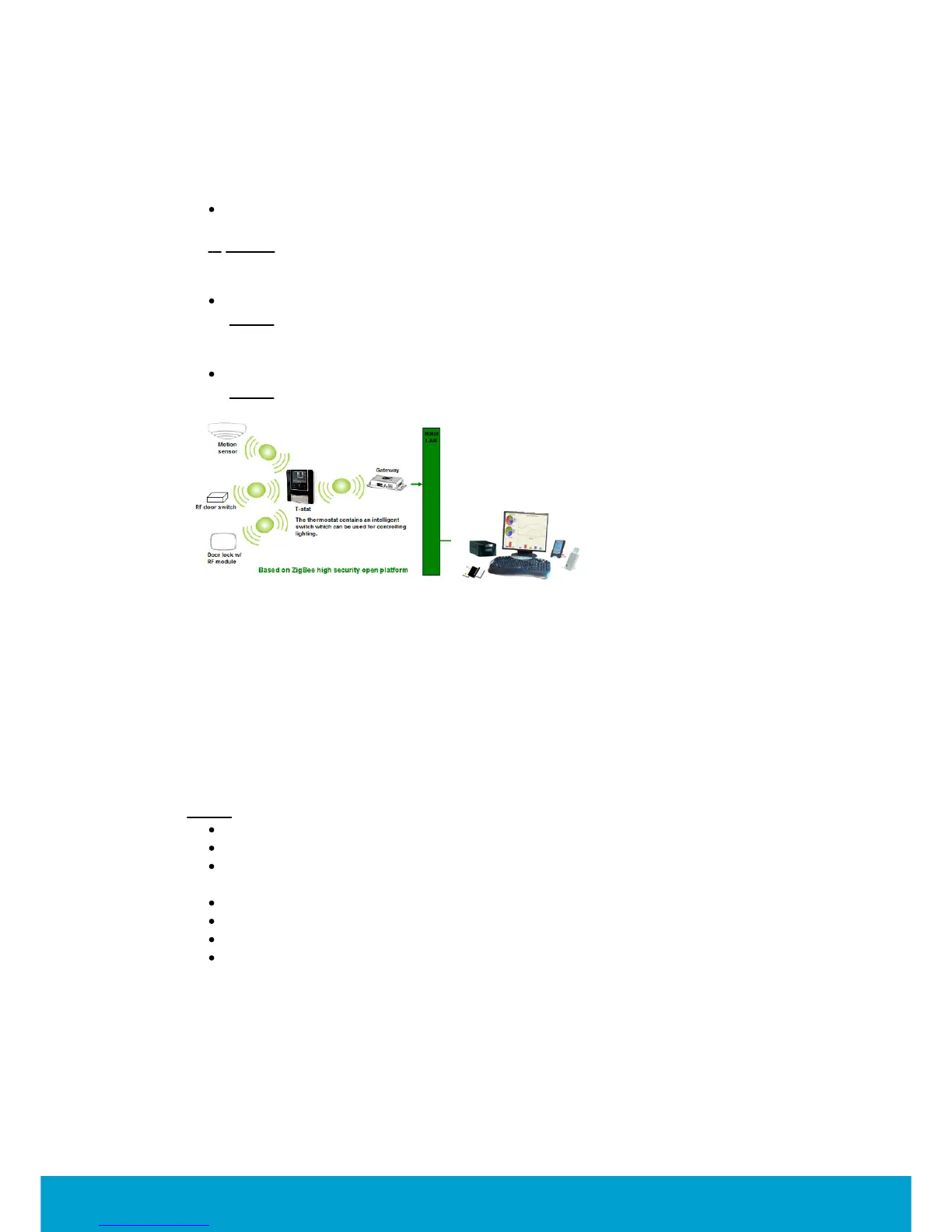

Figure 1: Orion EMS example configuration
The thermostat has a built-in ZigBee router via which it communicates to the software
and the devices within the room. The thermostat stores all parameters needed for Orion
EMS; if the thermostat controller is used as well, the parameters (with a few exceptions;
see Installation manual Orion High Voltage Thermostat for details) are instead stored in
the thermostat controller. The parameters are either transferred online from the software
or from the Orion Service software; see Quick reference guide Orion Service for more
information about the latter.
Note: For each room number, it is possible to have either
one wired thermostat
up to five motion sensors
up to five door switches
OR
one thermostat controller
up to five battery thermostats
up to five motion sensors
up to five door switches
