IN100 Cylindrical Lock
Inside
Cover
Security Allen
Screw
Fig. 12
Fig. 13

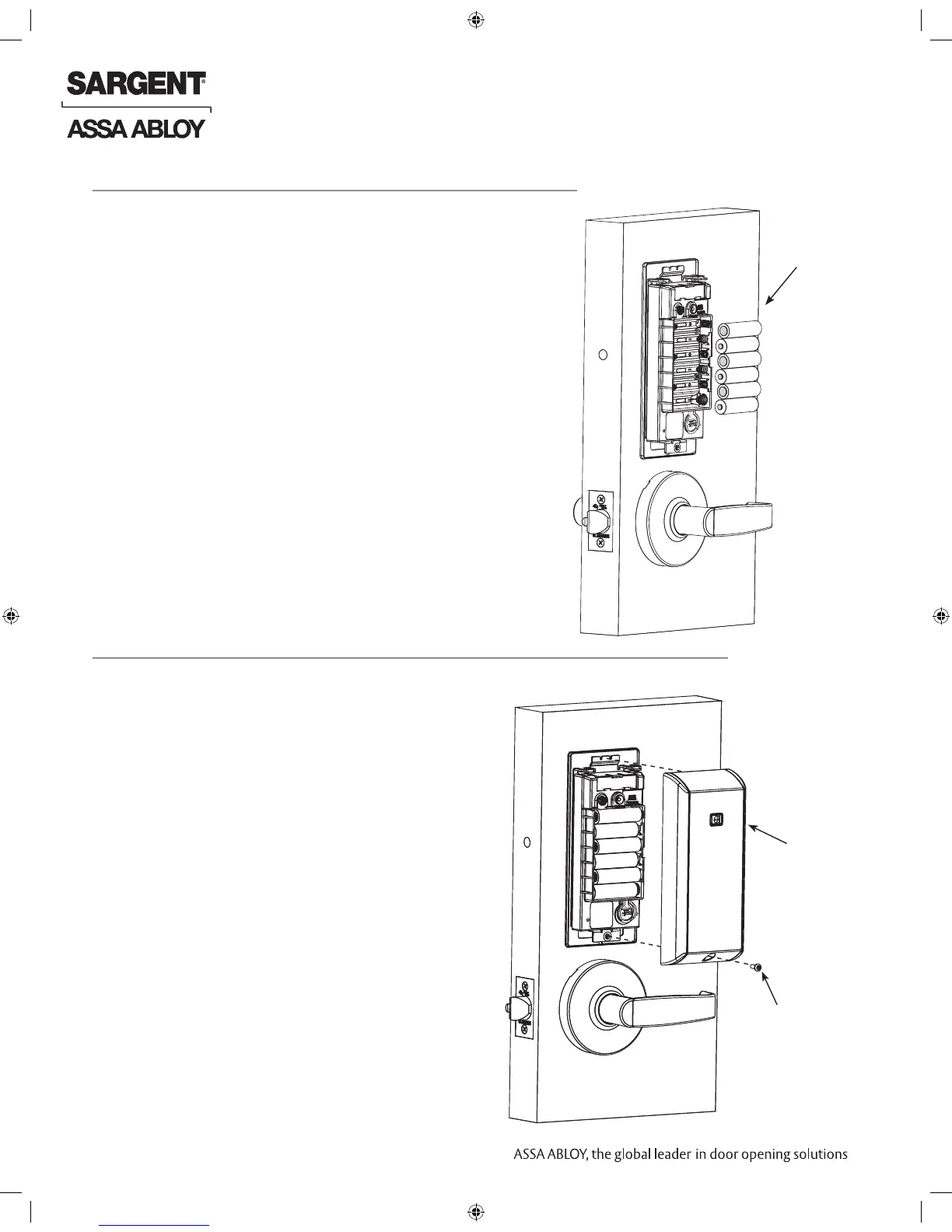

1. Assemble cover by hooking top edge on inside
mounting plate.
2. Carefully press bottom of cover toward door without
pinching or damaging wires.
3. Secure cover utilizing security allen wrench (provided).
AA Batteries (6)
13
Battery Installation
14
Inside Cover Installation
1. Place (6) “AA” alkaline batteries in the compartment, being
careful to align polarity properly (Fig. 12).
2. After batteries are installed, there is a slight delay; then red and
green flash*, audible “beep” and lock motor will cycle.
*See Section 8 - LED Indications for more information
