IN100 Cylindrical Lock

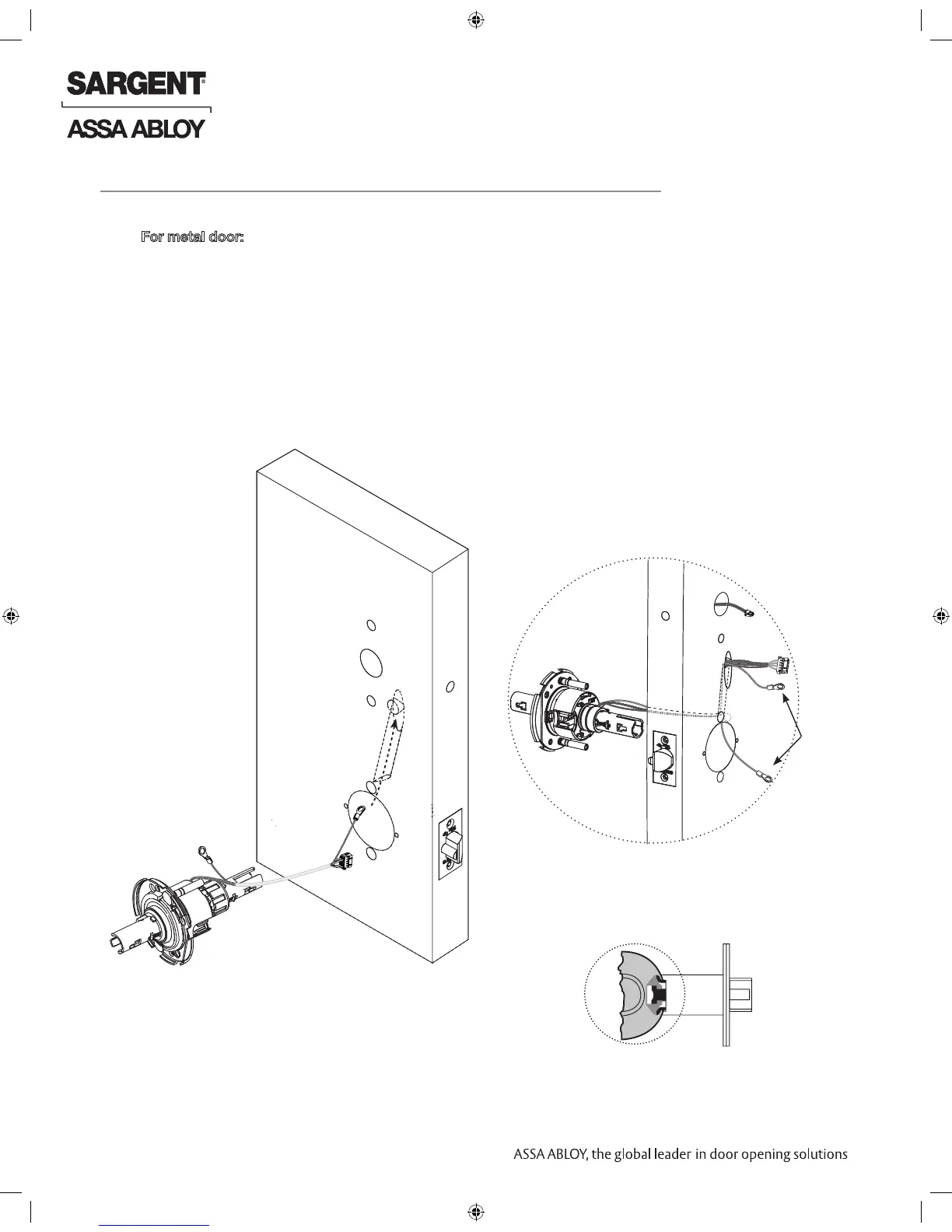

7 Install Lock
1. From outside of door feed lockbody harness into the lockbody hole (Fig. 7A).
For metal door: Feed harness through inside of door (not shown).
2. Continue to feed harness into raceway (towards top of door), exiting raceway
hole on inside of door (Fig. 7B).
3. Slide lockbody into cross-bore hole from outside of door.
4. Lockbody must engage both the latch unit prongs and tail piece (Fig. 7C).
IMPORTANT:
• Door must remain open during installation (use door stop)
• Lockbody must be centered in the door
• Tuck excess wires into raceway to avoid pinching or damaging wires
Fig. 7B Detail
Inside of Door
Outside of Door
Fig. 7A
Ground Ring
Terminals
NOTE: Cable lengths exaggerated for illustrative purposes.
Fig. 7C Detail
To Next Page
