IN100 Cylindrical Lock
A. Verify Hand and Bevel of Door
Stand on outside of locked door when determining door hand.
Lock Installation
LH
Left Hand
Hinges Left
Open Inward
LHRB
Left Hand
Reverse Bevel
Hinges Left
Open Outward
RH
Right Hand
Hinges Right
Open Inward
RHRB
Right Hand
Reverse Bevel
Hinges Right
Open Outward

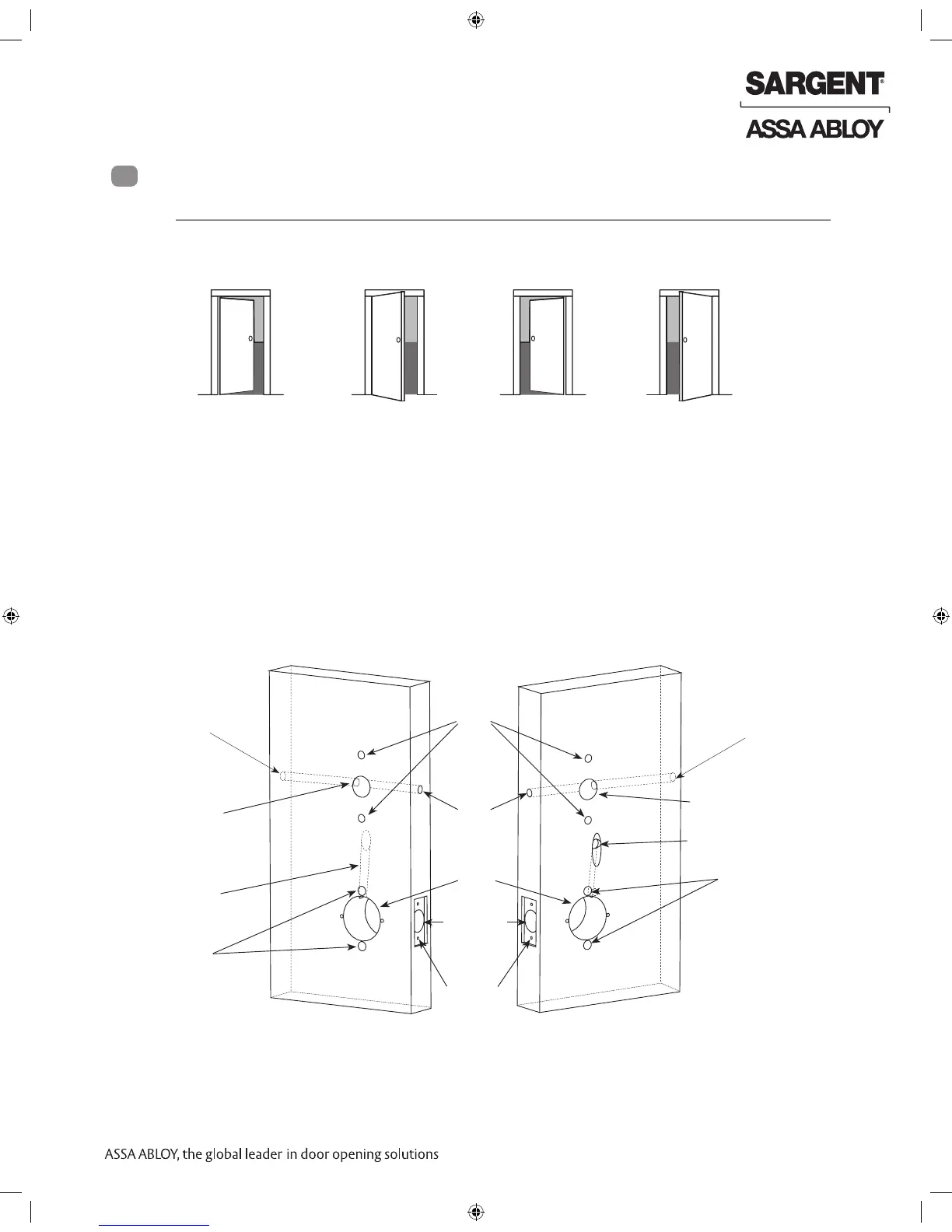

Fig. 1A
1 Prepare Door
6
B. Prepare Door
Prior to installation, all holes must be free of burrs, debris and sharp edges.
Prepare door according to appropriate template (see website www.intelligentopenings.com).
• Field Template: A8149 (ships with product)
• Door Manufacturer’s Template: 4712
Inside of DoorOutside of Door
Fig. 1B Wood Door Preparation
Cable Hole
Through-bolt
Holes
Cable Hole
Pre-drilled
Tap Holes
Cylindrical
Pocket
and
Latch
Holes
Through-bolt Holes
External
DPS
holes
Through-bolt Holes
Lever Handle
Hole
Raceway for
Lockbody
Harness
Raceway for
Lockbody
Harness
Raceway for Power
(Optional)
Raceway for Power
(Optional)
