IN100 Cylindrical Lock

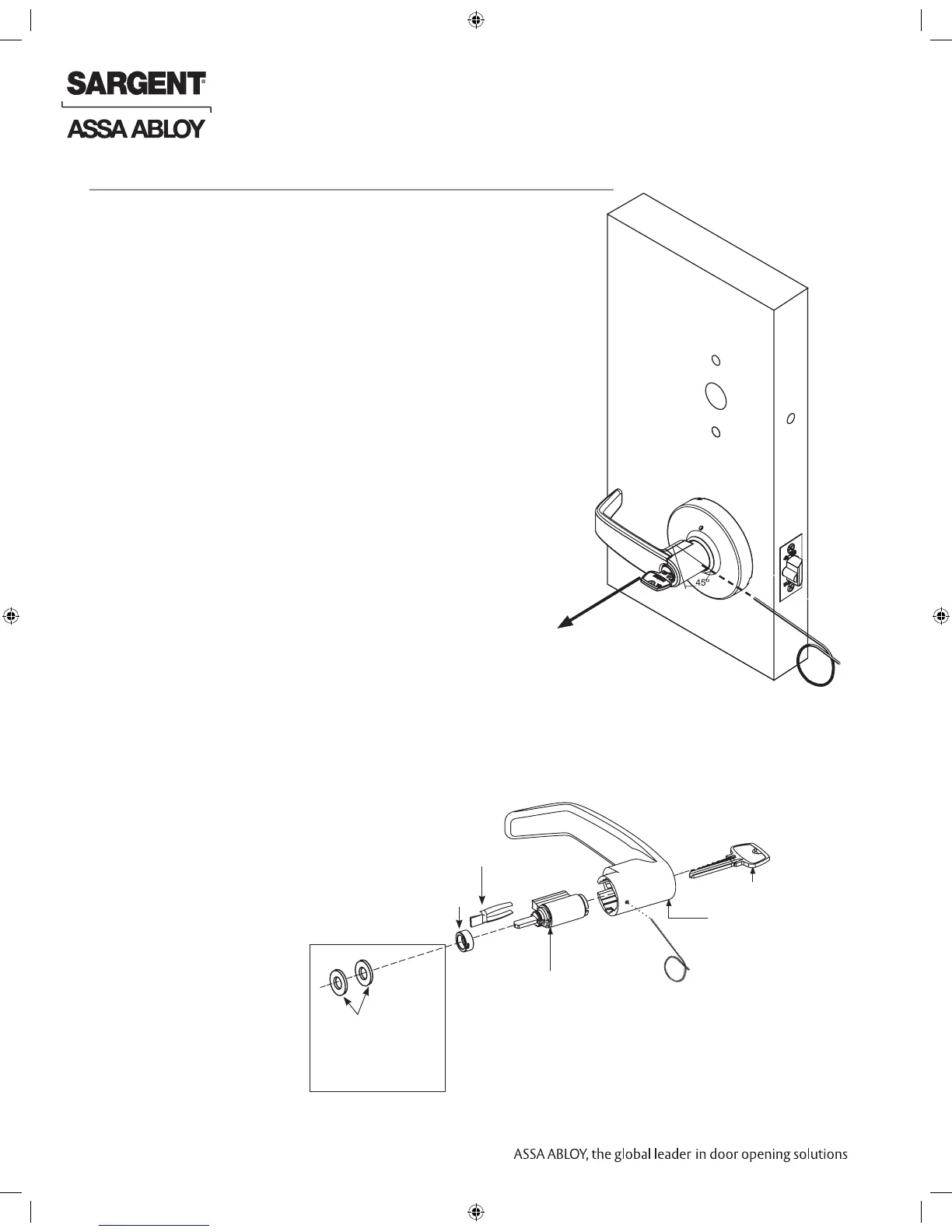

A. Remove Outside Lever
1. Insert key, rotate 45° clockwise and hold.
2. Depress lever retainer with push pin tool (provided).
3. Pull lever outward.
6 Through-Bolt and Door Thickness Adjustment (If Required)
Outside of Door
Fig. 6A
B. How To Change Cylinder (If Necessary)
1. With outside lever in hand, use standard pliers
to pull out cylinder retainer.
2. Remove key and cylinder from lever.
3. Insert new cylinder.
4. Secure by pressing cylinder retainer flush with the lever.
Cylinder
Cylinder
Retainer
Cylinder
Spacer
Outside
Lever
Key
Washers required for
30- prefix
(10 Line Lever)
to accept
Schlage cylinder
(no cylinder provided)
Fig. 6B
Push Pin Tool
To Next Page
