IN100 Cylindrical Lock

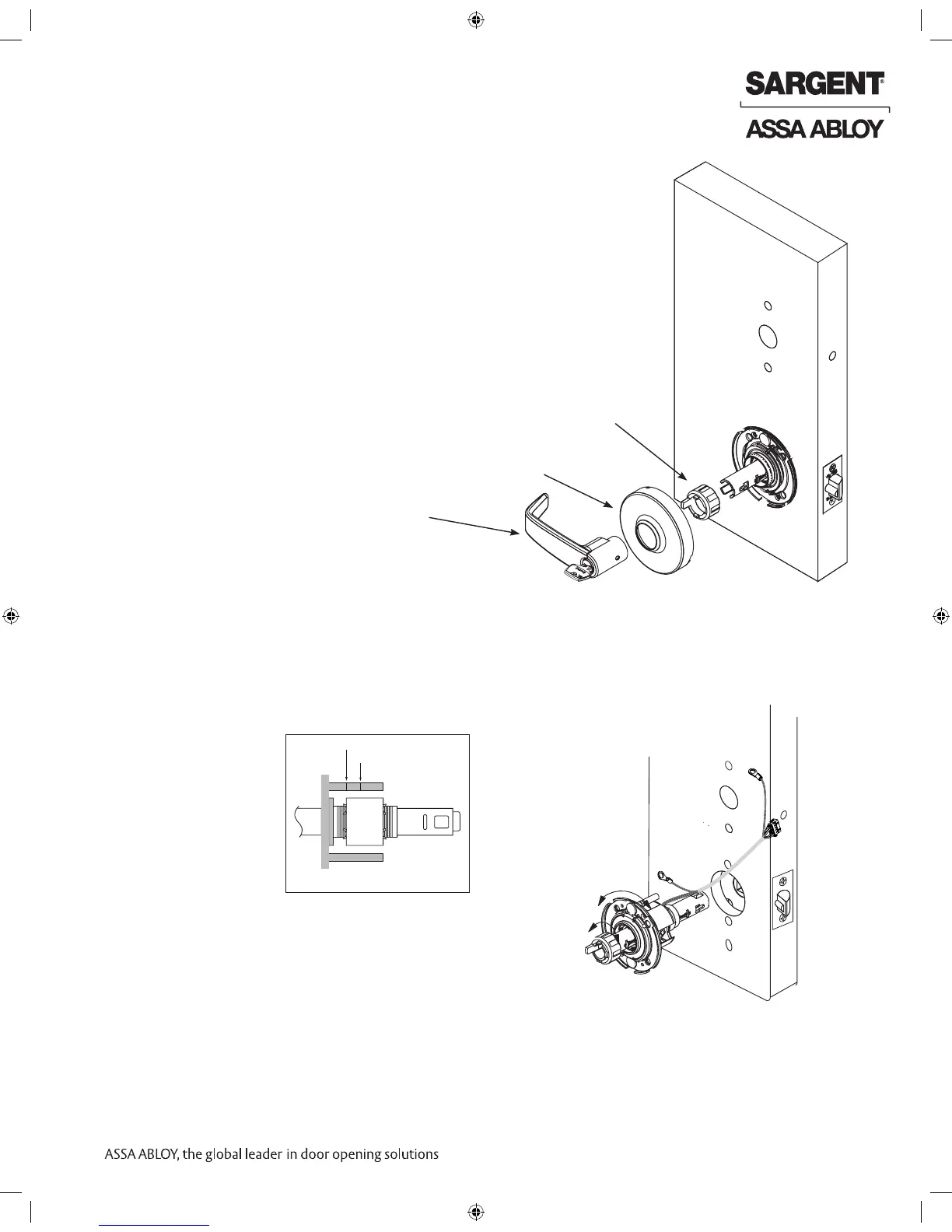

1. (If necessary) remove outside lever, scalp
and spacer bushing (Fig. 6C).
C. Through-Bolt and Door Thickness Adjustment
Fig. 6C
Fig. 6C Detail
1-3/4” Thick Doors
2” Thick Doors
2. Rotate mounting plate to either align with through-bolt holes in
door, or adjust for proper door thickness (Fig. 6D).
Refer to markings on through-bolt post (Fig. 6C Detail).
3. Re-install spacer bushing to align with back
of lever, scalp, and lever (Fig. 6D).
Fig. 6D
Outside Lever
Scalp
Spacer Bushing
