6 1-800-810-WIRE • www.sargentlock.com • A8189B
Copyright © 2016, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
07/31/16
IN100 Cylindrical Lock

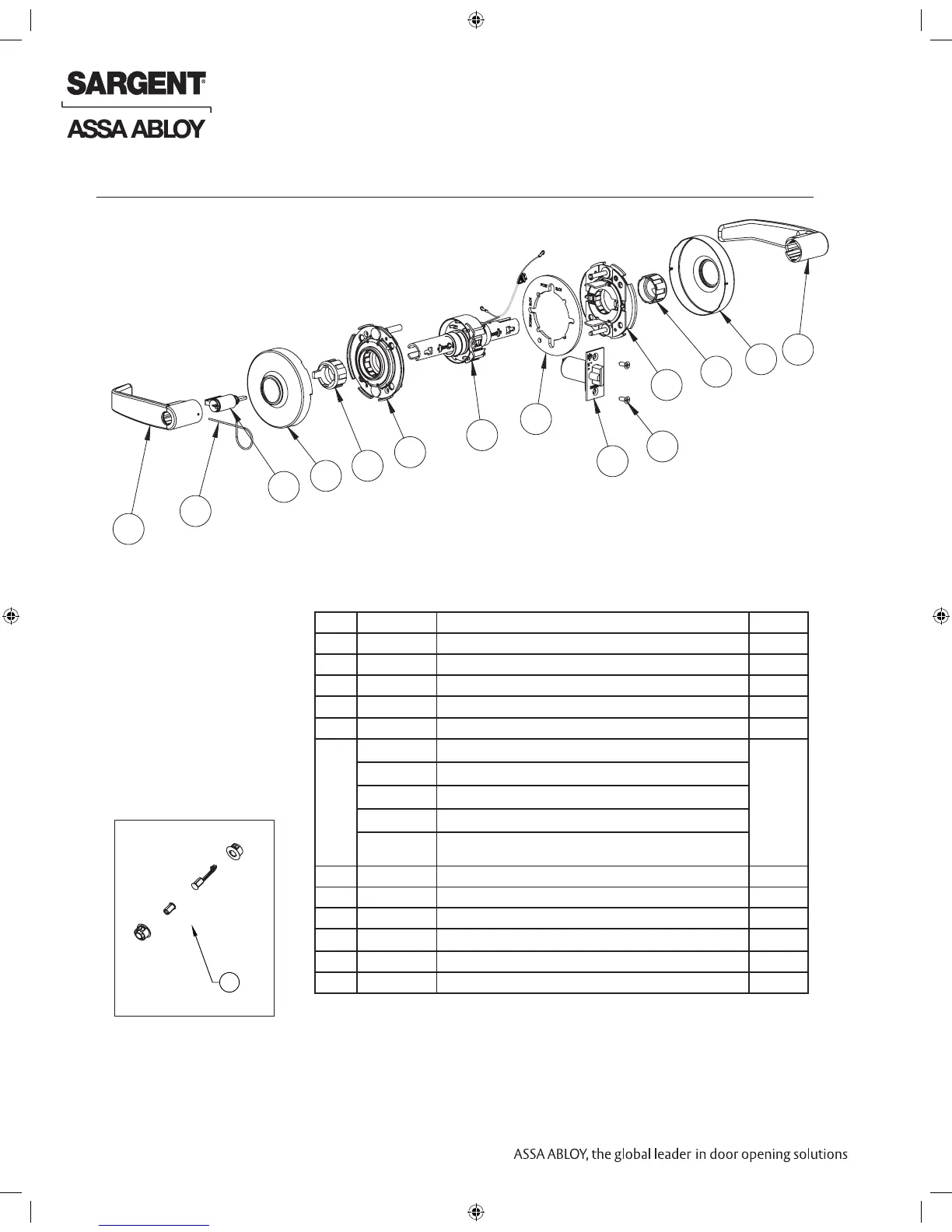

Parts Breakdown (Continued)
*Adapter Plate/Spacer (10-0847)
is only shipped with orders
that specify 1-3/8” doors.
Tools Required:
• #2 Phillips screwdriver
• Flat head screwdriver
• Security allen wrench
ITEM
PART NO./ORDER
STRING
DESCRIPTION
QTY.
13
1
2
3
4
5
6
7
11
5
4
12
9
10
8
*
1 --- Outside Lever (Reference Catalog for Available Styles) 1
2 10-0043 Lever Retainer Key (In Screw Pack 10-2052) 1
3 --- Cylinder Assembly (Reference Catalog for Available Cylinders) 1
4 --- Rose (Reference Catalog for Available Styles) 2
5 10-0792 Spacer Bushing 2
6 10-3049 Outside Rose Spring Assembly 1
7** 10-3452 Lockbody Assembly 10G77 (Standard Cylinder) 1
10-3453 Lockbody - LFIC (Removable Core)
10-3454 Lockbody - SFIC
10-3455 Lockbody - Keso
10-3456 Lockbody - Medeco Keymark LFIC & Schlage Full Size
Interchangeable Core
8 10-0847 Adapter Plate/Spacer (Only Included With 1-3/8” Thick Doors) 2
9 10-3192 Latch Assembly 1
10 10-2052 Screw Pack 2
11 10-3048 Inside Rose Spring Assembly 1
12 --- Inside Lever (Reference Catalog for Available Styles) 1
13 52-5374 Door Position Switch Kit (SPDT) 1
**The IN100 10G77 cylindrical lock supports Escape Return functionality.
