2
1-800-727-5477 • www.sargentlock.com

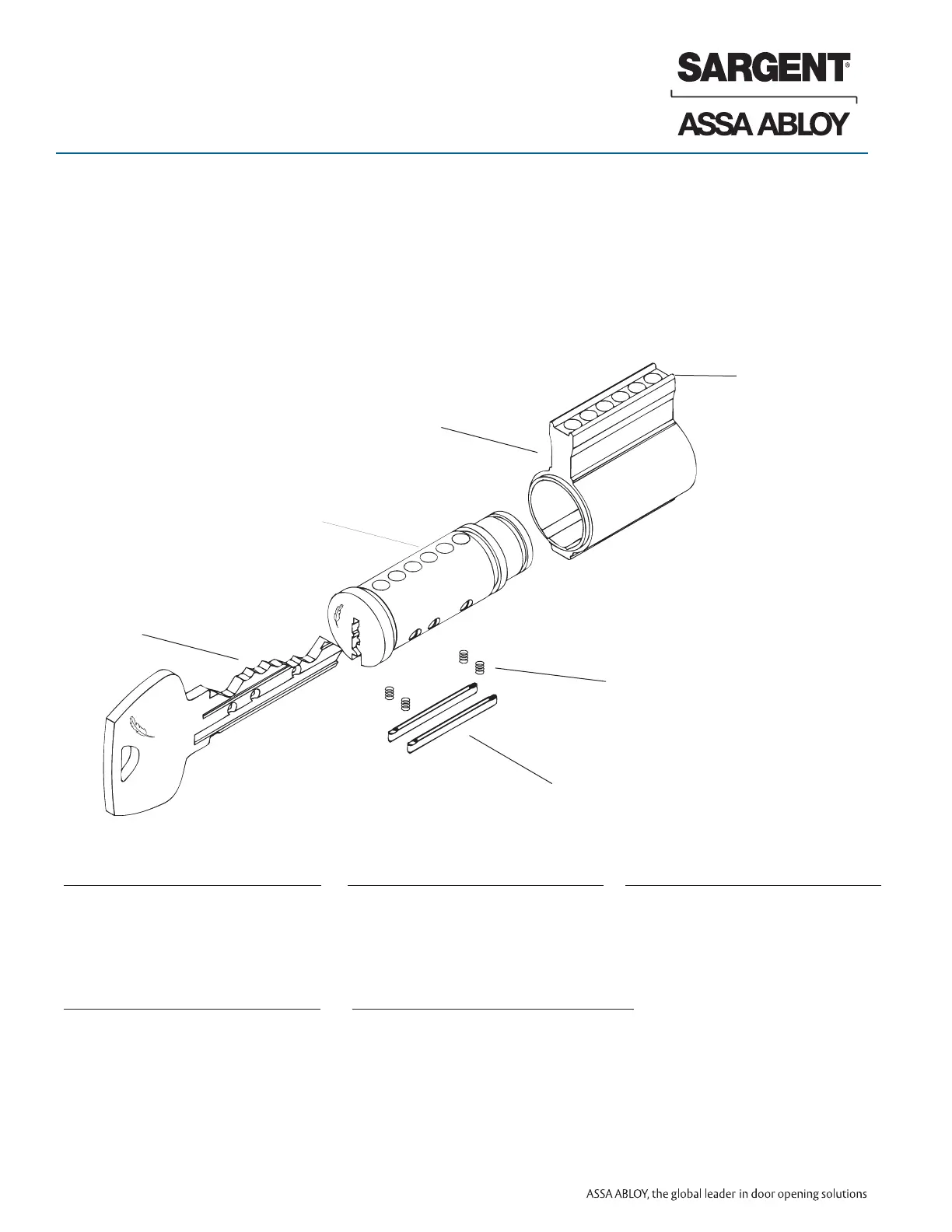

Signature Components
Signature
®
Series
90105:D: 11/15/11 Copyright © 2007, 2009 - 2011, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
1
2
3
4
5
Top Loading
Key Blank
Standard key bitting can be
accomplished in the field with any
industry standard duplicating or code
cutting machine.
1
Signature Barrel (Plug)
Unique Signature pattern code pins
factory loaded. Field servicing not
required.
2
Signature Body
Grooved to function with offset blocking
bar assemblies.
3
Signature Offset Blocking Bar
(2) Two per cylinder.
Locks out all but correctly dimpled and
bitted keys.
4
5
The Signature key system consists of a 6 pin cylinder with 2 added blocking bars with shear lines (item 4) which work in conjunction with
6 factory loaded side pins. The side pins depths and locations vary and only work with a corresponding dimpled key.
In addition, two “blocking pins” for a total of 8 are in each plug/barrel. These blocking pins prohibit non Signature keys from being inserted
into the Signature cylinder. Signature keys can operate non-Signature cylinders.
These pins are factory installed and do not need to be serviced.
The Signature key system is ideal for existing facilities that would like to upgrade to a Patented key system with minimal effort.
Signature can easily blended into most existing key systems while allowing the end user one master key that will open both Signature and
non-Signature cylinders.
US Patent # 5,475,998
Signature Offset Blocking Bar Springs
(4) Four per cylinder.
Two per offset blocking bar. Supplies
required spring force to prevent
compromise of offset blocking bars by
anything other than a correctly dimpled
and bitted key.
