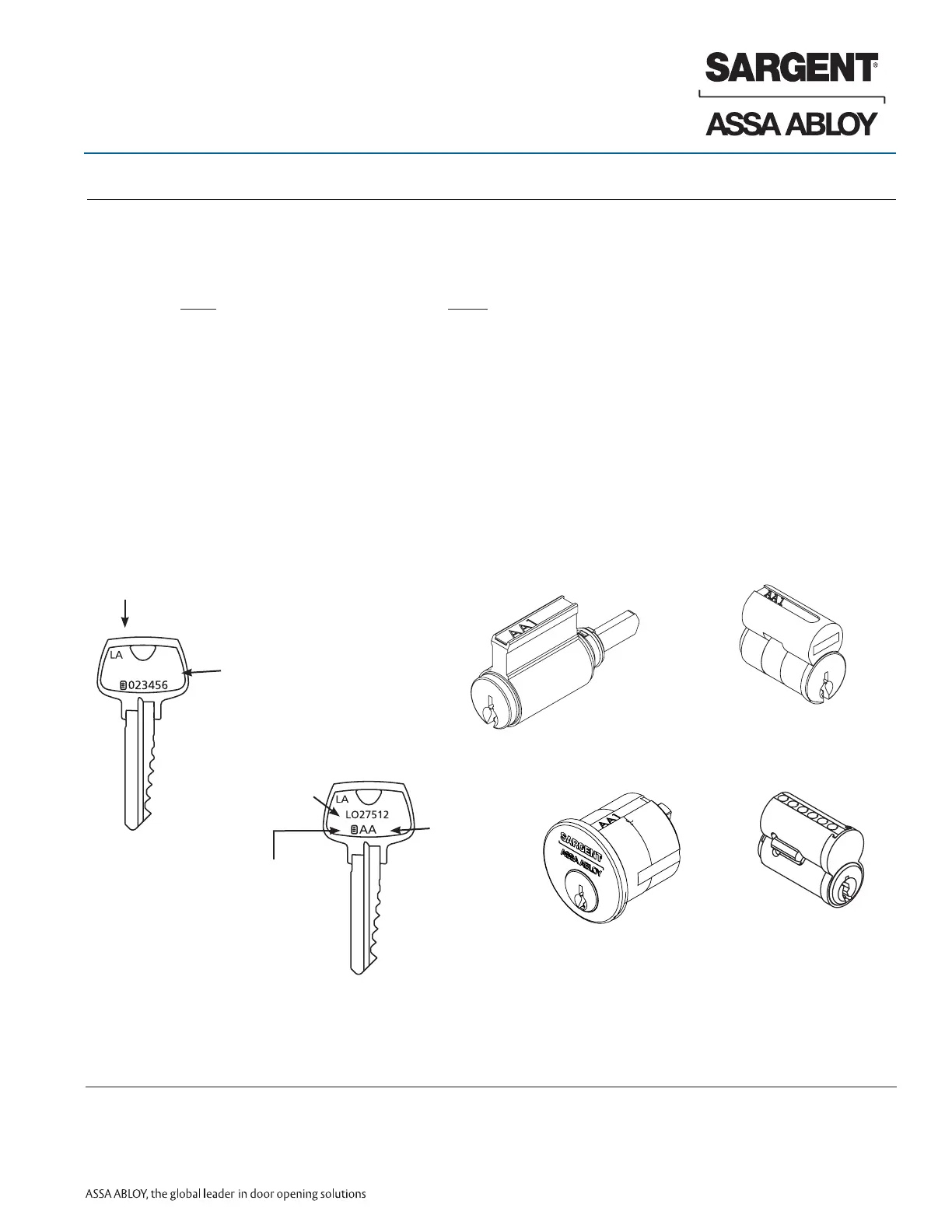

Visual Key Control (Stamping)
To allow for easier key and cylinder identification, SARGENT offers the option for permanent stamping of keys and/or cylinder with industry standard
alpha-numeric keyset symbols.
Non-visual key control stamped change (day) keys include bitting numbers as standard, (Item A) unless specified in keying order lead sheet submitted
with order requesting to be omitted and key set substituted.
SFIC and Signature change keys are stamped with key set symbols as standard.
Master level keys do not include bitting numbers. Master level keys include system register numbers stamped on the first line, and
the standard visual key control designations on the second line (Item B).
Up to 7 characters available for permanent stamping for Visual Key Control
• Key and cylinder identified by industry standard alpha-numeric keyset symbols
• Concealed stamping on mortise and rim cylinders and bored lock cylinders available on the slide only (Item D or I )
• Cylinder-slide stamping available on 5100 and 6300 SARGENT LFIC (removable) cores, bored lock, mortise/rim cylinders (Item E, I D)
• Core side engraving available for 7300B Series up to 7 characters (Item F)
• Special key stampings available, such as “DO NOT DUPLICATE” or “CITY OF PHOENIX”
• XC and Signature cylinders not available with visual plug stamping
• XC and Signature cylinders available with only concealed slide stamping (Item D, E and I) only
• Signature LFIC 10-6300 available with cylinder slide stamping (Item E)
NOTE: SARGENT will stamp alternate identity codes whenever requested. If the Visual Key Control stamping is not wanted, an alternate code for
stamping the individual identity of the Master Level Keys can also be substituted.
Tamper Proof Packaging
For the highest level of security for the end user, Tamper Proof Packaging is used on all Master Keys, Signature key blanks and all restricted key blanks.
This heat sealed shrink wrap identified with “SARGENT Sealed For Your Security” provides assurance of the integrity of the factory generated key system.
Item D
SARGENT
AA1
Item E
AA1
SARGENT
SARGENT
PAT. 6,526,791
Item F
Item B
Example
system
number
Example
of keyset
Symbol to
identify
factory-cut
key
Master Level
Key Stamping
Item A
Bittings or
keyset
Keyway
Change (Day)
Key Stamping
Item I
