3
1-800-727-5477 • www.sargentlock.com

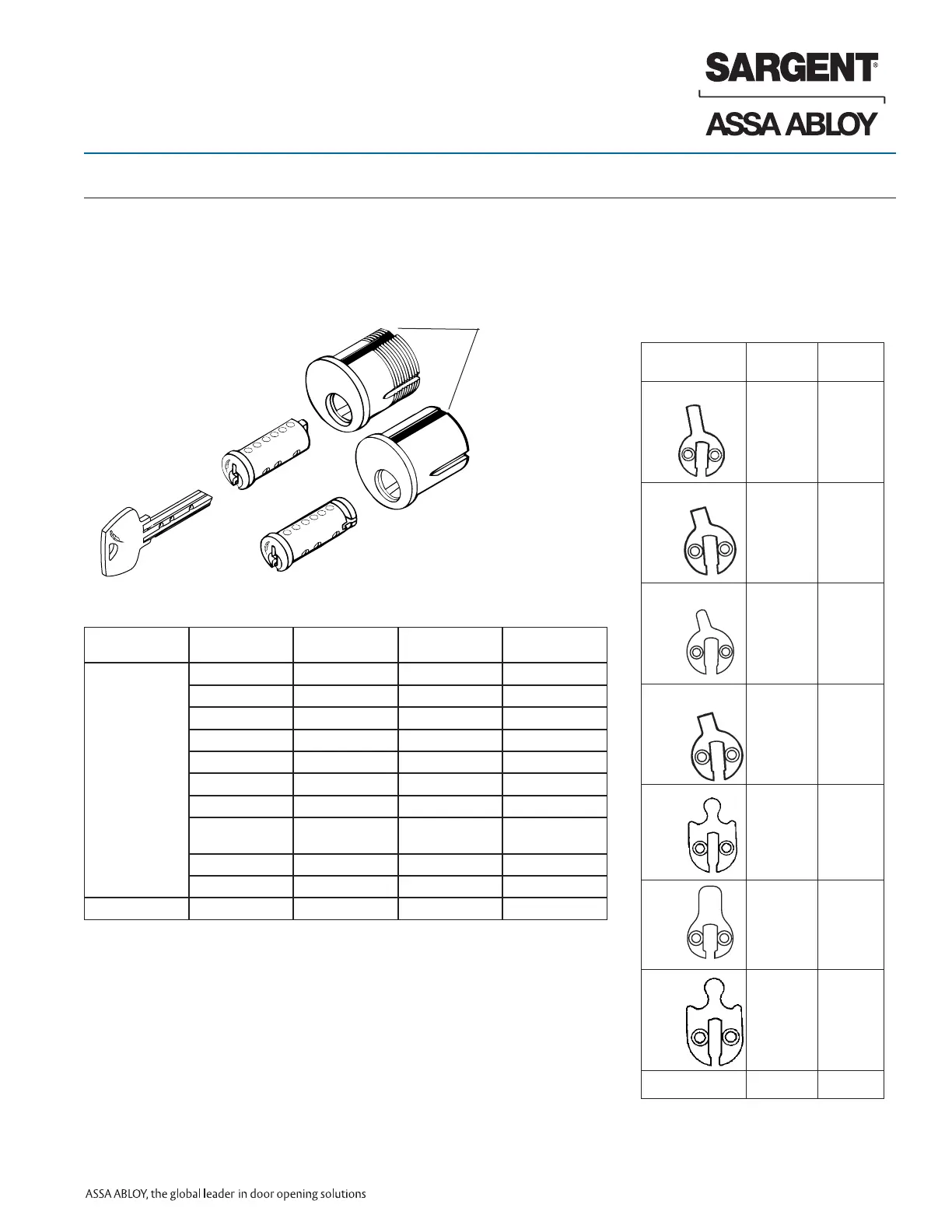

UL437 Mortise & Rim Cylinders
Signature
®
Series
90105:D: 11/15/11 Copyright © 2007, 2009 - 2011, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
Note: Parts on this page reflect only those that are unique to the Signature feature.
For all other cylinder components, refer to the standard cylinder section.
Only the Signature cylinders listed on this page are offered in higher security UL 437 version.
Only Signature Mortise or Rim cylinders are available with the UL option which provides the highest
level of security and is underwritten by Underwriters Laboratories UL 437 standards.
Note: UL437 is not available with 21-, 63-, 78- or LE3 & LE4 mortise trims
Example order for a UL437 Signature Mortise Cylinder is specified: 10-UL-41 x 26D x key set
Mortise/Rim Cylinders
Cams for use with 40 Series
* When cylinders are ordered (without hardware), they are packed with #97 rosette as
standard. Others available, consult Product Catalogs for optional collars.
** Cylinders offered in the following finishes: US 3, 4, 9, 10, 10B, 10BL, 14, 15, 20D, 26, 26D,
32 and 32D.
*** Barrels offered in US 4 and 15 only
Cam Type Suffix
Part
Number
SARGENT Std
Cam
No Suffix 13-0664
ADAMS RITE
(1850)
-101 13-0512
ADAMS RITE
(4070)
-104 13-0513
Inside Cam for
16 & 92
function
Mortsie
Locks
-105 13-0665
Schlage L
-106 13-0938
OPEN
-112 13-0097
SARGENT
(4370)
-113 13-0921
Cam Screws 2 required 01-1121
Sargent offers the Signature Series Mortise and Rim Cylinders with the UL 437 option. UL 437 sets the standard for both drilling and picking resistances.
These cylinders are manufactured to include hardened drill resistant inserts in both the plug/barrel and body along with 6 stainless spool drivers.
UL 437 High Security Signature Cylinders are recommended for doors most likely to be physical assaulted, while the use of standard Signature Cylinders
is more advantageous and less costly for interior doors. Use the 10-UL prefix when required for this option.
The UL cylinders complement Anti Vandal and Security escutcheons offered with our 8200 Series Mortise Locks and 80 Series Exits Devices.
Top Loading of
Cylinders allows for
easier field pinning
(since May 2008)
UL 437 Listed Cylinders
Complete 6 Pin
Assembly **
Barrel***
Body & Slide
Assembly
Cylinder Length
40 Series*
Cylinder
10-41 13-3835 13-3726 1-1/8"
10-42 13-3836 13-3727 1-1/4"
10-43 13-3837 13-3728 1-3/8"
10-44 13-3838 13-3729 1-1/2"
10-46 13-3839 13-3730 1-3/4"
10-48 13-3840 13-3731 2"
10-50 13-3841 13-3732 2-1/4"
10-52 13-3842 13-3733 2-1/2"
10-54 13-3843 13-3734 2-3/4"
10-56 13-3844 13-3735 3"
Rim Cylinder* 10-34 13-3845 13-3847
