Bored Locks Cylinders
Signature
®
Series
90105:D: 11/15/11 Copyright © 2007, 2009 - 2011, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
Functions Lockset Assembly Barrel Body & Slide
Assembly #1 #2
All except 50 function 11 Line 10-C11-1 (13-4147) 13-3851 13-3710
All except 50 function 10, 8L, 7 Lever,
6500 10-C10-1 (13-3713) 13-3851 13-3710
All except 50 function 9, 8 10-C8-1 (13-3827) 13-3850 13-3852
All except 50 function 6 “S”,”N” 10-C6-1 (13-3814) 13-3851 13-3710
All except 50 function 6 “B” 10-C6-1B (13-3815) 13-3851 13-3710
For products not listed, contact factory for availability
Note: Parts on this page reflect only those that are unique to the Signature feature. For all other
cylinder components, refer to the standard cylinder section.
Not Available in UL 437
Cylinders offered in US 4 and 15 only
Bored Locks
Lockset Assembly Barrel #1 Body #2
474, 484 10-C480-1 (13-3857) 13-3849 13-3855
475, 485, 487 10-C480-2 (13-3858) 13-3849 13-3855
486 10-C480-3 (13-3859) 13-3849 13-3855
464 10-C460-1 (13-3861) 13-3849 13-3854
465 10-C460-2 (13-3862) 13-3849 13-3854
Auxiliary Locks (Deadbolts)

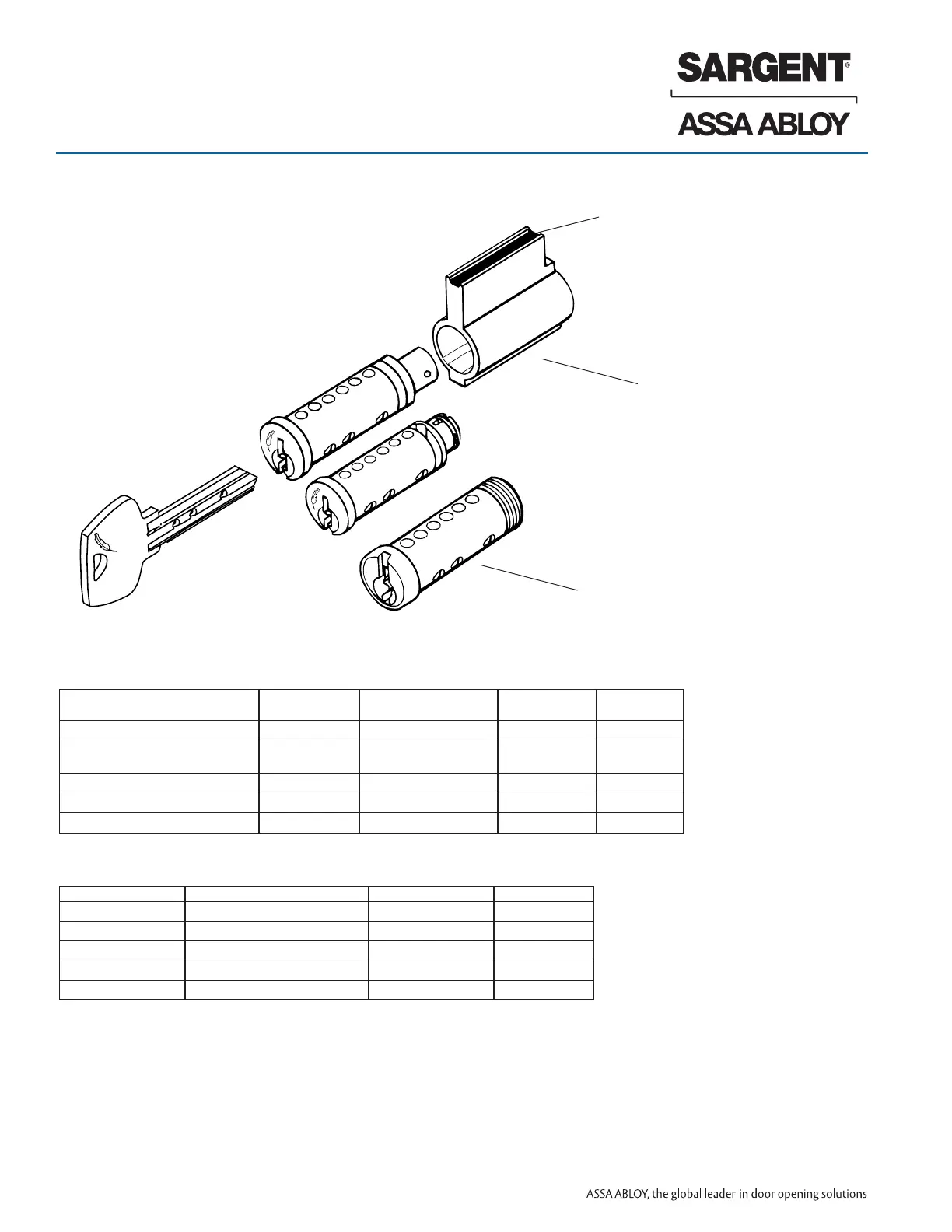

1 Barrel Assembly
2 Body & Slide
Top Loading of Cylinders allows for easier
field pinning (since May 2008)
