432 RC Tool for 6300 LFIC (Removable Core)
5
1-800-727-5477 • www.sargentlock.com
10-6300 LFIC Cylinders
and 6300 Series Tools
Signature
®
Series
90105:D: 11/15/11 Copyright © 2007, 2009 - 2011, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

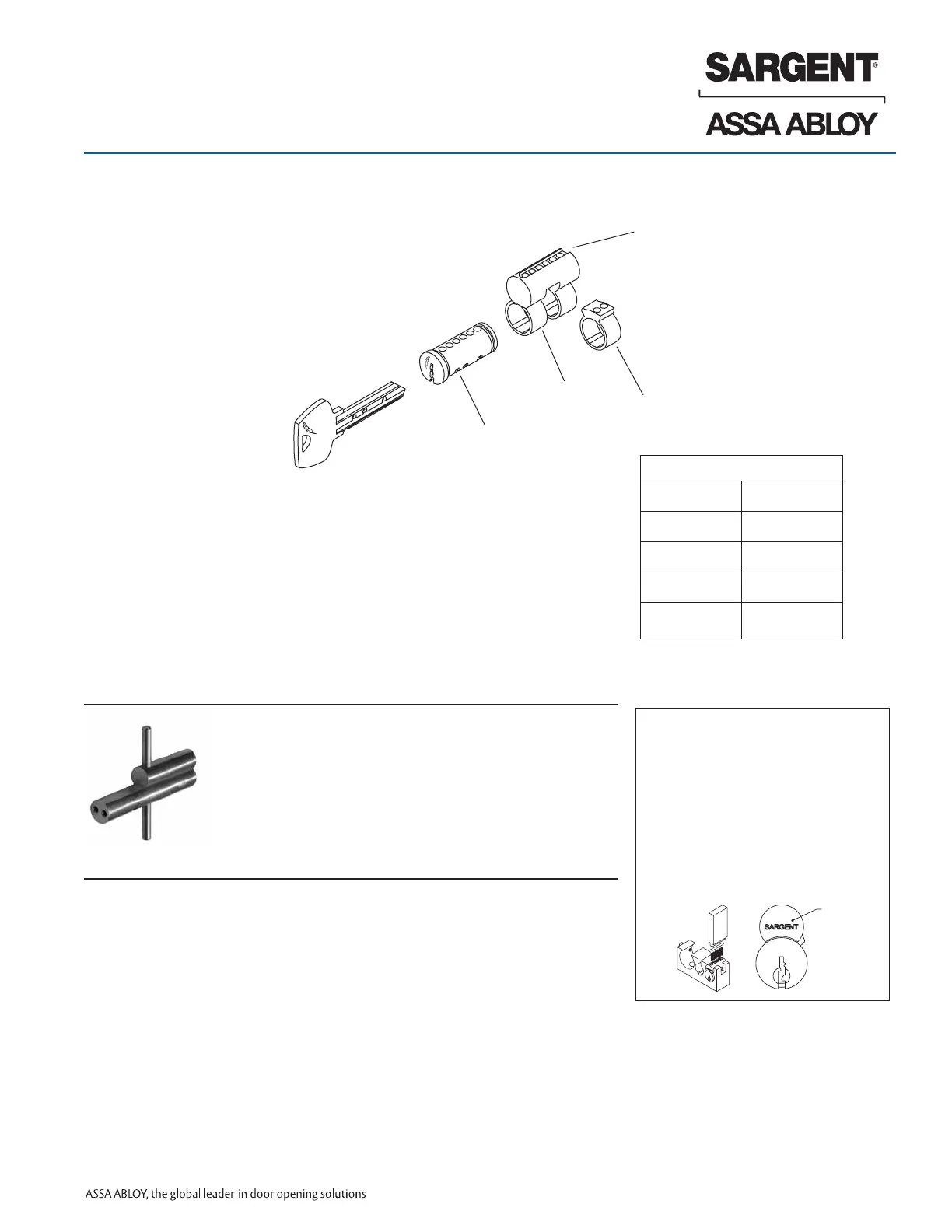

Note: Parts on this page reflect only those that are unique to the Signature feature. For all other
cylinder components, refer to the standard cylinder section.
Note: Cores made prior to March 2006
can be bottom loaded or top loaded with
slide 13-0797, which must be staked.
Note: Not available with the UL option
10-6300 LFIC can be used with:
•The432RCtooltoassistininstallingSARGENTLFIC(RemovableCore)
Mortise Housings. This tool makes it easy to thread a cylinder body into
a Mortise lock and can also be used to check the cylinder function of a
lock before installing the cylinder core.
•Orderas:432RCforthe6300LFIC(Removable)CoreInstallationTool
436-1 Slide Block Kit
437S Signature Keying Kit
•
•
Note:
10-6300 Cores
Complete Core 10-6300 x finish
#1 Barrel 13-0976
#2 Body Only 13-0977
#3 Sleeve 13-1074
Slide
(Not Shown)
13-0797/
13-1341*
1
2
3
Top Loading of Cylinders allows for
easier field pinning (since May 2008)
* Slides for cylinders mfg after 3/06
•10-63-34RimCylinders
•10-63-40SeriesMortiseCylinders(intheseSizes42(1-1/4"),
43 (1-3/8"), 44 (1-1/2") & 46 (1-3/4") (See page 3 for
Cam Types)
•10-63-11Line(T-ZoneLocks)
•10-63-10LineLocks
•10-63-7LineLocks
•10-63-6500Series
•10-63-8&10-63-9
Line Bored Locks
•10-63-758Padlocks
•10-63-858Padlocks
Signature LFIC core cylinders offer a patented cylinder with the convenience of quickly changing cores without lock disassembly.
Consult individual product catalogs for availability.
Ordering examples:
10 Line Cylindrical - 10-63-10G05 LL x 26D x LH key set
8200 Mortise - 10-63-8204 LNL x 26D x RH key set
