Yale
®
Commercial Solutions
45

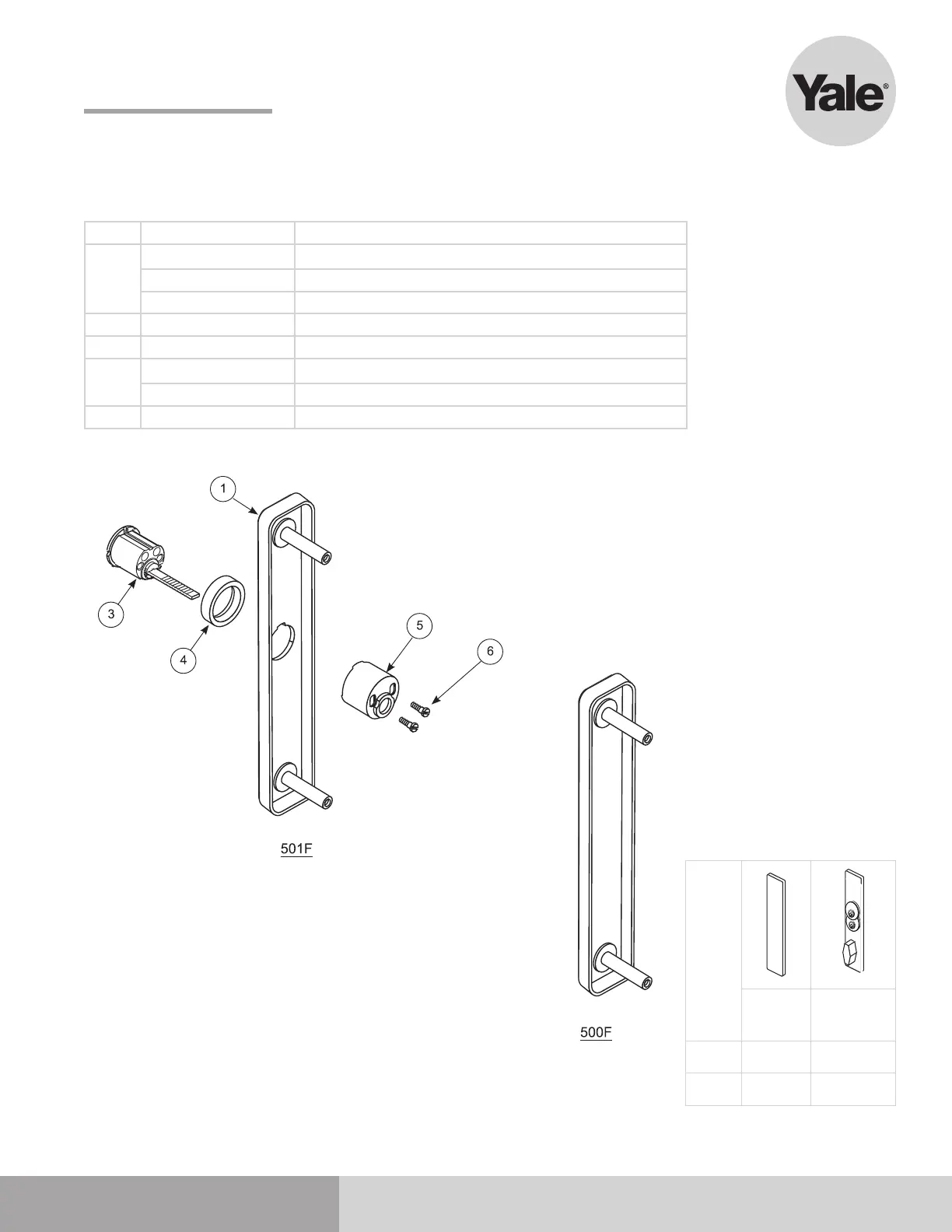

500F, 501F Trim
Copyright © 2015-2020, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved.
Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and
Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.
Item Part No. Description
1
Escutcheon Assembly
60-7200-0151-FIN 500F
60-7200-0123-FIN 501F
3
See Chart Page 56
Cylinder, Rim
4
See Chart Page 56
Collar, Cylinder
5
Housing & Cam Assembly
60-2000-6206-082 501F, Housing, Cylinder
6 60-7000-1235-048 Screw, Cylinder Mounting (2)
(EO)
Blank
Plate
(NL)
Access by
Key
ANSI #
01 03
Trim
500F 501F
