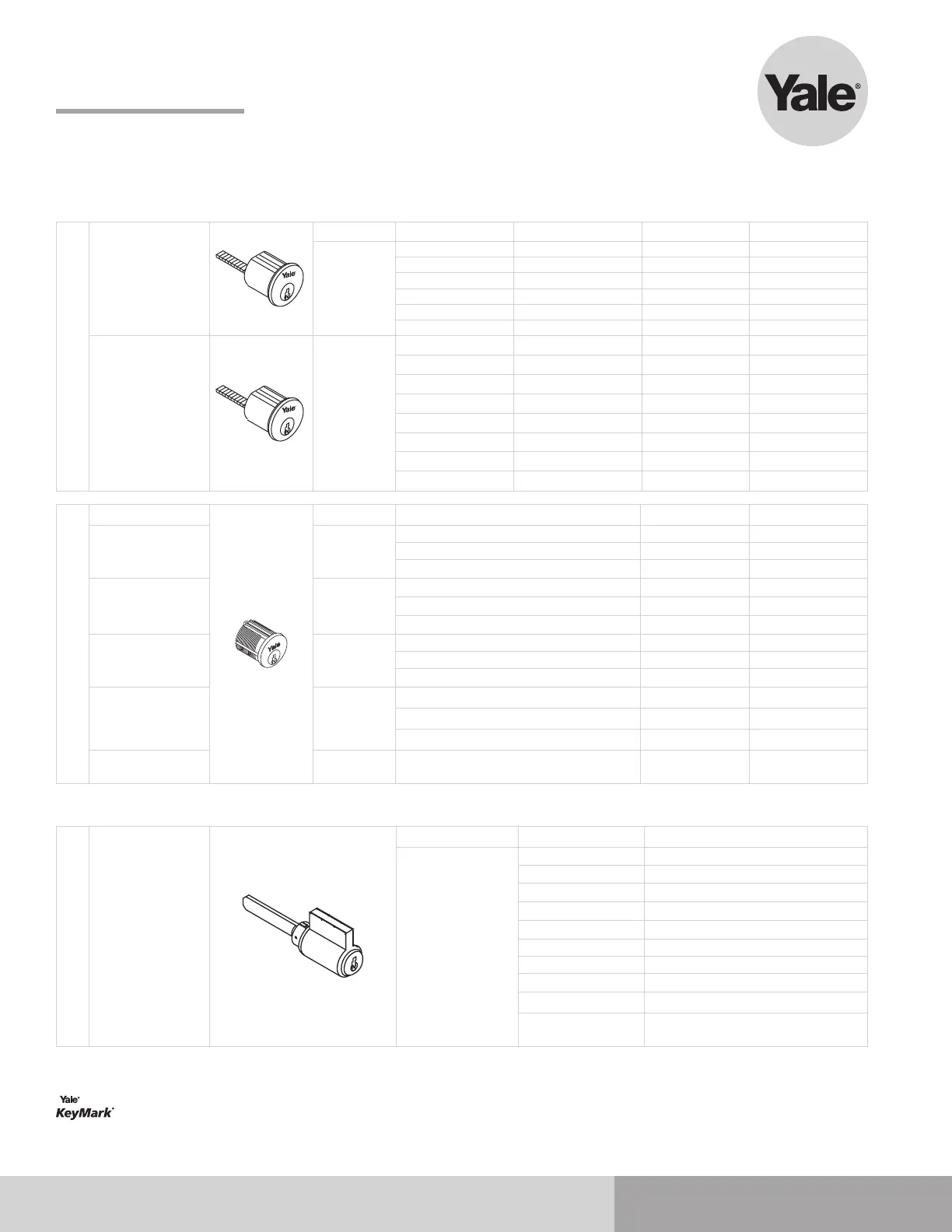

6000 Series Grade 1 Exit Devices
52
Cylinders
Copyright © 2015-2020, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved.
Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and
Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.
As with exit device trim you must order a cylinder to go with a keyed removable mullion. The Yale
®
keyed removable mullion accepts a standard 6-pin 2153 mortise
cylinder with cam #2160. Other cylinders are optional.
Refer to catalog for availability.
Narrow Escutcheon
Trim 420F/480F/500F
Series
Rim cylinders
with special #599
cylinder rings. NOT
AVAILABLE with
U5109 cylinder.
Application: Cylinder(s) Description Cylinder Collar Mounting Screws
6200 Rim
6250
SquareBolt
®
6210 SVR
6220 CVR
1109 / 5109 6-pin Standard / Security 599- .419 60-7000-1235-048
1109 / 5109 7-pin Standard / Security 599- .419 60-7000-1235-048
1193 / 5193 6-pin I.C. / Sec. I.C. 599- .544 10-1193-1018-048
1193 / 5193 7-pin I.C. / Sec. I.C. 599- .544 10-1193-1018-048
1709 6-pin CMK Cylinder 599- .544 34-2311-8738-048
1709 7-pin CMK Cylinder 599- .700 34-2311-8738-048
Escutcheon Trim
620F/630F and 600
Series Electric Trim
Rim Cylinders
6100(F) Rim
6150(F)
SquareBolt
®
7170(F) SVR
7160(F) CVR
1109 / 5109 6-pin Standard / Security ----- 60-7000-1235-048
U5109 6-pin High Security ----- 60-7000-1235-048
1109 / 5109 7-pin Standard / Security KP4 (630F only) 60-7000-1235-048
U5109 7-pin High Security ----- 60-7000-1235-048
1709 6-pin CMK Cylinder 1765- .250 34-2311-8738-048
1709 7-pin CMK Cylinder 1765- .250 34-2311-8738-048
1193 / 5193 6-pin Std. / Sec. I.C. 1765- .250 10-1193-1018-048
1193 / 5193 7-pin Std. / Sec. I.C.
1765- .344
10-1193-1018-048
Application: Cylinder(s) Description Cylinder Collar
Mortise Exit Devices
Escutcheon Trim
650F Series
6130(F)
Mortise
2153 / 5153, 6 or 7-pin, 1-1/2" (38mm) Standard / Security ----
2196 / 5196 6-pin Std. I.C. / Sec. I.C. ----
2197 / 5197 7-pin Std. I.C. / Sec. I.C. KP4
Mortise Exit Devices
Escutcheon Trim
660F/670F Series
6130(F)
Mortise
2153 / 5153, 6 or 7-pin, 1-1/2" (38mm) Standard / Security KP4 (6-pin only)
2196 / 5196 6-pin Std. I.C. / Sec. I.C. KP4
2197 / 5197 7-pin Std. I.C. / Sec. I.C. 1765 - .250
Keyed Removable
Mullions
KRM200/200F
6100(F),
6200 Rim
6150(F), 6250
SquareBolt
®
2153/5153*, 6 or 7-pin, 1-1/8" (29mm) Standard / Security 1765 - .312
2196 / 5196 6-pin Std. I.C. / Sec. I.C. 1765 - .750
2197 / 5197 7-pin Std. I.C. / Sec. I.C. 1765 - .844
Cylinder Dogging
Panic-rated
devices
2153 , 6-pin, 1-1/8" (29mm) Standard ----
2153, 7-pin 1-1/4" (32mm) Optional 7-pin 6765 - .156
2196, 6-pin 1-1/2" (38mm) Std. I.C. 6-pin 6765 - .406
SecureX™ & Alarm
Kit
All Exit
Devices
2197, 7-pin 1-11/16" (42mm) Std. I.C. 7-pin 1765 - .594
Knob or Leverset
Trim 440F/540F
Series Trim
Keyed trim uses
Yale
®
cylindrical lock
cylinders.
Application: Cylinder(s) Description
1802 6-pin Lever Cyl. (Std.)
1802A 7-pin Lever Cylinder
1210 6-pin I.C. Lever Cylinder
1220 7-pin I.C. Lever Cylinder
5802 6-pin Security Lever Cyl.
5802A 7-pin Security Lever Cyl.
5210 6-pin I.C. Security Cyl.
5220 7-pin I.C. Security Cyl.
107S Adaptor kit for Schlage
®
Cyl.
“B” Trim Prefix
Trim with lever for Best
®
, Arrow
®
or Falcon
®
SFIC cylinder (specify 6 or 7-pin)
