Associated Research SC6540 User Manual

23
The high voltage cable (p/n HS-8-12) is used to connect from the high
voltage rear output connector of the HypotULTRA / HypotUTLRA III to the
rear high voltage input of the SC6540.
The return cable (p/n HS-8-11) is used to connect from the return rear
connector of HypotULTRA / HypotUTLRA III to the rear panel return
connection of the SC6540.
An additional return cable (p/n HS-8-11) is used for Continuity testing. The
return cable is used to connect the rear Continuity connector of
HypotULTRA / HypotUTLRA III to the rear Current input of the SC6540.
Eight high voltage connectors (p/n HS-8-13) are provided with a 100 ft. reel
of cable and assembly instructions so that each user can assemble the
lengths of the high voltage cable to meet their specific needs.
Under certain conditions high voltage can appear on the
cabinet of the SC6540. The ground terminal on the rear
panel of the SC6540 must be connected to a good earth ground to ensure
operator safety.

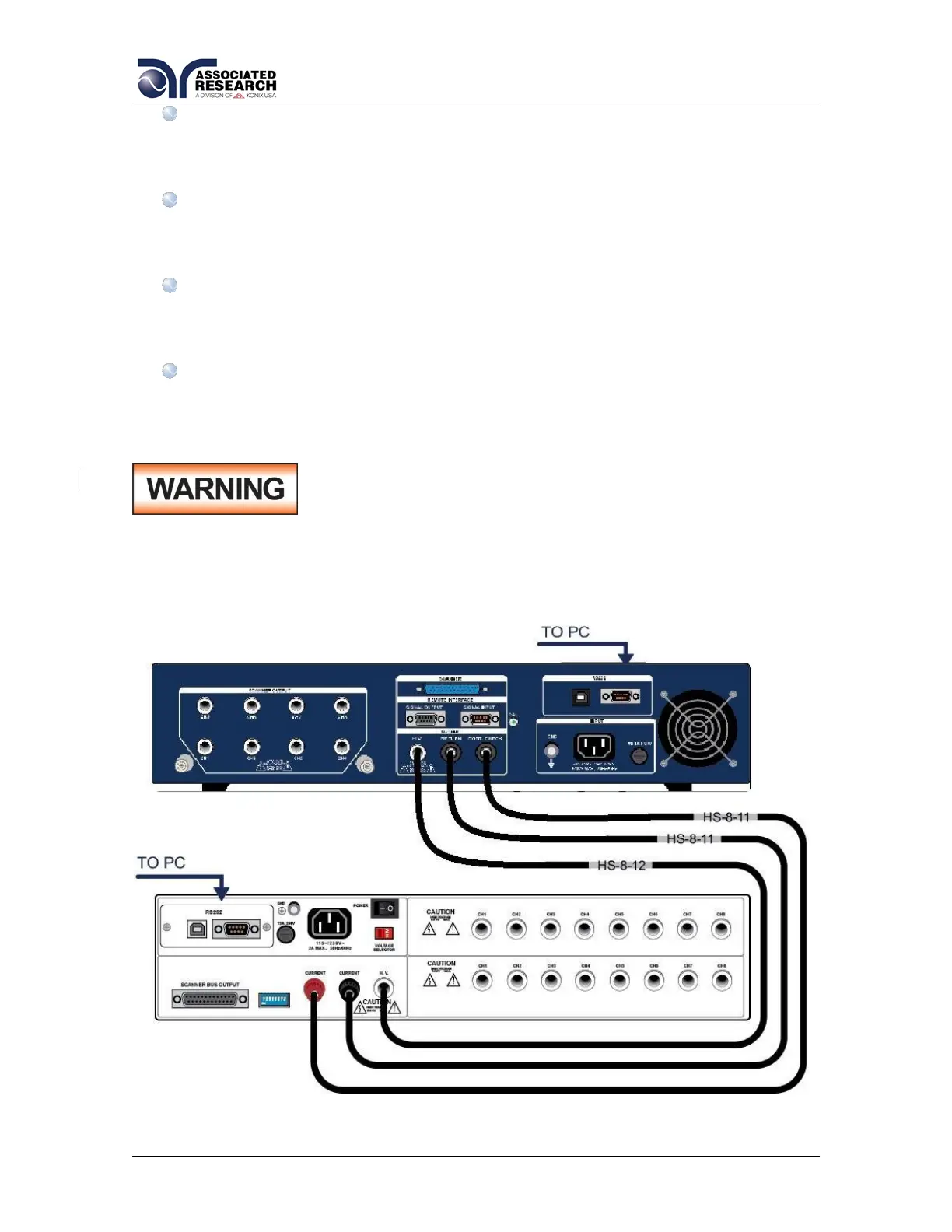

4.2.2. Connection Diagrams
HypotULTRA and SC6540 Main
