The following setup procedure will refer to setup through the HypotULTRA III setup
menu:

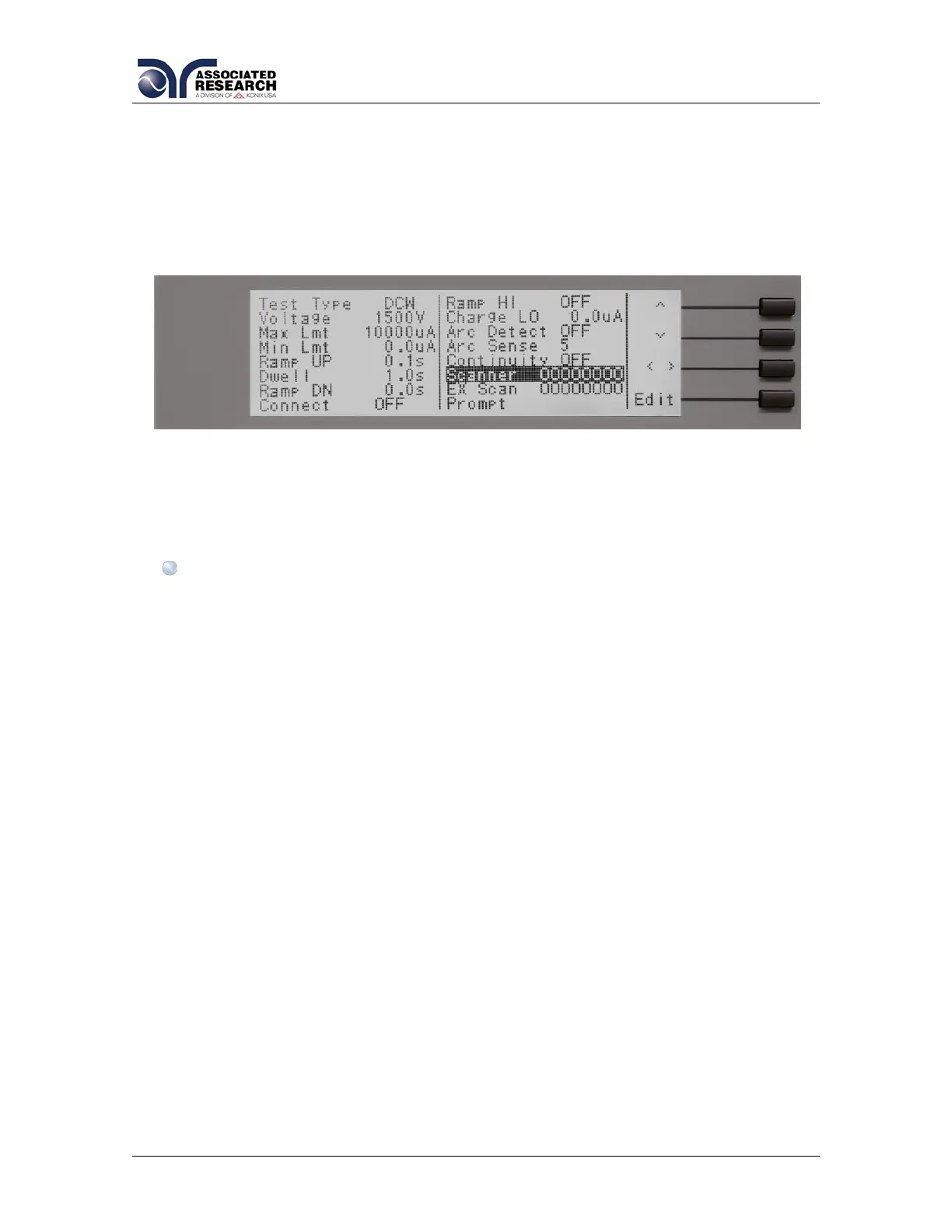

From the Test Parameter Review screen (ACW, DCW, CONT, or IR) you can
scroll to find the Scanner settings. Below is an example of the ACW Withstand
Test Parameter Review screen.
The above menu shows a HypotULTRA III with 16 Scanner channels (8 internal
and 8 external). The “Scanner” parameter in the menu pertains to an internal 8-
channel Scanner and the “Ex Scanner” parameter pertains to an 8-channel high
voltage SC6540 Scanner.
NOTE: The HypotULTRA III can only control up to one external 8-channel
scanner (model HN). To control more than 8 external channels, automation
software must be used.
Navigate the Setup Test Parameters screen using the arrow keys located on the
right side of the HypotULTRA III LCD and select the “Edit” soft key to modify the
Scanner channels.
After pressing the “Edit” soft key, the HypotULTRA III will display the Scanner
Settings Edit screen. Using the four soft keys located next to the HypotULTRA
LCD, set the 8 channels of the Scanner to one of three different states:
H (High) – High voltage output channel for a high voltage test or current output for
a continuity test.
L (Low) – High voltage return channel for a high voltage test or a current return for
a continuity test.
O (Open) – Channel is neither an output nor a return.
