Associated Research SC6540 User Manual

48

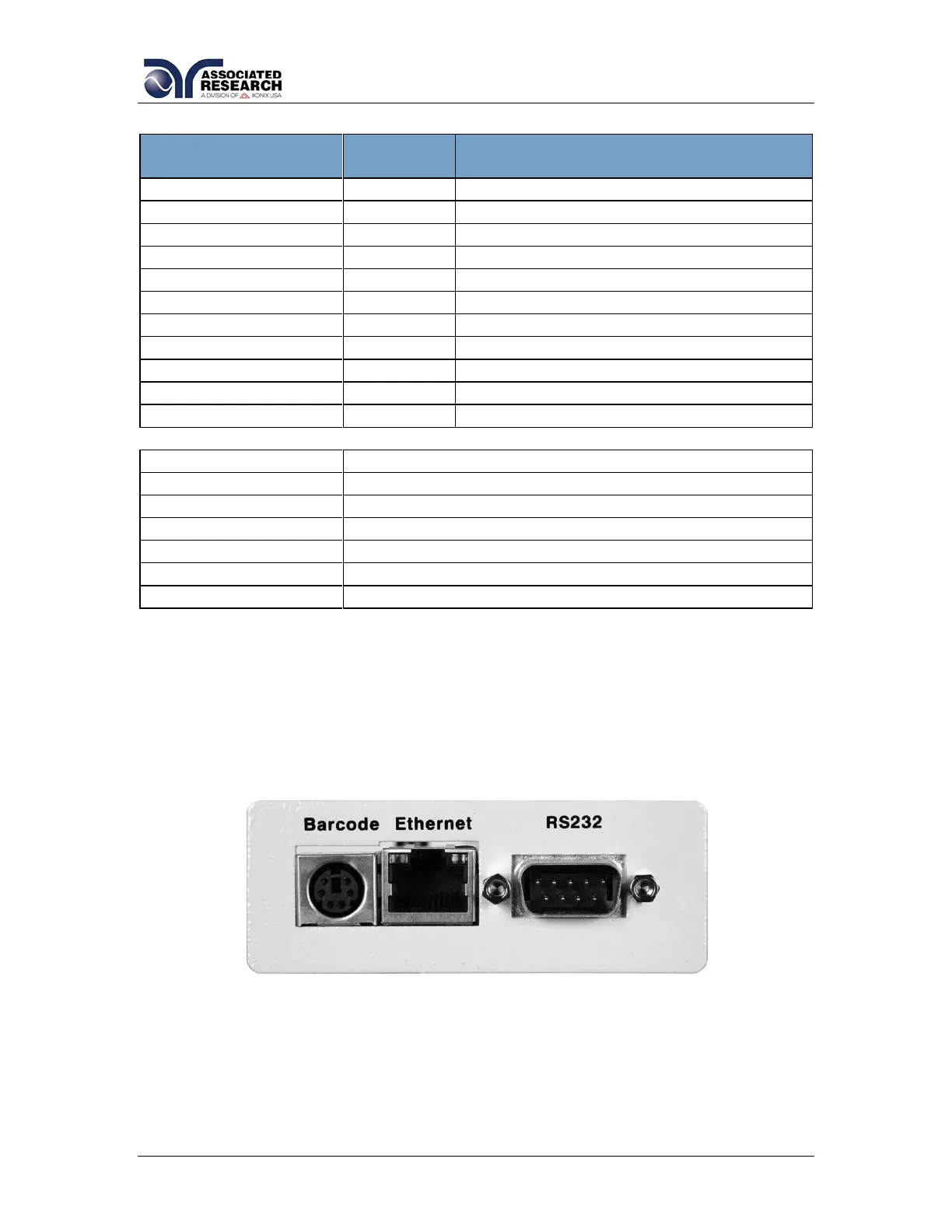

GPIB 488.1 INTERFACE FUNCTIONS
INTERFACE
FUNCTION
SUBSET
DESCRIPTION
Source Handshake
SH1
Complete Source handshake capability
Acceptor Handshake
AH1
Complete Acceptor handshake capability
Talker
T6
Talker functions (unaddress if MLA)
Listener
L4
Listener functions (unaddress if MTA)
Service Request
SR1
Complete Service request capability
Remote Local
RL0
No remote/local capability
Parallel Poll
PP0
No parallel poll capability
Device Clear
DC1
Complete Device clear capability
Device Trigger
DT0
No device trigger capability
Controller
C0
No controller capability
Electrical Interface
E2
Three-state drivers
Controllable Items
Test and Reset control.
Setting of test parameters for tests.
Reading of instrument status and test results.
Data Codes
ASCII
Delimiter
NL (+ EOI)
5.5. Ethernet Interface
The Ethernet Interface option provides RS-232 and Ethernet communication
interfaces. The barcode port is non-functional when used with an SC6540
scanner.
The Ethernet Card has three input/output ports, shown in the following figure:
The Ethernet port is for use with a standard CAT-5 Ethernet cable and may be
connected to any compatible PC. The 9-pin D-type subminiature connecter
labeled “RS232” is for connection of the SC6540 to an RS-232 communication
bus. All of the Ethernet commands (excluding the query commands) will respond
with the 06 hex (6 decimal) Acknowledge (ACK) ASCII control code if the transfer
