The SC6540 Scanner channels can be set as High (H) for high voltage or
Continuity testing output, Low (L) for the return connection, or Open (O) for OFF.
Channel setup is done using the OMNIA menu or accompanying automation
software. For information on SC6540 setup through Associated Research’s
Autoware Automation Software, consult the Autoware S8456 manual.
The following setup procedure will refer to setup through the OMNIA setup menu:

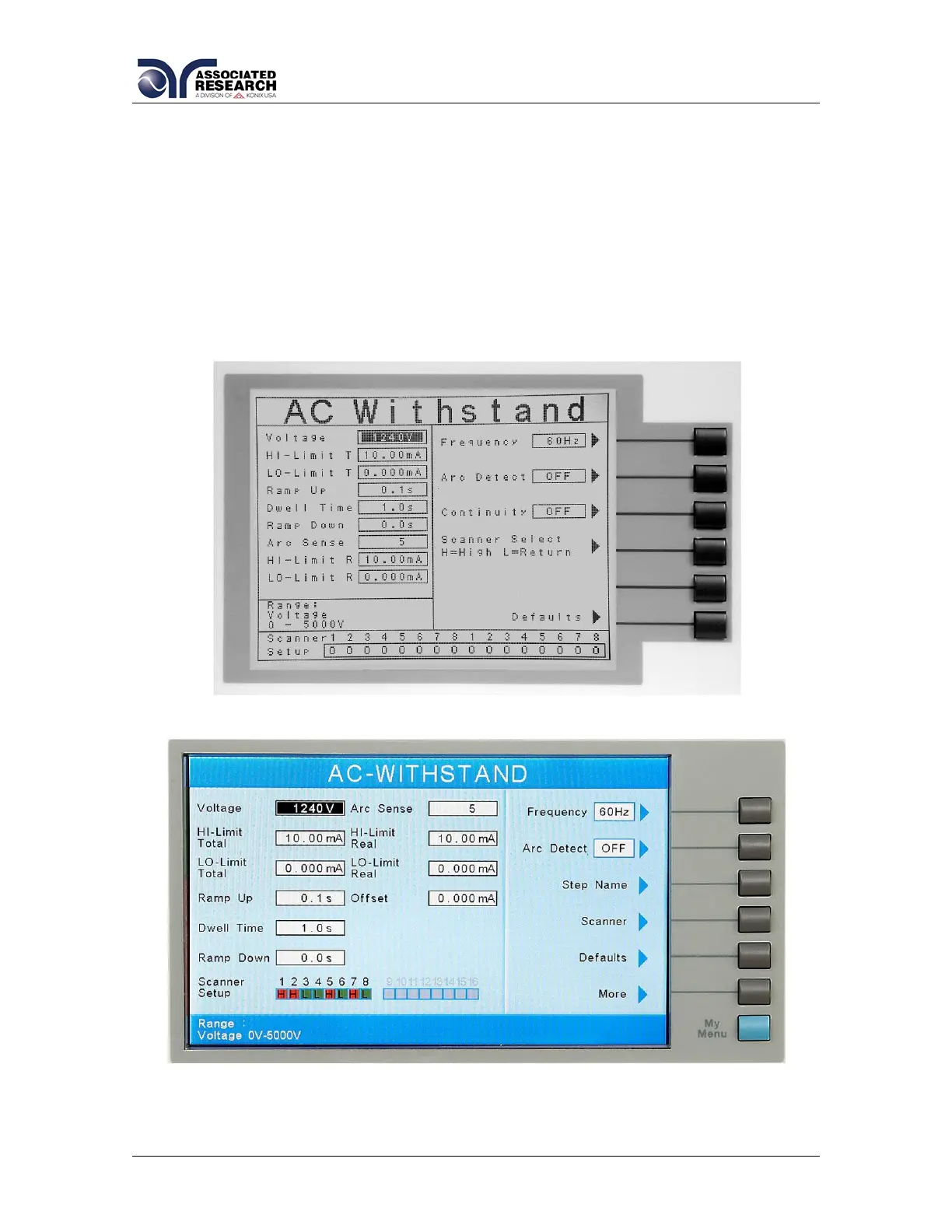

If you are in the Setup Test Parameters screen (ACW, DCW, IR, Ground Bond or
Continuity), you will find the Scanner settings. Below is an example of the ACW
Withstand Test Setup Menu.
