Associated Research SC6540 - Page 42

38

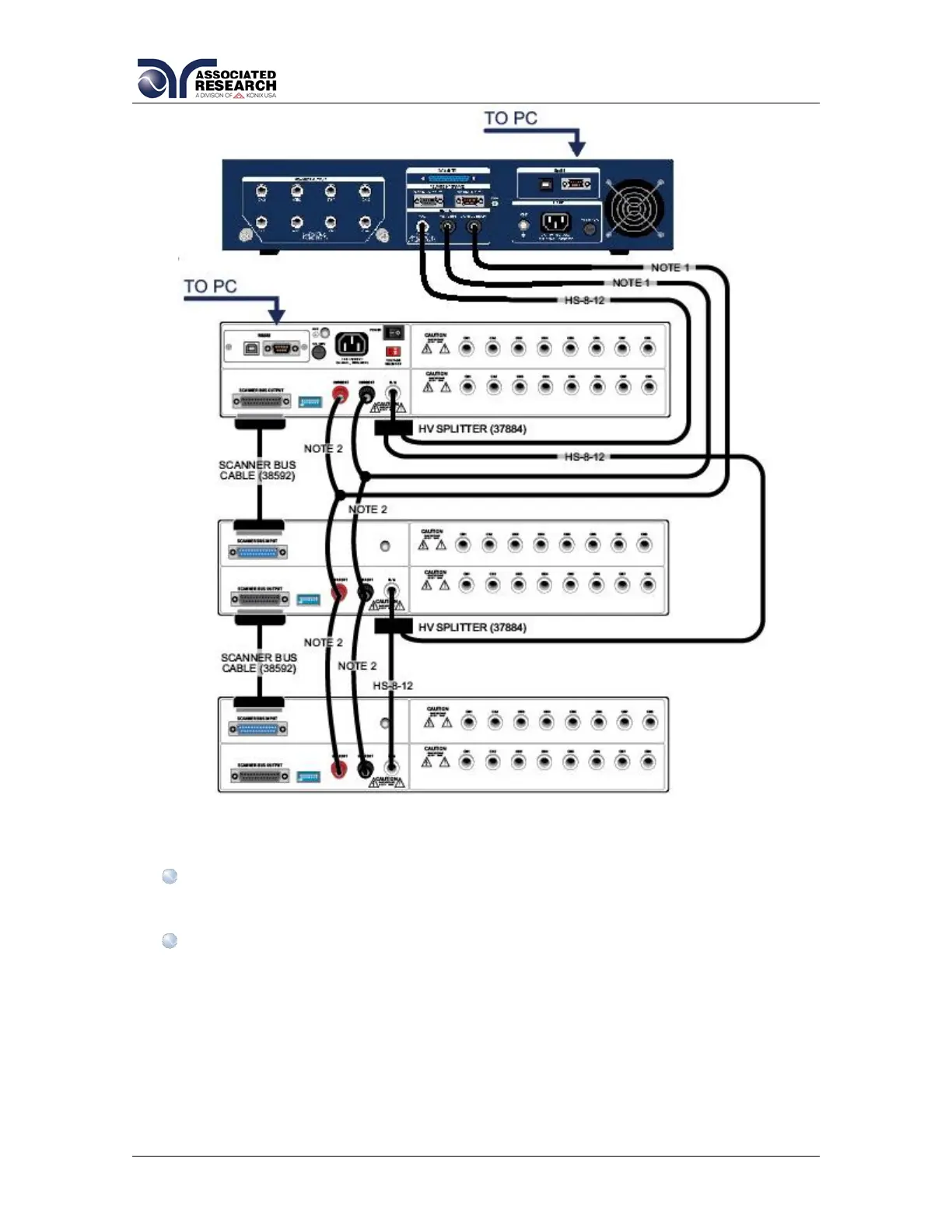

HypotULTRA and SC6540 Scanner Interconnection Example with 1 Main and
2 Secondarys
Refer to the connection diagram of the applicable safety tester for the
required cabling.
Use supplied Hook-Style Crimp Lugs and user specified wire for Scanner-
to-Scanner interconnection.
