Astoria 2GR - Page 100

TECHNICIANS' manual
102 of 108
15.3.2 PLUS 1-2 type (GIEMME type) system

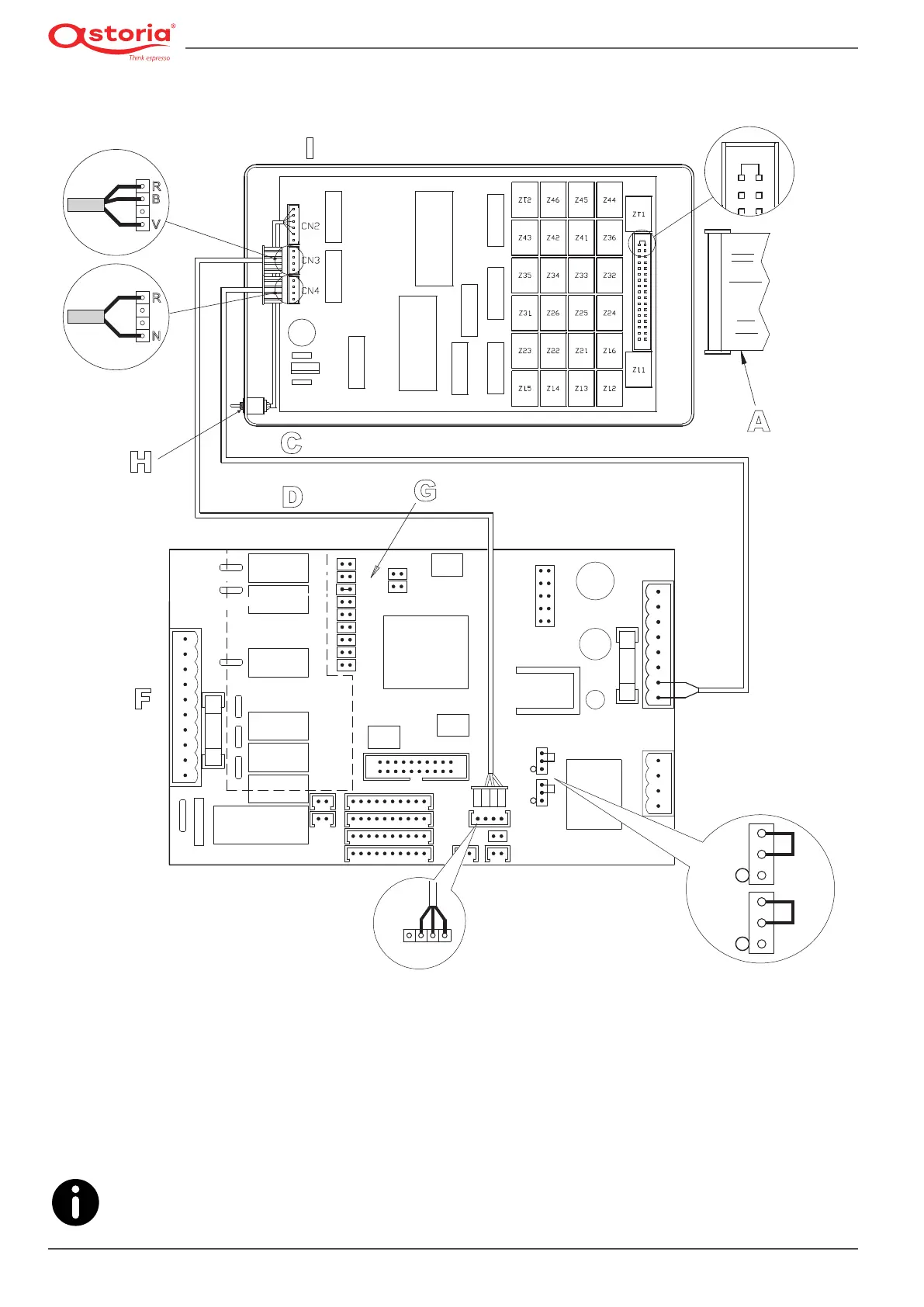

Components to be used for the INTERFACE - COFFEE MA-
CHINE connection:
• Code 26015 26-relay interface
• Code 22550 Hartwall cable
• Code 22551 Power cable
• Code 22555 4-pole serial transmission cable
Interface kit code WY83260002R.
I
C
D
G
F
H
R
B
V
R
N
A
34 33
34
33
2 1
08/05/05
IC1
JP12
JP14
JP12
JP14
CN4
JP1
CN2
R (Vcc+)
N (GND)
V
B
R+5Vcc
