Astoria 2GR - Data and CE Marking

TECHNICIANS' manual
17 of 108

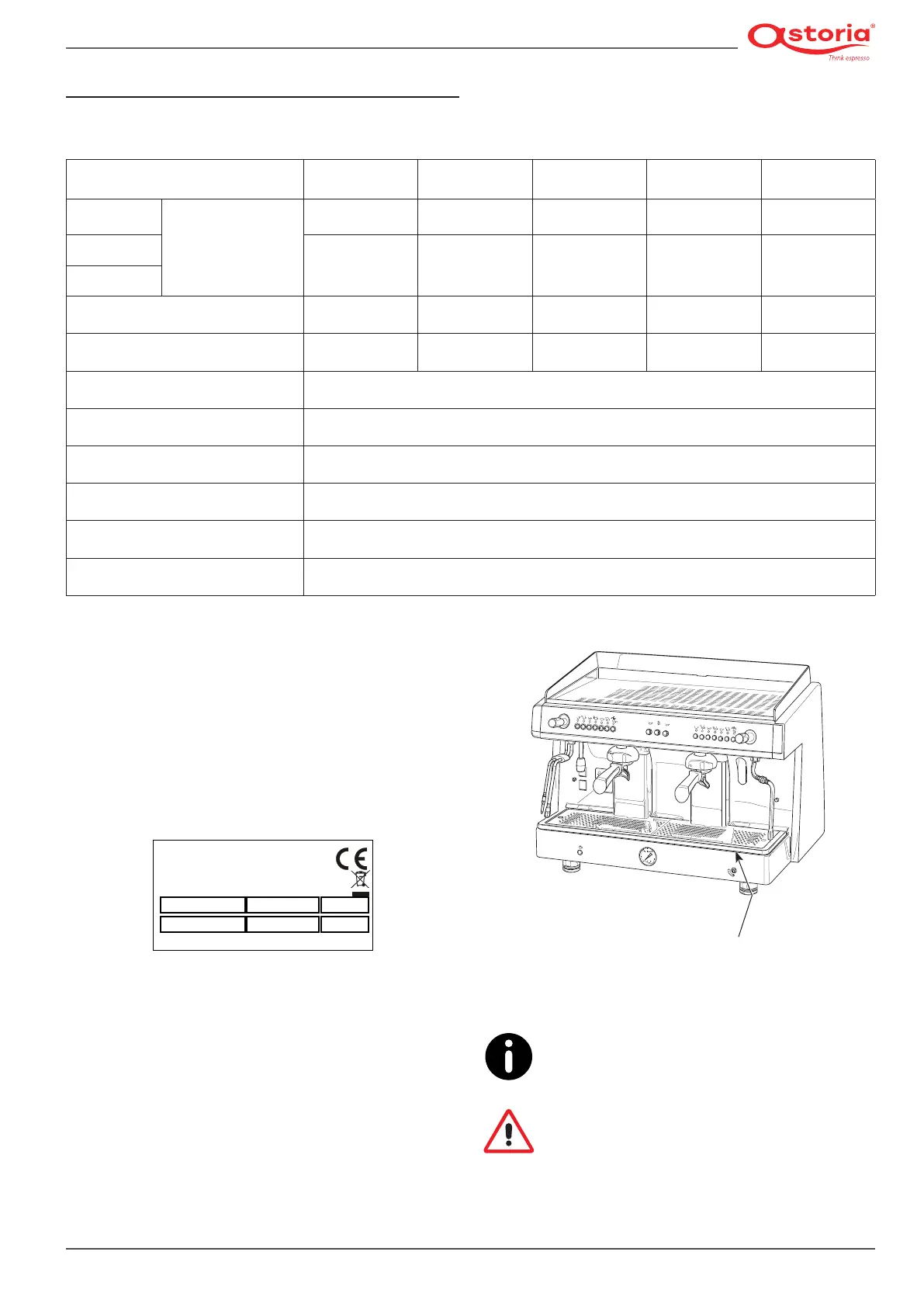

2.9 Data and marking
The machine’s general technical data is provided in the fol-
lowing table:
TECHNICAL DATA TABLE 1GR COMPR. 2GR 3GR 4GR
120 V
Power
2000-2330 W 2600-2930 W 2600-2930 W --- ---
220-240 V
2500-3500 W 3000-6650 W 3000-6650 W 4500-6700 W 5000-7350 W
380-415 V
Frequency 50-60 Hz 50-60 Hz 50-60 Hz 50-60 Hz 50-60 Hz
Heating unit 6-8 L 7 L 10.5-14 L 17-21 L 23 L
Safety valve calibration 0.19 MPa (1.9 bar)
Heating unit operating pressure 0.08 - 0.14 MPa (0.8 - 1.4 bar)
Mains water pressure 0.15 - 0.6 MPa max. (1.5 - 6 bar max.)
Coffee dispensing pressure 0.8 - 0.9 MPa (8 - 9 bar)
Working environment temperature 5 - 35°C 95° MAX. R.H.
Sound pressure level < 70 dB
The nameplate is afxed
under the drain tray
In compliance with directive 2006/42/CE, the machine is
marked with the CE code with which the manufacturer de-
clares under his responsibility that the machine is safe for
persons and things.
Alternativemarkingscanbeafxedaccordingtothetarget
markets, provided they comply with current product regula-
tions.
The nameplate which provides the appropriate markings,
identicationdataandspecictechnicaldata,isafxedun-
der the drain tray.
An example of a nameplate is provided below.
When contacting the Manufacturer, always provide the fol-
lowing information:
• S/N - machine serial number.
• Mod. - machine model.
• Y - year of manufacture.
The appliance data can also be found on the label located on
the machine's packaging.
It is forbidden to remove or modify the name-
plate. Should it deteriorate or become illegible,
contact the Manufacturer.
To correctly connect the machine to the electric
mains, refer to Chap. "13. WIRING DIAGRAMS" on
page 59.
Via C. Bardini
,
1 SUSEGANA
(
TV
)
- ITALY
Tel. +39.0438.6615 Fax +39.0438.60657
MADE IN ITALY
W
S/N:
Mod.
Hz
Y
V
CMA MACCHINE PER CAFFÈ S.r.l.
MARCHIO COMMERCIALE
