Astoria 2GR - Dispensing Hot Water

TECHNICIANS' manual
40 of 108
6.9.1 Control knob version

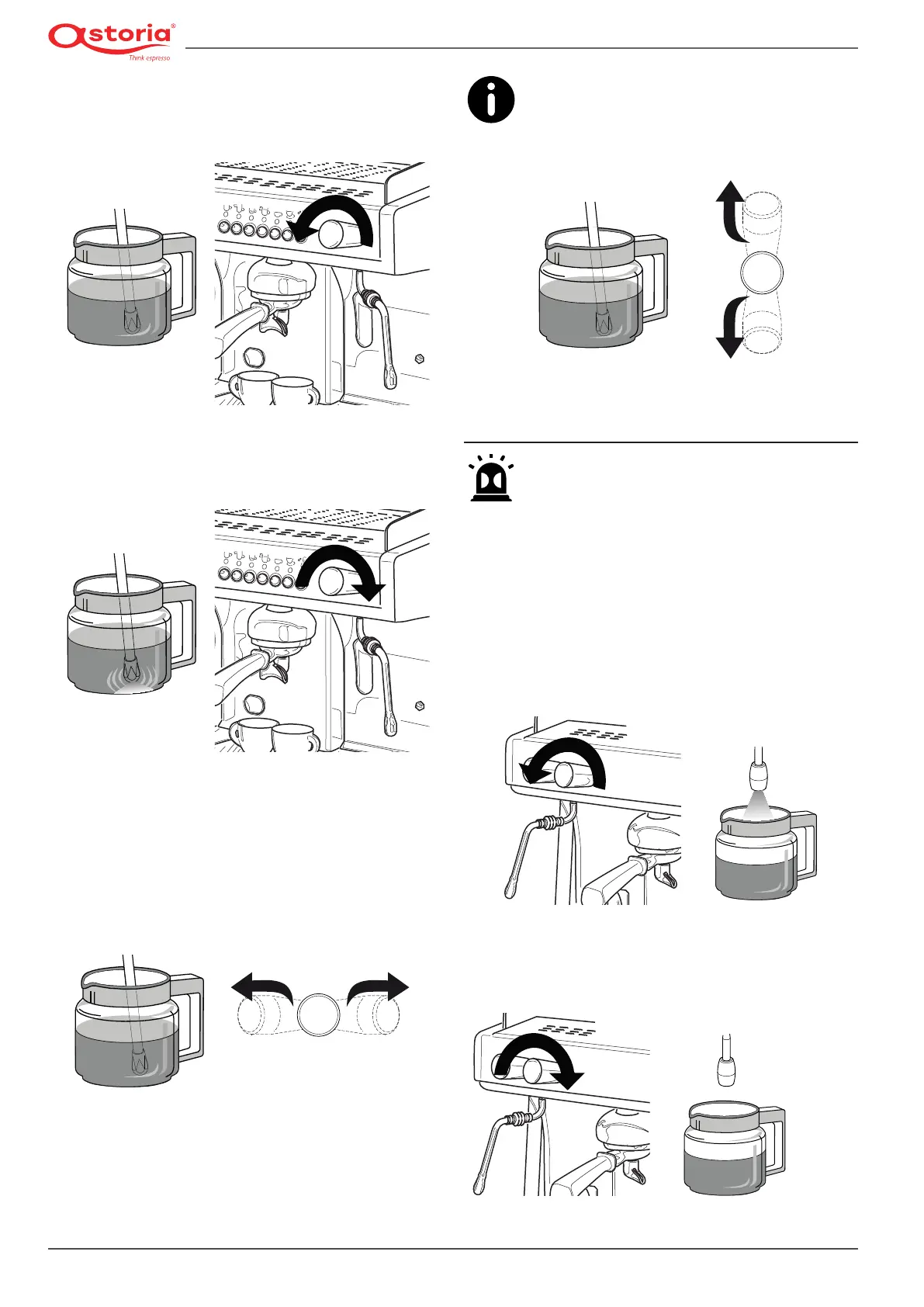

• Immerse the steam nozzle into the liquid to be heated.
• Rotate the valve knob anticlockwise.
• The quantity of steam dispensed will be proportional to
how open the valve is.
• To stop dispensing, turn the valve’s knob clockwise.
6.9.2 Lever knob version
• Immerse the steam nozzle into the liquid to be heated.
• Move the valve lever horizontally to start dispensing steam
(it can be moved in any horizontal direction, as shown in
thegure).
OFF
Automatic
return
Automatic
return
• The quantity of steam dispensed will be proportional to
how far the lever has been moved.
• To stop dispensing steam, release the lever; it will auto-
matically return to its central position.
To continuously dispense steam, move the lever
in a vertical direction until it reaches the locked
position, by hooking it in the constantly open po-
sition (it can be moved in either vertical direction, as
shown in the gure).
Stop
Stop
OFF
Move the knob back to its central position to stop dispensing.
6.10 Dispensing hot water
Danger of scalding. Do not direct hot water to-
wards hands or other parts of the body. Do not
touch the hot water nozzle with bare hands; use
the appropriate PPE.
The hot water dispensing method is different for each ma-
chine type; therefore,the instructionsspecic to the model
being used must be followed.
6.10.1 AL - AEP” versions
• Place the jug under the hot water nozzle.
• Rotate the valve knob anticlockwise.
• The quantity of hot water dispensed will be proportional
to how open the valve is.
• When the desired quantity of water has been dispensed,
turn the valve knob clockwise to stop dispensing.
