Astoria 2GR - Page 11

TECHNICIANS' manual
13 of 108
General safety features
The Technician must be aware of accident risks, safety devices
and the general safety rules set forth in EU directives and by
the legislation of the country where the machine is installed.
The Technician must know how all the machine's devices
work. They must also have fully read and understood this
Manual. Maintenance work must be performed by the Techni-
cian after the machine has been properly prepared. The tam-
pering or unauthorised replacement of one or more machine
components, the use of accessories which modify its use and
the use of materials other than those recommended in this
Manual, can cause accidents.

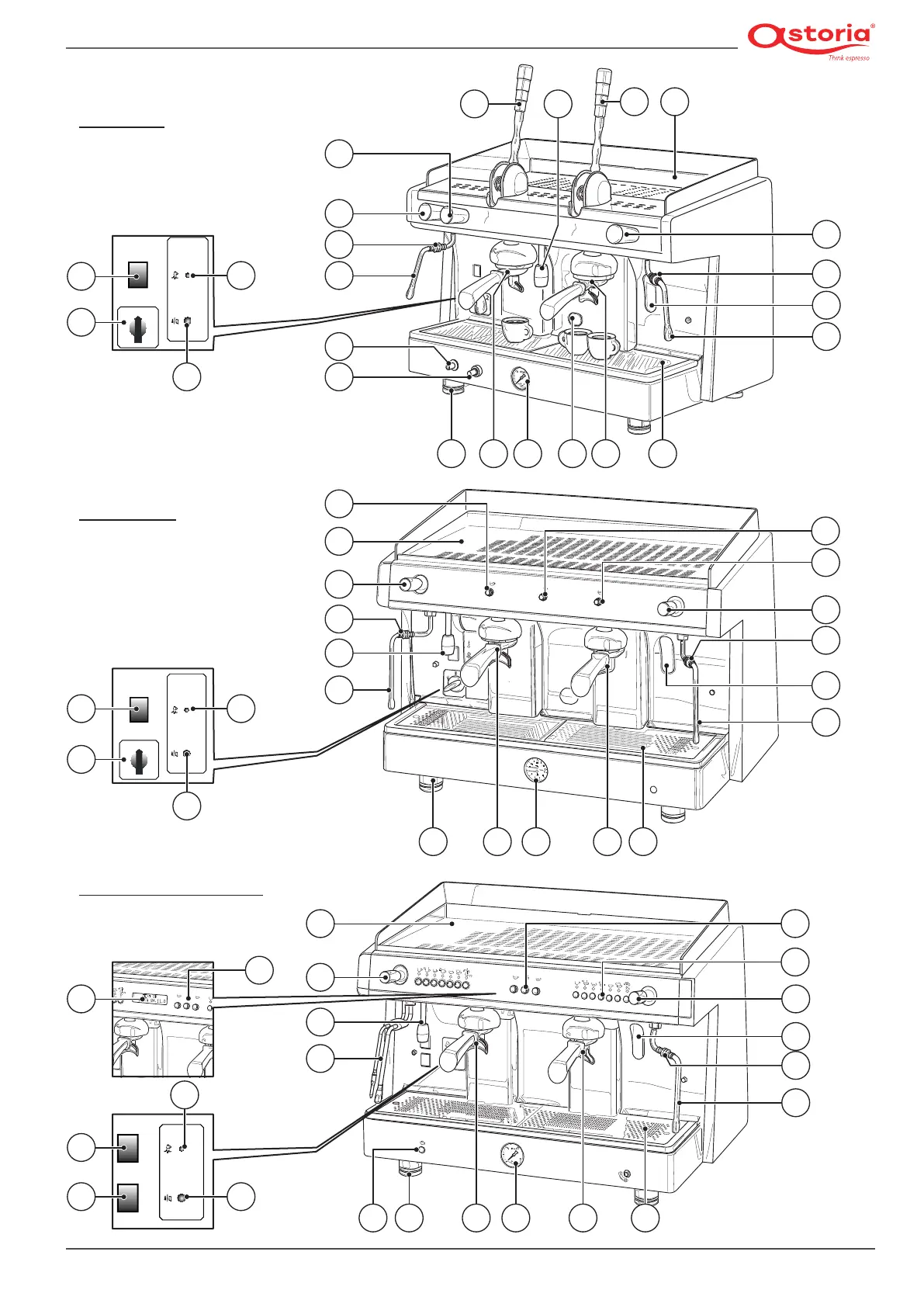

2.5 Machine diagram
1. Cup warmer shelf
2. Group lever
3. Heating unit water level window (in some versions, the
level window is replaced by a green indicator light)
4. Pressure gauge
5. Steam knob
6. Scald protection
7. Steam nozzle
8. 2-cuplterholder
9. Adjustable foot
10. Hot water nozzle
11. Gas burner inspection window (optional)
12. 1-cuplterholder
13. Gas safety (optional)
14. Gas ignition button (optional)
15. Cup holder grille
16. Power switch
17. Machine on indicator light
18. Hot water knob
19. Manual dispensing pushbutton panel (AEP)
20. Pushbutton panel (SAE)
21. Display
22. Manual and water dispensing buttons (DISPLAY)
23. Automatic steam wand pushbutton panel (optional)
24. Automatic team wand nozzle (optional)
25. Machine/cup warmer indicator lights
26. Cup warmer switch
27. Blindlter
28. Presser
29. Cleaning brush
27
28
29
Display
1 2
0
1 2
0
AL version
AEP version
SAE - DISPLAY version
1
2
3
6
7
2
6
6
6
5
3
5
7
25
25
17
3
5
7
4 15
49
4923 8 12 15
8 12 15
812 119
17
17
25
5
1
7
5
18
19
19
19
22
22
20
10
10
24
21
26
16
16
16
26
26
6
7
14
13
5
1
10
