TECHNICIANS' manual
27 of 108

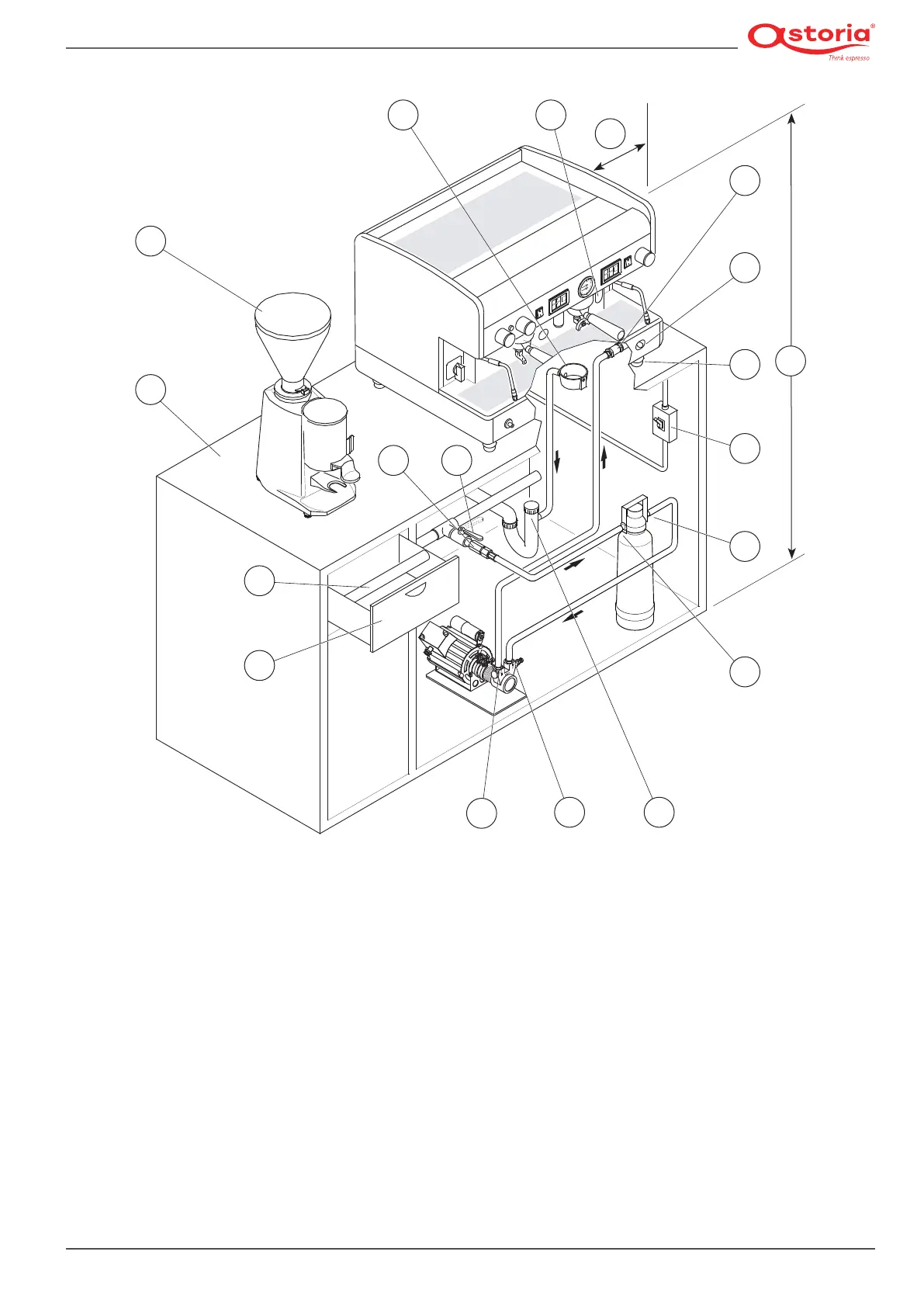

1. Support base
2. Grinder-dispenser
3. 50 cm minimum distance between
the machine and the wall
4. Drain tray
5. Heating unit water level
6. Water mains inlet
7. Manuallyllingwithwater
8. Adjustable feet of the machine
9. Electrical mains switch
10. Waterlterinlet
11. Waterlteroutlet
12. Sewer drain
3
19
5
7
6
8
9
10
17
18
16 15
11
14
1213
4
2
1
13. Motor pump inlet
14. Motor pump outlet
15. Water mains valve
16. Water mains check valve
17. Used coffee grounds drawer
18. Supportforknockingoutthegroundsinthelterholder
19. The minimum height of the machine top
fromtheoormustbe150cm
