Astraada DRV-24 User Manual

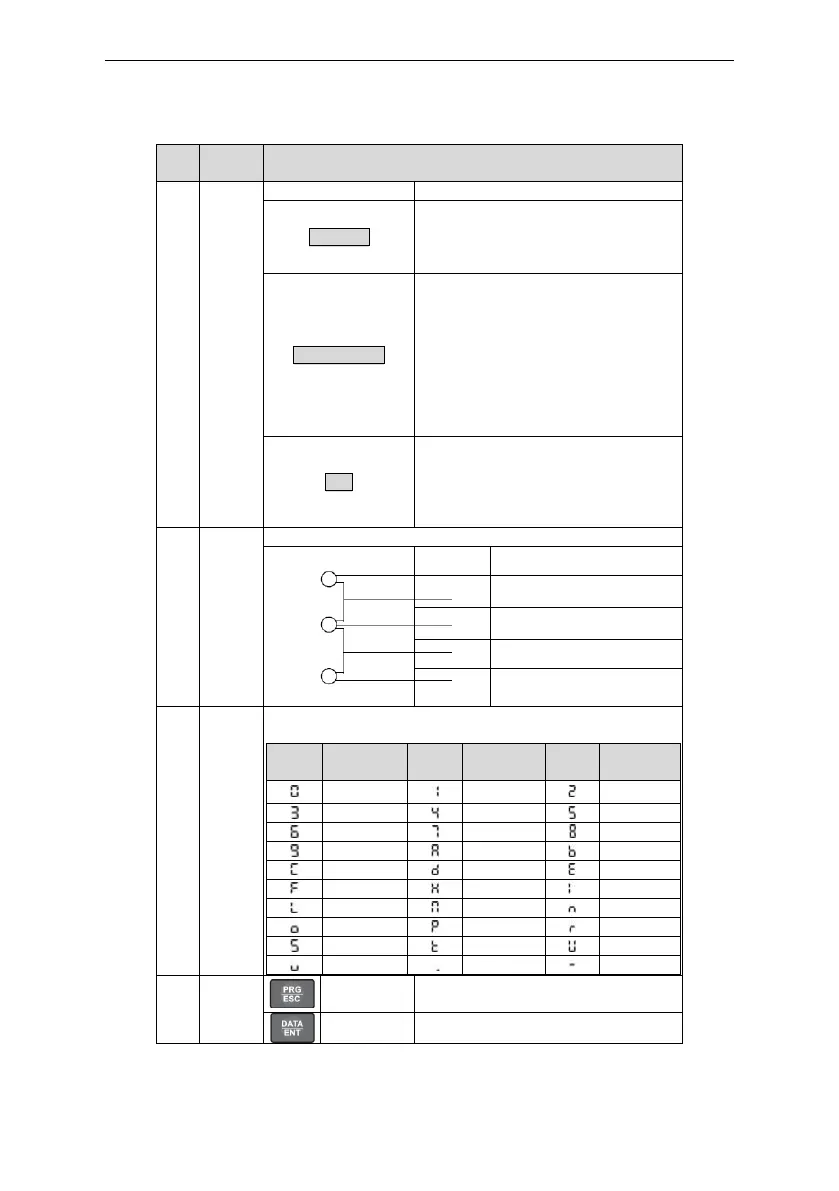

Astraada DRV-24 frequency inverters Keypad operation procedure
22
Seria
l No.
Name
Description
running state.
FWD/REV
FED/REV LED
LED off means the inverter is in the
forward rotation state; LED on means the
inverter is in the reverse rotation state
LOCAL/REMOT
LED for keypad operation, terminals
operation and remote communication
control
LED off means that the inverter is in the
keypad operation state; LED blinking
means the inverter is in the terminals
operation state; LED on means the
inverter is in the remote communication
control state.
TRIP
LED for faults
LED on when the inverter is in the fault
state; LED off in normal state; LED
blinking means the inverter is in the
pre-alarm state.
2
Unit LED
Mean the unit displayed currently
Hz
Frequency unit
RPM
Rotating speed unit
A
Current unit
%
Percentage
V
Voltage unit
3
Code
displayi
ng zone
5-figure LED display displays various monitoring data and alarm
code such as set frequency and output frequency.
Displaye
d word
Correspondin
g word
Displaye
d word
Correspondi
ng word
Displaye
d word
Correspondi
ng word
0
1
2
3
4
5
6
7
8
9
A
B
C
d
E
F
H
I
L
N
n
o
P
r
S
t
U
v
.
-
4
Buttons
Programmin
g key
Enter or escape from the first level menu
and remove the parameter quickly
Entry key
Enter the menu step-by-step
